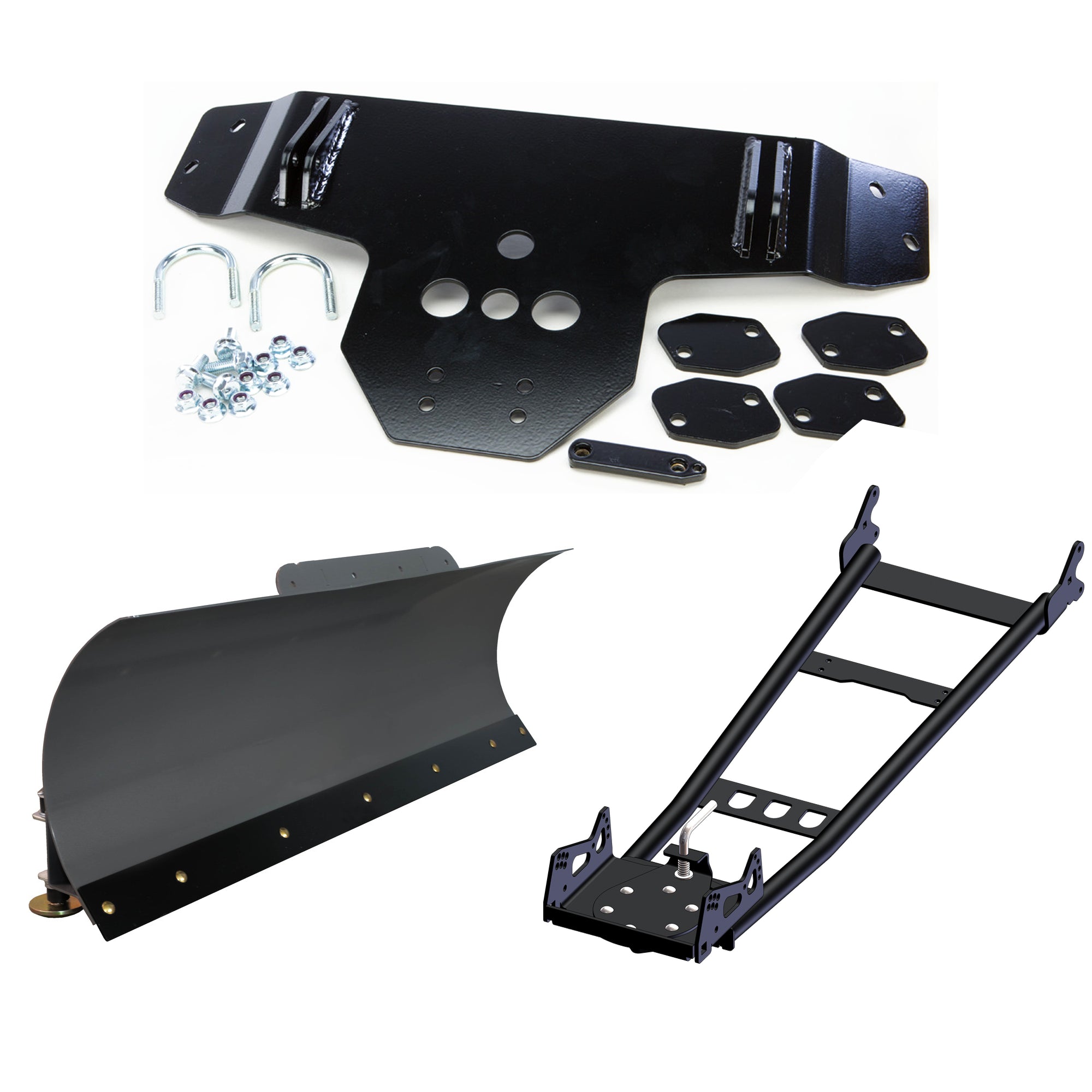

KFI UTV Mid-Mount Snow Plow Kit For Polaris RZR XP 4 900 2012-2013

NOTES:

We also recommend the heavy duty ATV Push Tube Kit #105955 (sold separately)

KFI Mid-Mount Kits are an all-in-one option to get your ride ready for the winter. Consult the description for kit details and sizing advisory.

Mount Description:

• Grade 50 steel construction.
• Shot-blasted and powder-coated black for supreme durability and a premium finish.
• Easy to install.
• Complete installation instructions and hardware included.
• Made in USA.

Mid-Mount Pushtube Description:

• Mid-Mount Design with 40-50% more lift height than our competitors Mid-Mount System.
• 100% MADE IN USA.
• Heavy Duty 1-1/2"" 11 Gage Steel Tubing.
• Heavy Duty 1/4"" Thick 1-1/2"" Diameter Grade 50 Pivot Bushings.
• 6"" Diameter POM Injection Molded Rotator Bushing.
• Easy-Pull Pin Blade angle adjustment.
• Multi-position Plow Lift Bracket.
• 6 five degree blade pitch adjustments.
• 5 blade angle positions that rotate the blade up to 25 Degrees.
• Unlike all other Plow competitors our tubes are metal bead blasted before they are powder coated for the best possible finish prep.
• Powder Coated Black for supreme durability.
• Complete installation instructions included.
• All mounting hardware included.
• Also Works with Cycle Country ATV Mid-Mounts.
• 2-Year KFI Warranty

Steel Blade Description:

• 100% MADE IN USA.
• Pushes snow straight ahead or to the sides up to 25 degrees.
• Added gussets for the wider width.
• The 66″ & 72″ blades include a 7″ high 2-ply top rubber flap.
• Measures 16″ Vertical blade face height with an approximate 21″ height with snow flap.
• Fully-adjustable blade skids with bolt-on brackets.
• Heavy duty 3″-diameter grade-50 steel skid plates.
• Blade Constructed of 11 ga steel.
• 3/16″ Grade 50 Ribbing for a strong bolt-up to the Swivel Tube.
• Unlike all other Plow competitors our Plows are metal bead blasted before they are powder coated Metallic Silver for supreme durability.
• 2-Sided 3/16″ x 3.00″ Grade 50 Steel Wear Bar.
• Wear Bar attached with Heavy Duty Grade 8 Bolts.
• 2-Year KFI Warranty.

Pro-Poly Blade Description:

• Includes a 7″ high 2-ply top rubber flap.
• 100% MADE IN USA.
• Dual Curvature face for supreme snow moving.
• Measures 21” Vertical blade face height with an approximate 7″ height with snow flap.
• Fully-adjustable blade skids with bolt-on brackets.
• Heavy duty 3″-diameter grade-50 steel skid plates.
• Flexible Heavy Duty Black Poly face.
• 3/16” Grade 50 Steel Rib and Frame construction.
• Unlike all other Plow competitors our Plows are metal bead blasted before they are Powder Coated Black for supreme durability.
• 2-Sided 3/16″ x 3.00″ Grade 50 Steel Wear Bar.
• Wear Bar attached with Heavy Duty Grade 8 Bolts.
• Complete installation instructions included.
• Works with KFI ATV & UTV Tubes.
• Includes Plow Markers.
• 2-Year KFI Warranty.

Brand: KFI
Part Numbers:
1x 105785
1x 105000
1x 105060

Fitment:

• 2014 Polaris RZR 4 900
• 2012-2013 Polaris RZR XP 4 900
• 2011-2013 Polaris RZR XP 900

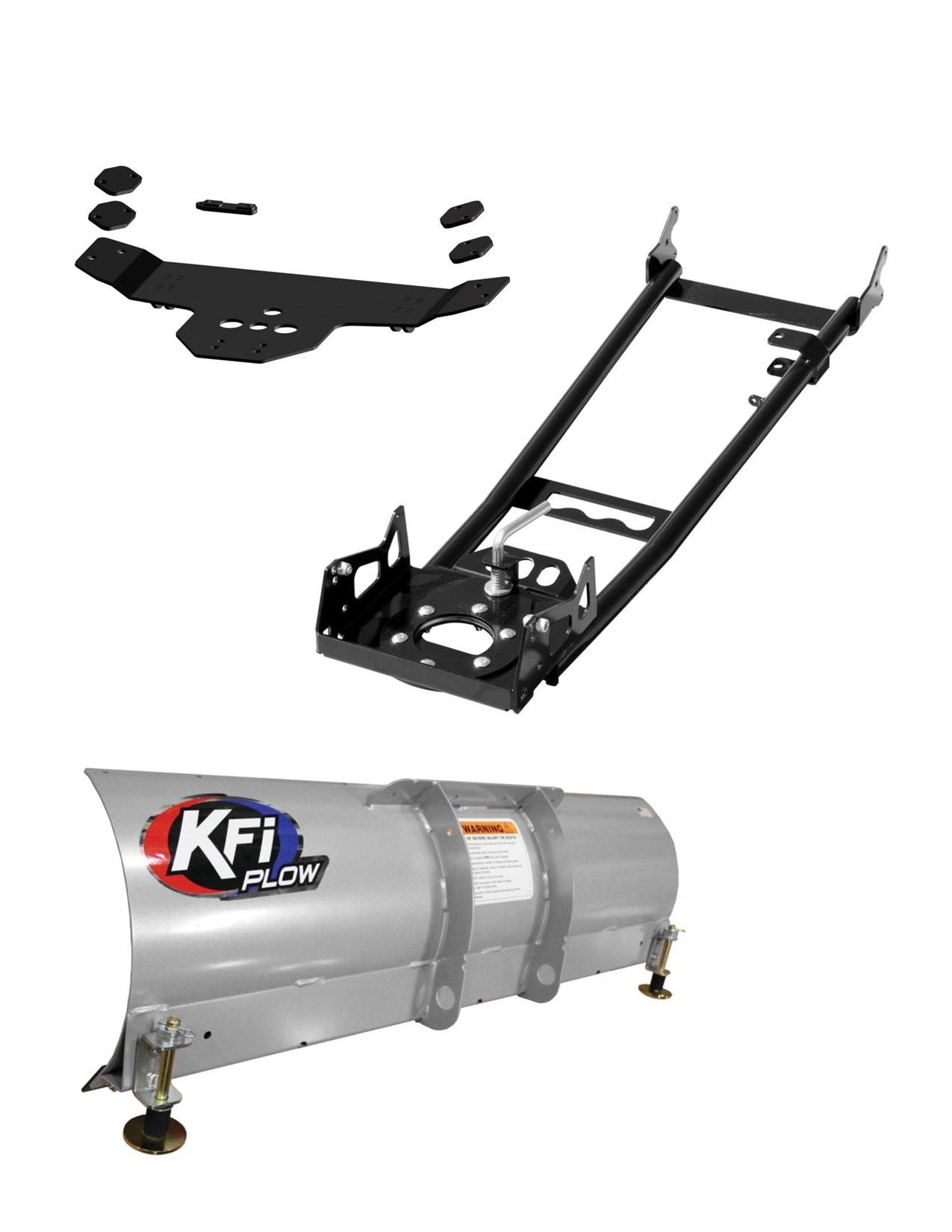

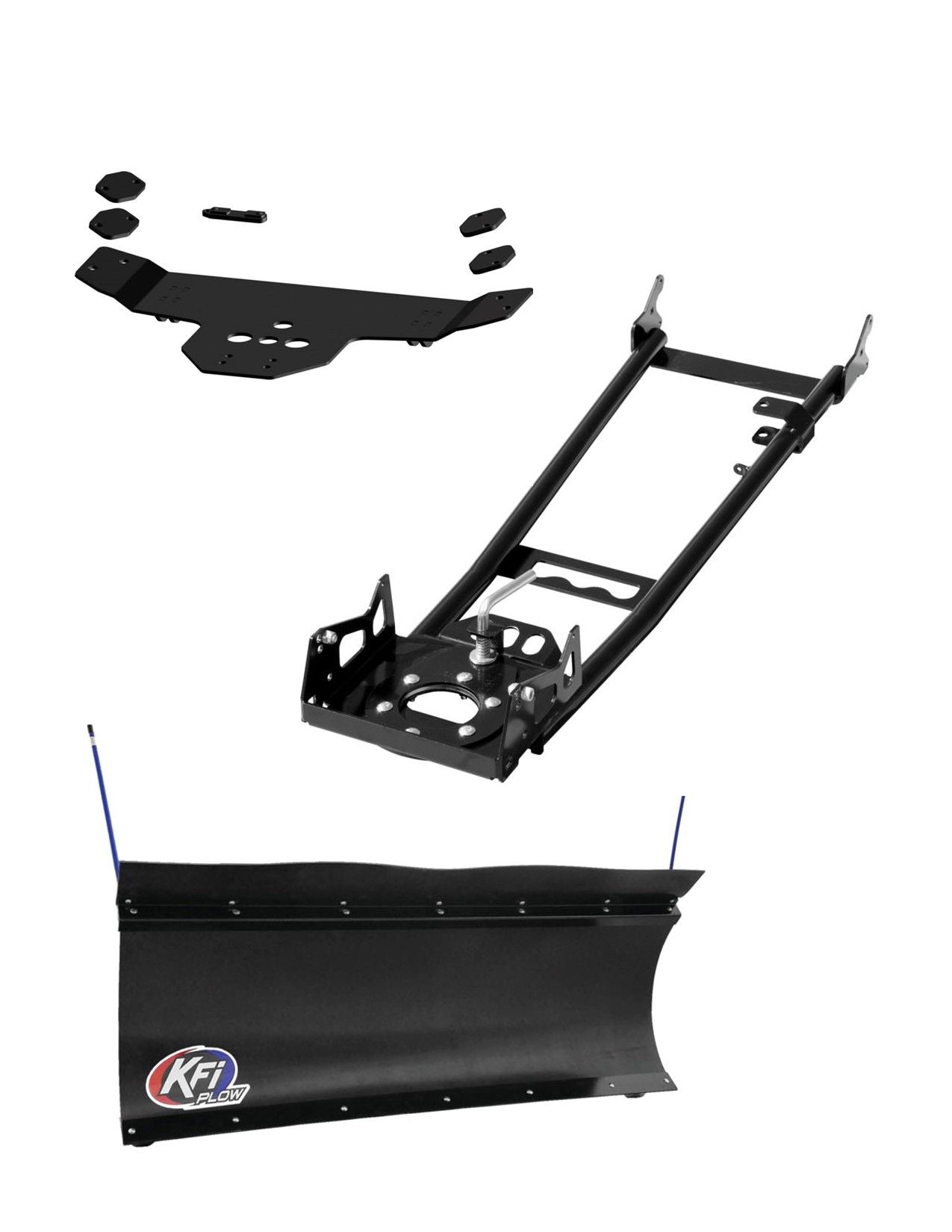

Note: Image is for reference only, actual product may vary slightly.
