KFI UTV Snow Plow Kit For Can-Am Defender Pro HD10 2020-2024

NOTES:

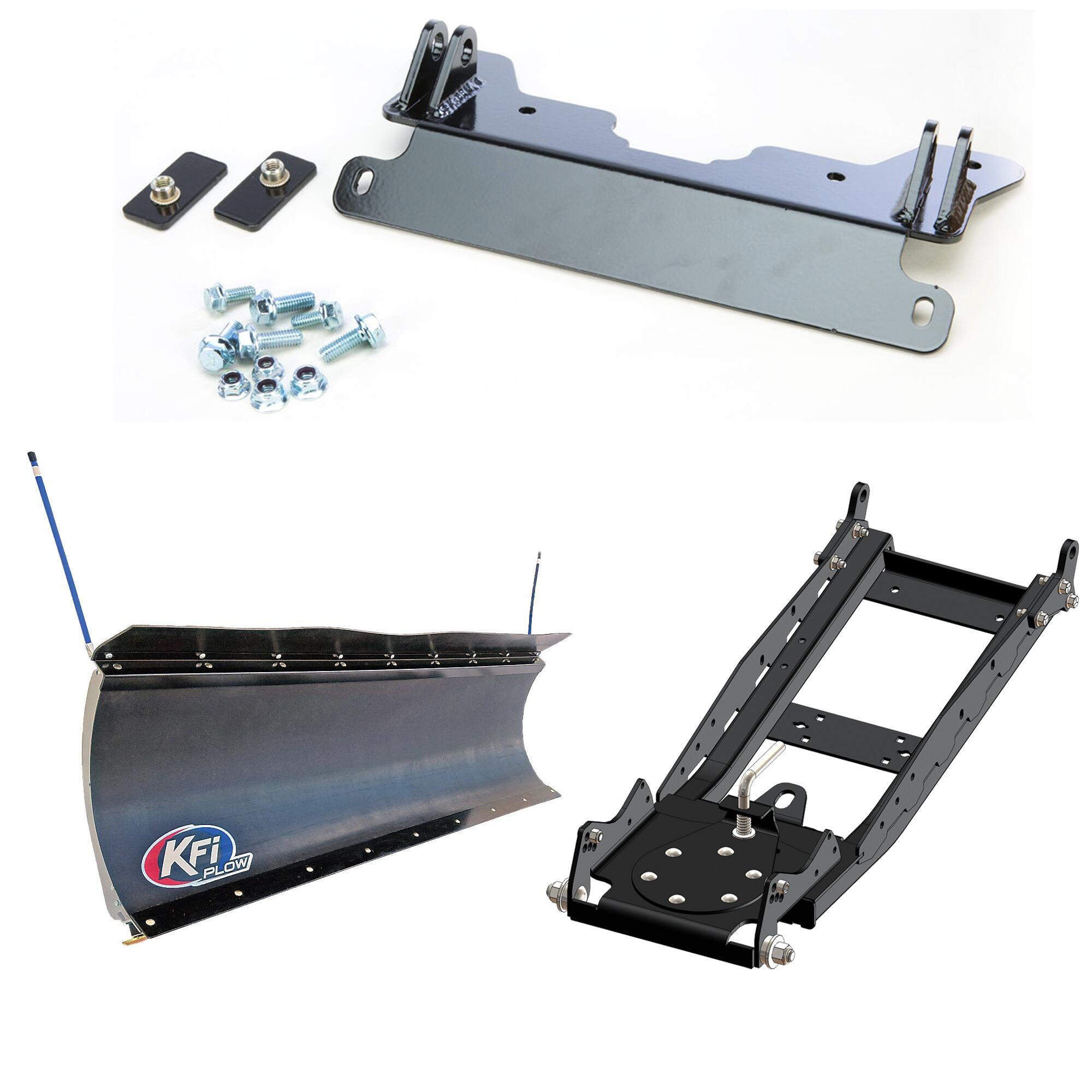

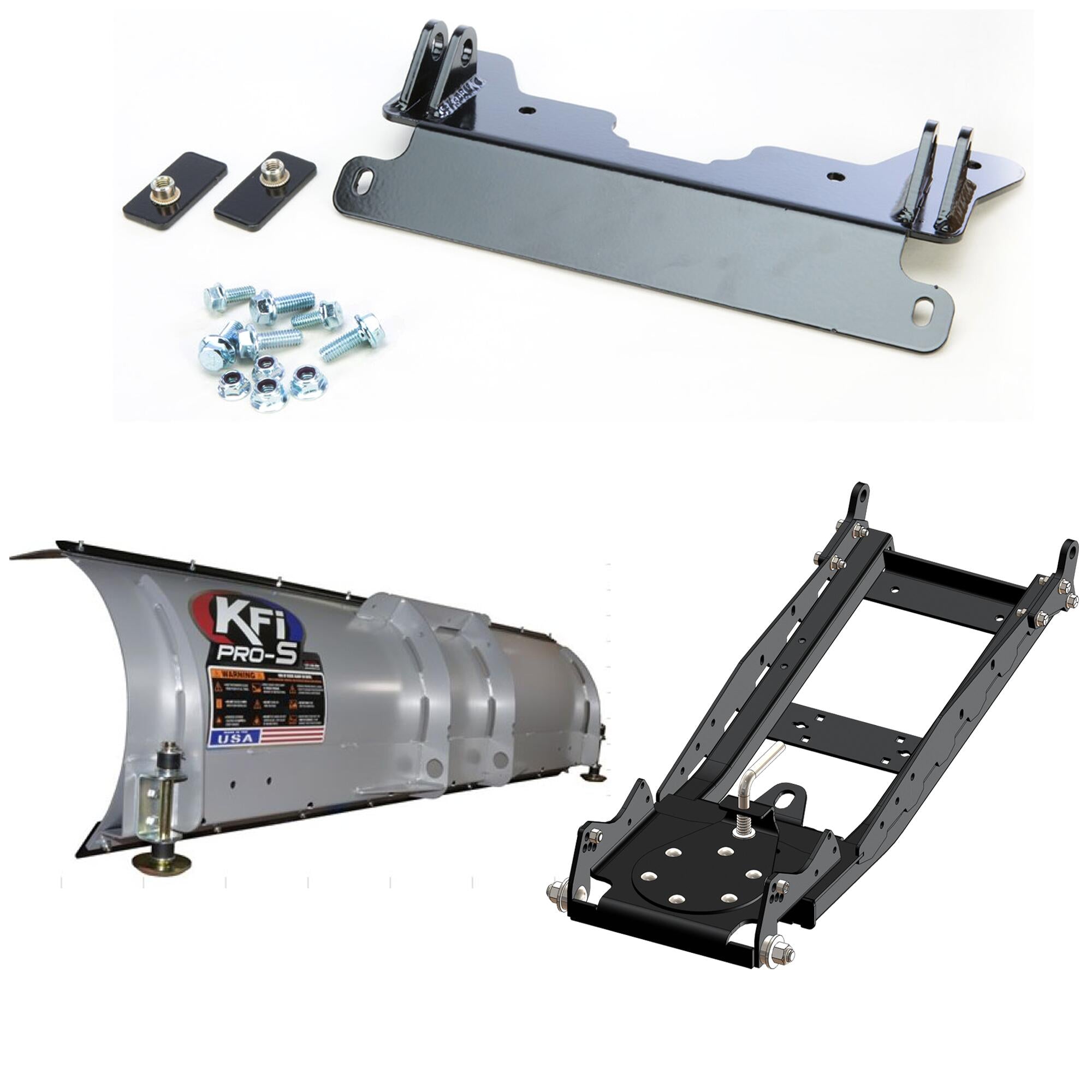

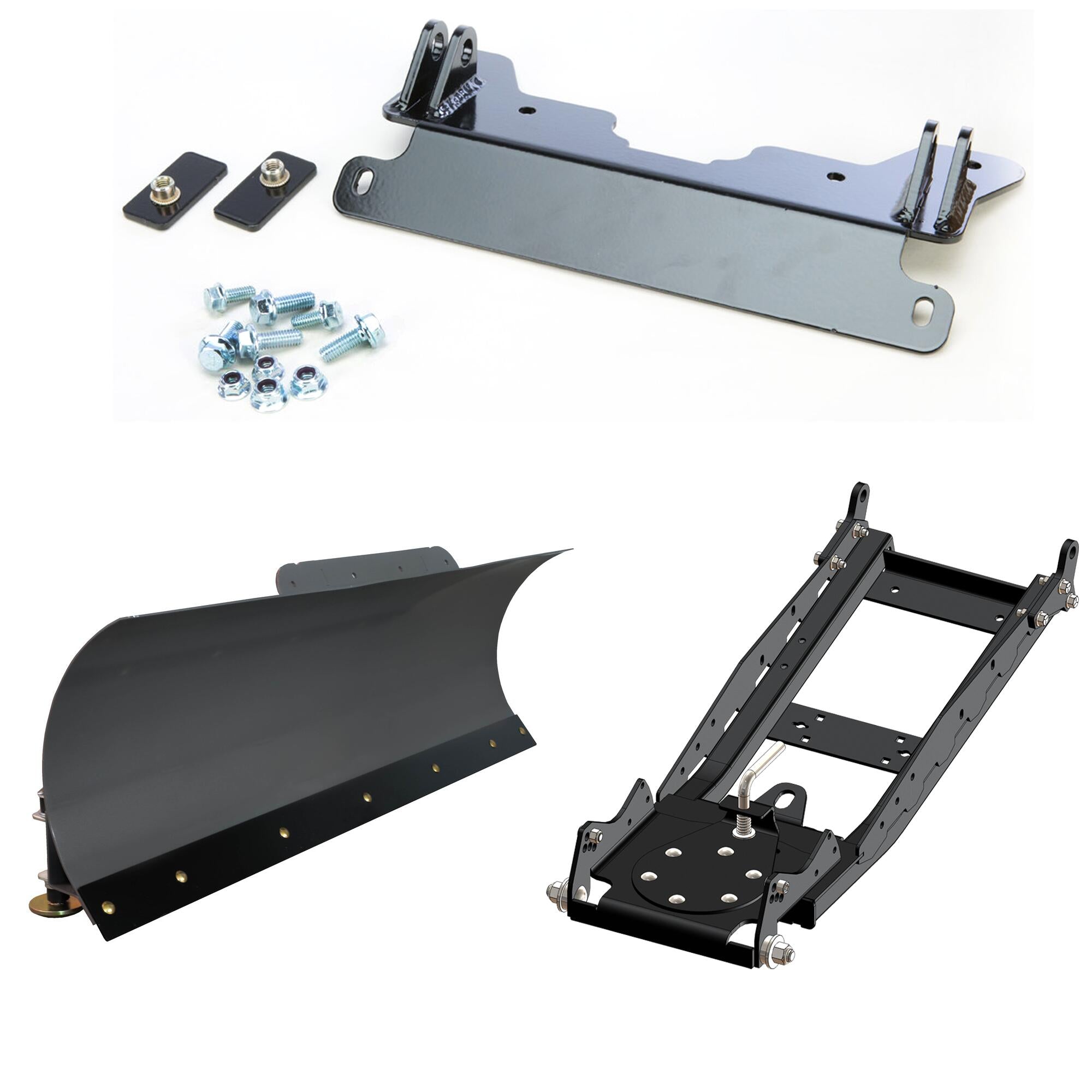

Introducing the ultimate snow plow kit: Conquer winter with ease using our high-performance snow plow kit. Designed for efficiency and durability, it effortlessly clears snow from driveways and pathways, ensuring hassle-free winters for years to come. We recommend measuring from outside to outside tire to ensure your blade is the proper size for your vehicle. Always size up from your measurement. Includes Mount, Push Tube, and Blade.

• Grade 50 steel construction.
• Shot-blasted and powder-coated black for supreme durability and a premium finish.
• Easy to install.
• Complete installation instructions and hardware included.
• Made in USA.

• Shot-blasted before powder coating in black.
• Six blade pitch adjustment in 5″ increments.
• Heavy-duty 1/4″ grade 50 x 1-1/2″ diameter pivot bushing.
• Uses two 5/8″ pins to mount.
• 3/8″ grade 50 attachment brackets.
• 30″ (or greater) lift height.
• Three position blade, up to 25″ to either side.
• Made in USA.

• 100% MADE IN USA.
• Pushes snow straight ahead or to the sides up to 25 degrees.
• Added gussets for the wider width.
• The 66″ & 72″ blades include a 7″ high 2-ply top rubber flap.
• Measures 16″ Vertical blade face height with an approximate 21″ height with snow flap.
• Fully-adjustable blade skids with bolt-on brackets.
• Heavy duty 3″-diameter grade-50 steel skid plates.
• Blade Constructed of 11 ga steel.
• 3/16″ Grade 50 Ribbing for a strong bolt-up to the Swivel Tube.
• Unlike all other Plow competitors our Plows are metal bead blasted before they are powder coated Metallic Silver for supreme durability.
• 2-Sided 3/16″ x 3.00″ Grade 50 Steel Wear Bar.
• Wear Bar attached with Heavy Duty Grade 8 Bolts.
• 2-Year KFI Warranty.

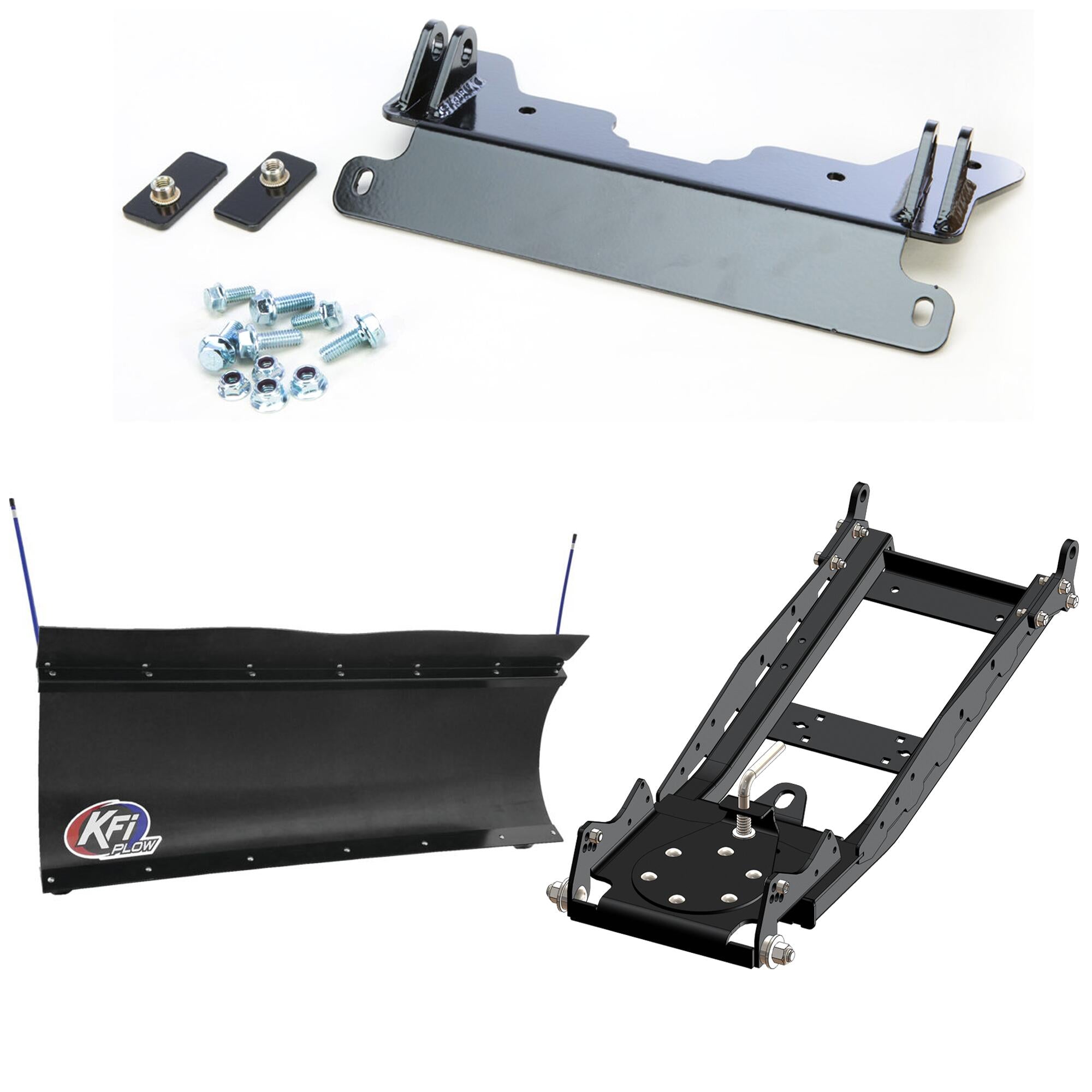

Pro-Poly Blade Description:

• Includes a 7″ high 2-ply top rubber flap.
• 100% MADE IN USA.
• Dual Curvature face for supreme snow moving.
• Measures 21″ Vertical blade face height with an approximate 7″ height with snow flap.
• Fully-adjustable blade skids with bolt-on brackets.
• Heavy duty 3″-diameter grade-50 steel skid plates.
• Flexible Heavy Duty Black Poly face.
• 3/16” Grade 50 Steel Rib and Frame construction.
• Unlike all other Plow competitors our Plows are metal bead blasted before they are Powder Coated Black for supreme durability.
• 2-Sided 3/16″ x 3.00″ Grade 50 Steel Wear Bar.
• Wear Bar attached with Heavy Duty Grade 8 Bolts.
• Complete installation instructions included.
• Works with KFI ATV & UTV Tubes.
• Includes Plow Markers.
• 2-Year KFI Warranty.

Brand: KFI
Mount Part Number: 105780
Pushtube Part Number: 106300

Fitment:

• 2016-2024 Can-Am Defender HD10 4X4
• 2016-2024 Can-Am Defender HD10 4x4 Cab Limited
• 2016-2024 Can-Am Defender HD10 4x4 Camo DPS
• 2016-2024 Can-Am Defender HD10 4x4 DPS
• 2016-2024 Can-Am Defender HD10 4x4 Limited DPS
• 2016-2024 Can-Am Defender HD10 4x4 Mossy Oak Hunting Edition DPS
• 2016-2024 Can-Am Defender HD10 4x4 XMR
• 2016-2024 Can-Am Defender HD10 4x4 XMR with Doors
• 2016-2024 Can-Am Defender HD10 4x4 XT Cab Camo DPS
• 2016-2024 Can-Am Defender HD10 4x4 XT Cab DPS
• 2016-2024 Can-Am Defender HD10 4x4 XT Camo DPS
• 2016-2024 Can-Am Defender HD10 4x4 XT DPS
• 2016-2024 Can-Am Defender HD10 4x4 XTP
• 2016-2024 Can-Am Defender HD10 6X6 Cab Limited
• 2016-2024 Can-Am Defender HD10 6x6 DPS
• 2016-2024 Can-Am Defender HD10 6x6 Limited
• 2016-2024 Can-Am Defender HD10 6x6 XT
• 2017-2021 Can-Am Defender HD5
• 2022-2024 Can-Am Defender HD7
• 2016-2021 Can-Am Defender HD8
• 2022-2024 Can-Am Defender HD9
• 2017-2024 Can-Am Defender Max HD10 4x4 Cab Limited
• 2017-2024 Can-Am Defender Max HD10 4x4 DPS
• 2017-2024 Can-Am Defender Max HD10 4x4 Limited DPS
• 2017-2024 Can-Am Defender Max HD10 4x4 Lone Star Cab DPS
• 2017-2024 Can-Am Defender Max HD10 4x4 Lone Star DPS
• 2019-2024 Can-Am Defender Max HD10 4x4 XMR DPS
• 2017-2024 Can-Am Defender Max HD10 4x4 XT Cab DPS
• 2017-2024 Can-Am Defender Max HD10 4x4 XT DPS
• 2020-2024 Can-Am Defender Pro HD10

Note: Image is for reference only, actual product may vary slightly.
