KFI UTV Snow Plow Kit For John Deere Gator XUV 825i 4X4 2011-2017

NOTES:

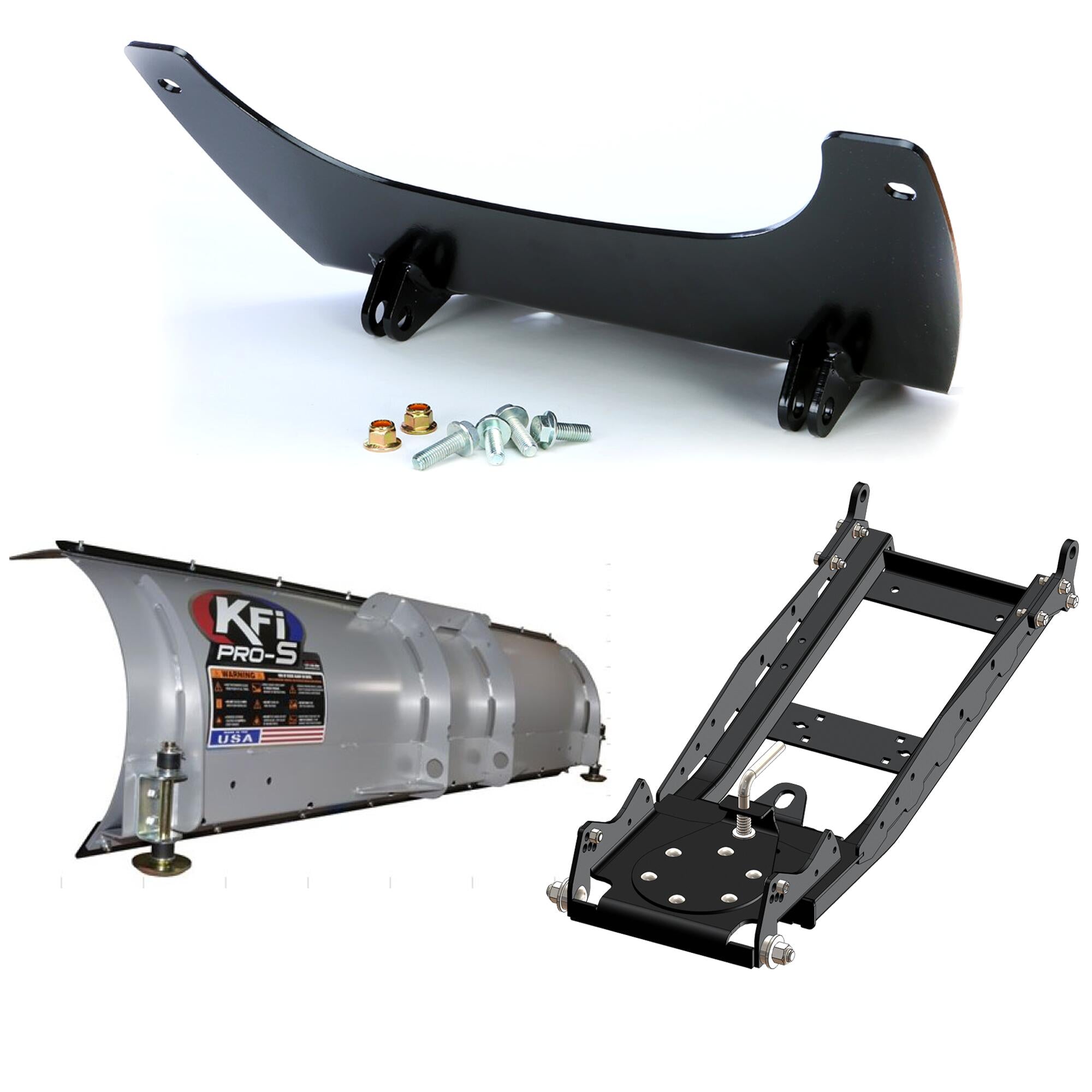

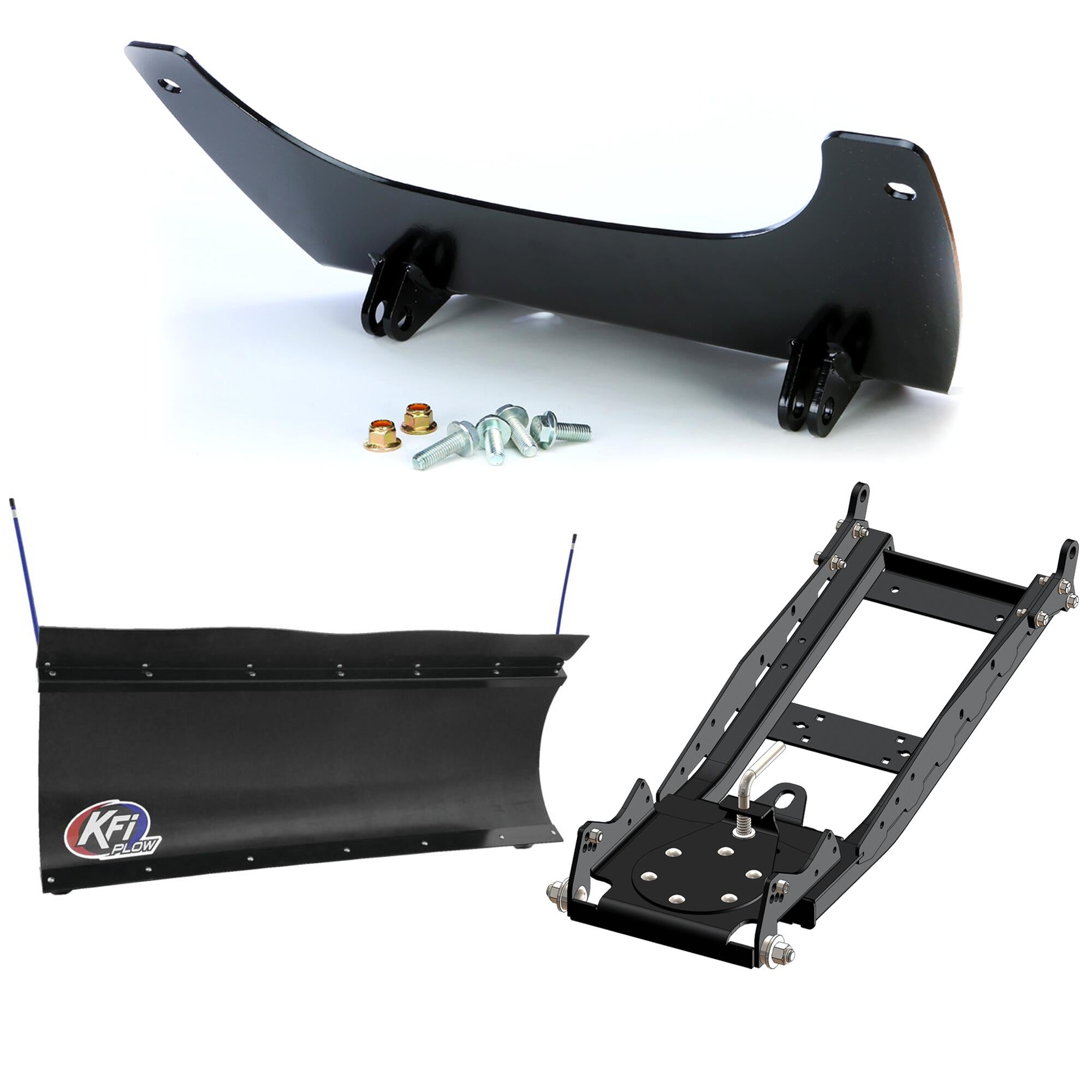

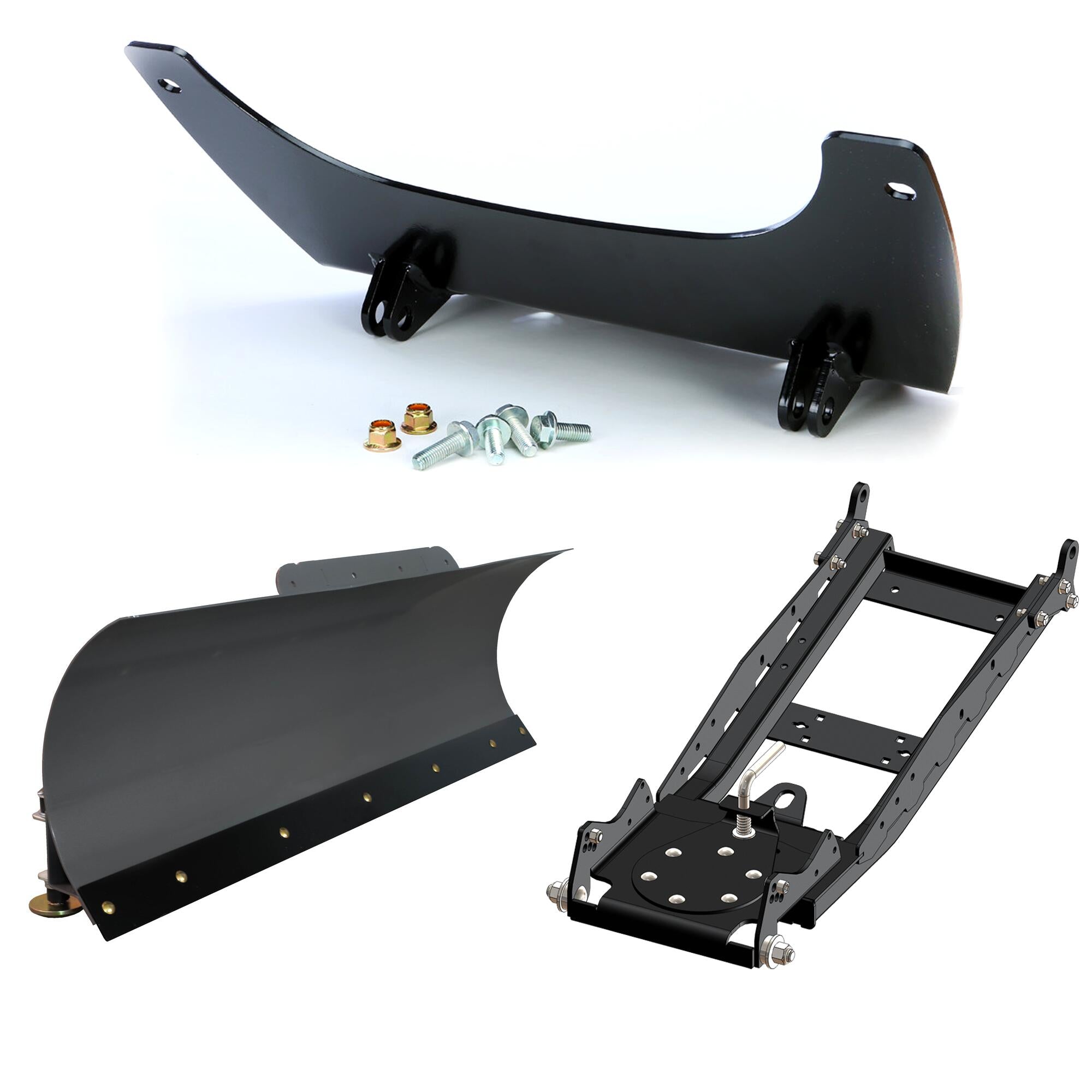

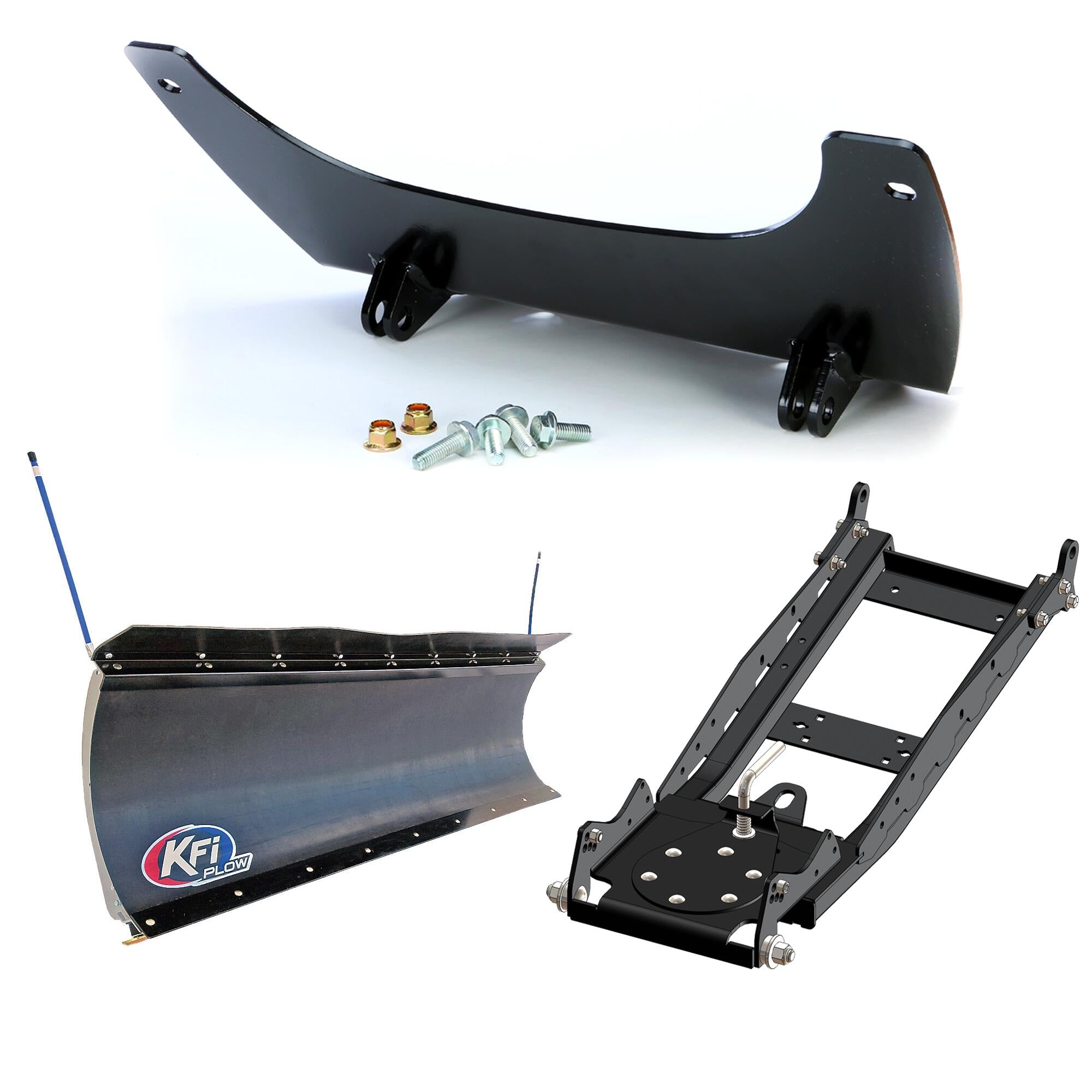

Introducing the ultimate snow plow kit: Conquer winter with ease using our high-performance snow plow kit. Designed for efficiency and durability, it effortlessly clears snow from driveways and pathways, ensuring hassle-free winters for years to come. We recommend measuring from outside to outside tire to ensure your blade is the proper size for your vehicle. Always size up from your measurement. Includes Mount, Push Tube, and Blade.

• Grade 50 steel construction.
• Shot-blasted and powder-coated black for supreme durability and a premium finish.
• Easy to install.
• Complete installation instructions and hardware included.
• Made in USA.

• Shot-blasted before powder coating in black.
• Six blade pitch adjustment in 5″ increments.
• Heavy-duty 1/4″ grade 50 x 1-1/2″ diameter pivot bushing.
• Uses two 5/8″ pins to mount.
• 3/8″ grade 50 attachment brackets.
• 30″ (or greater) lift height.
• Three position blade, up to 25″ to either side.
• Made in USA.

• 100% MADE IN USA.
• Pushes snow straight ahead or to the sides up to 25 degrees.
• Added gussets for the wider width.
• The 66″ & 72″ blades include a 7″ high 2-ply top rubber flap.
• Measures 16″ Vertical blade face height with an approximate 21″ height with snow flap.
• Fully-adjustable blade skids with bolt-on brackets.
• Heavy duty 3″-diameter grade-50 steel skid plates.
• Blade Constructed of 11 ga steel.
• 3/16″ Grade 50 Ribbing for a strong bolt-up to the Swivel Tube.
• Unlike all other Plow competitors our Plows are metal bead blasted before they are powder coated Metallic Silver for supreme durability.
• 2-Sided 3/16″ x 3.00″ Grade 50 Steel Wear Bar.
• Wear Bar attached with Heavy Duty Grade 8 Bolts.
• 2-Year KFI Warranty.

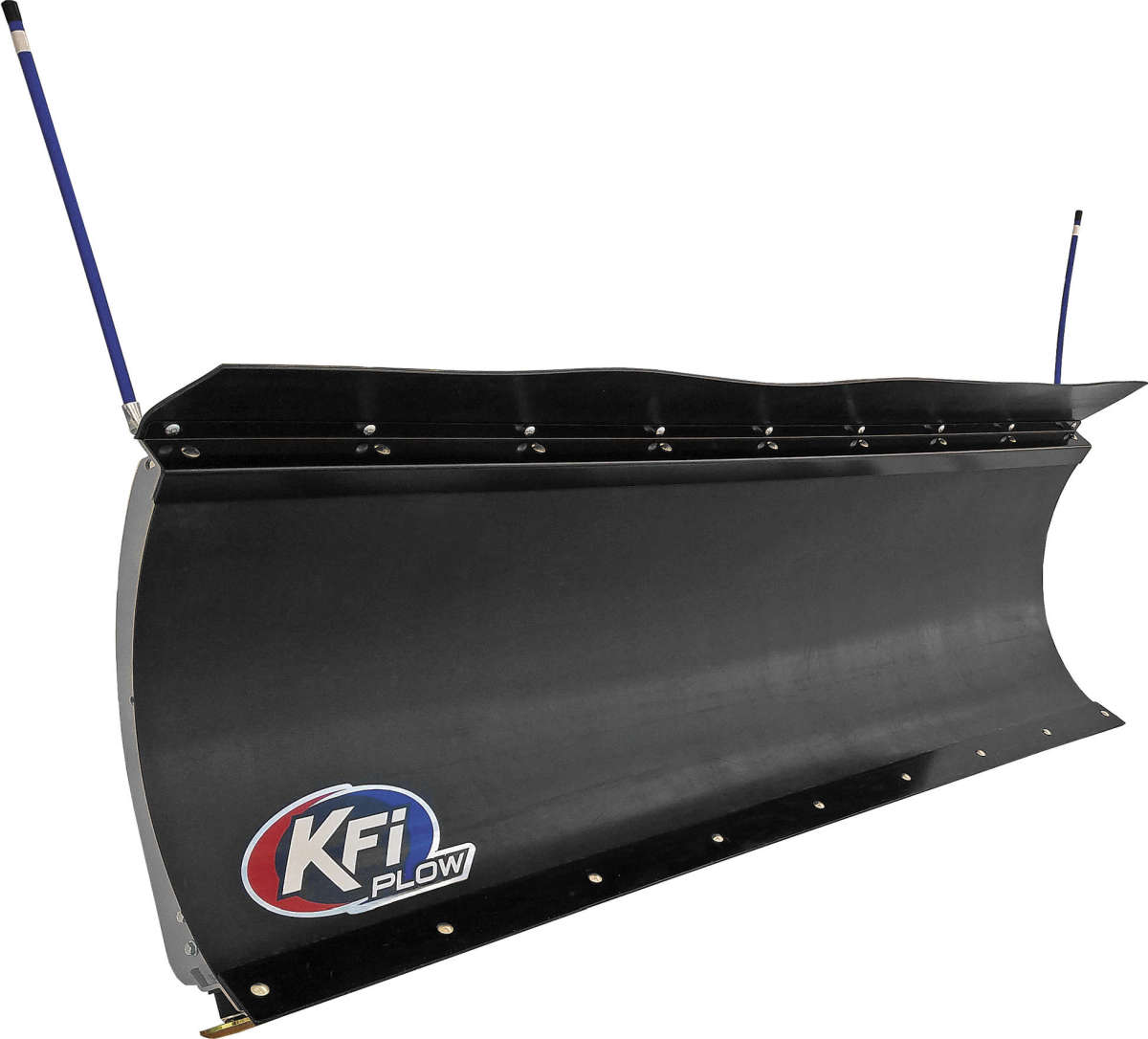

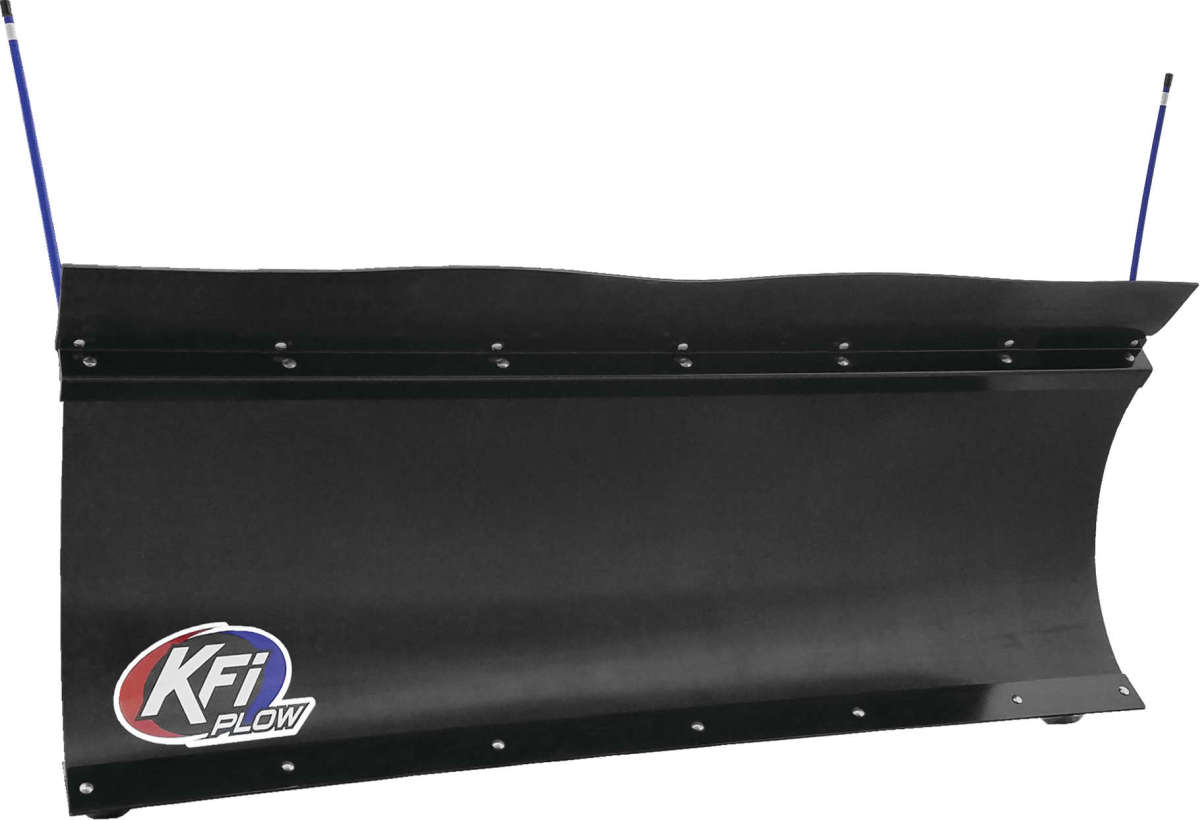

Pro-Poly Blade Description:

• Includes a 7″ high 2-ply top rubber flap.
• 100% MADE IN USA.
• Dual Curvature face for supreme snow moving.
• Measures 21″ Vertical blade face height with an approximate 7″ height with snow flap.
• Fully-adjustable blade skids with bolt-on brackets.
• Heavy duty 3″-diameter grade-50 steel skid plates.
• Flexible Heavy Duty Black Poly face.
• 3/16” Grade 50 Steel Rib and Frame construction.
• Unlike all other Plow competitors our Plows are metal bead blasted before they are Powder Coated Black for supreme durability.
• 2-Sided 3/16″ x 3.00″ Grade 50 Steel Wear Bar.
• Wear Bar attached with Heavy Duty Grade 8 Bolts.
• Complete installation instructions included.
• Works with KFI ATV & UTV Tubes.
• Includes Plow Markers.
• 2-Year KFI Warranty.

Brand: KFI
Mount Part Number: 105395
Pushtube Part Number: 106300

Fitment:

• 2018-2023 John Deere Gator HPX HPX615E
• 2018-2023 John Deere Gator HPX HPX815E
• 2011-2017 John Deere Gator XUV 625i 4X4
• 2018-2020 John Deere Gator XUV 825E 4X4
• 2011-2017 John Deere Gator XUV 825i 4X4
• 2014-2017 John Deere Gator XUV 825i 4x4 S4 4 Passenger
• 2018-2020 John Deere Gator XUV 825M 4x4 EPS
• 2018-2023 John Deere Gator XUV 825M 4x4 EPS S4 4 Passenger
• 2014-2017 John Deere Gator XUV 855D 4x4 S4 4 Passenger Diesel
• 2011-2017 John Deere Gator XUV 855D
• 2018-2020 John Deere Gator XUV 855E 4x4 Diesel
• 2018-2020 John Deere Gator XUV 855M 4x4 EPS Diesel
• 2018-2023 John Deere Gator XUV 855M 4x4 EPS S4 4 Passenger Diesel

Note: Image is for reference only, actual product may vary slightly.
