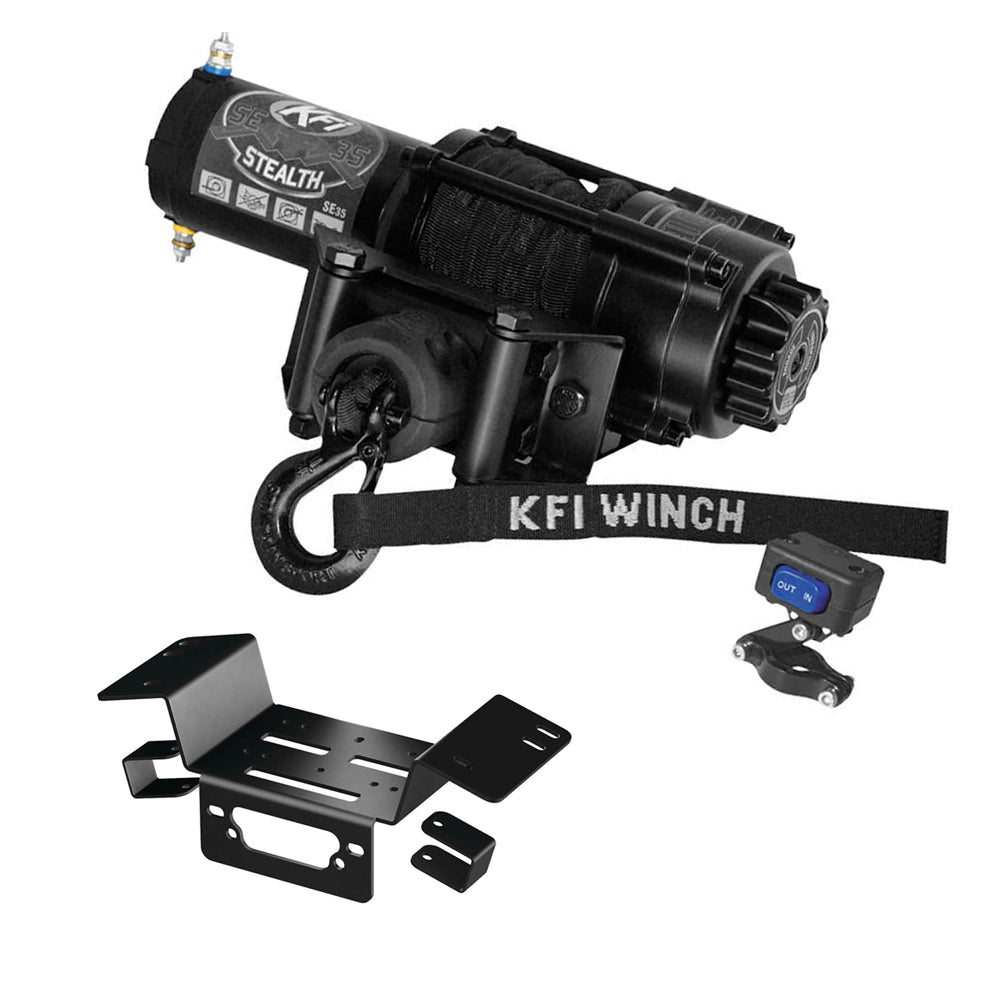

3500 lb KFI Assault Winch Combo Kit (M1) For 2014-19 Honda 700 and 700-4 Pioneer
Customer Ratings
3500 lb KFI Assault Winch Combo Kit (M1) For 2014-19 Honda 700 and 700-4 Pioneer
3500 lb KFI Assault Winch Combo Kit (M1) For 2014-19 Honda 700 and 700-4 Pioneer
Part #AS-35 and #101150
Fitment:
| Vehicle | A2000 A2500 A3000 AS-25 AS-35 |
U45-R2 AS-50XX | U5000w SE45w-R2 (WIDE) | AS-50X (ATV's will require ATV-MR) | AS-50XWX |
|---|---|---|---|---|---|
| Honda 700 and 700-4 Pioneer 2014-2019 | 101150 | 101150 | 101150 | 101150 | 101150 |
Winch Details:
Whether its on a winding trail, plowing snow or deep in the mud, a reliable winch is the most important accessory a rider can have. Equip your ATV, UTV or SxS with a KFI WINCH and feel confident you can pull yourself out of any situation. This 3500lb ATV Assault Series winch features Synthetic Cable, Cable Hook Stopper, a dynamic and mechanical braking system, Water Resistant seals to keep the elements out, a standard 4-hole mounting design and a heavy duty all metal turn clutch. It is also backed by a KFI 1-Year Limited Warranty. The KFI AS-35 Assault Winch comes with everything you need other than an ATV model specific winch mount. Everything shown is included along with detailed installation instructions and hardware to mount your winch to a model specific ATV winch mount.
Winch Includes:
50' Synthetic Cable with 5' protective sheath and end loop #SYN19-S50
Take control of your winch with the included Mini-Rocker Switch (ATV-MR) that comes with an adjustable bracket to mount it to your ATV's handle bars and allows you to control your winch with the touch of your finger without ever letting go of your handle bars.
Also included is a Handheld 14' Corded Remote (ATV-HR) for those situations when you need to control your winch from a distance or dismounted from your machine. This compact high quality remote offers a more reliable control than the other wireless options. Included is a socket plug and play wiring a system so that you can store your remote when not in use.
The all New Heavy Duty Electric Contactor (ATV-CONT) protects your ATV's electrical system and switches the power distribution of your winch that is controlled by your switches.
Included is our KFI Split Cable Hook Stopper (#ATV-SCHS) with the following benefits:
- Eliminates wear and tear on your rollers from the hook with can cause cable wear.
- Eliminates hook clatter from going down the trail.
- Protects the winch motor and gears from pulling the cable in too far and bottoming out on the rollers.
- Keeps tension on the hook to eliminate the cable becoming loose.
- Also has slits designed in it to work as an anti-kick back for the cable if your cable was to snap.
- Looks great.
| AS-35 Specifications | |
| Model | AS-35 ATV Series |
| Rated Line Pull | 3500 lbs. |
| Motor | 12V DC, 1.5 hp Permanent Magnet |
| Gear Ratio | 171:1 |
| Gear/Transmission | All-metal Planetary Gear Drive |
| Brake | Dynamic and Mechanical |
| Clutch (free spooling) | All Metal Cam Activated Freespool |
| Drum Size | 1.5" (D) x 3.15" (L) |
| Synthetic Cable | 3/16" (D) x 50' (L) Smoke color |
| Fairlead | Multi-directional POM Roller |
| Control | Deluxe Handlebar-Mounted Mini-Rocker Control Switch and a Heavy Duty Corded Remote Switch |
| Winch Dimensions | 12.97" L x 4.06" D x 4.2" H |
| Mount Plate | Fairlead Mount Only (A Model Specific Mount is necessary for your make and model ATV) |
| Mounting Bolt Pattern | 3.00" x 4.875" (4-Hole) |
| Recommended Battery | 12 Amp/hour minimum |
| Warranty | Limited 1 Year |
| Winch Weight | 24.8 lbs. (complete kit) |
Mount Specs:
- 100% MADE IN USA.
- Constructed of 3/16" steel.
- Unlike all other mount competitors, our mounts are metal bead blasted before they are powder coated for the best possible finish prep.
- Powder coated black for supreme durability.
- Very easy to install.
- Complete installation instructions included.
- All mounting hardware included.
- Satisfaction guaranteed.
Brand: KFI
Part Numbers:
1x AS-35
1x 101150
