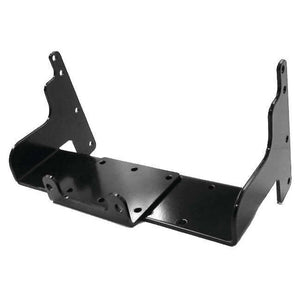

Brand New "KFI" Winch Mount for the following Polaris ATV's:

• See Generation 4 List Below

Designed to work with the following winches:

• KFI: ST17 / A2000 / A2500-R2 / A3000 / SE25 / SE35
• KFI: U45-R2 / SE45-R2
• KFI: AS-50 (requires purchase of ATV-MR)
• WARN:VRX 25 / VRX 25-S / VRX 35 / VRX 35-S
  • Requires Roller Fairlead Bracket #101715
• WARN:AXON 35 / AXON 35-S / AXON 45RC
  • Requires Roller Fairlead Bracket #101715
• WARN:A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce
• WARN:RT15 / RT25 / RT30 / XT15 / XT25 / XT30
• WARN:Vantage 2000-3000lbs / Provantage 2500-3500lbs
• RAMSEY : ATV2500 / ATV3000
• SUPERWINCH : Terra25 / Terra35 / A3500 / LT2000 / LT2500 / LT3000 / LT4000ATV
• MILE MARKER :PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
• MASTER LOCK :1500lbs #2955AT
  • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
  • Requires rrilling Two 3/8" holes in plate to fit this winch.
• CYCLE COUNTRY :Work Power 1500 and 2500 / Powermax 2500, 3500
• BADLAND: 2-Hole Winches :68146 / 61258 / 61297 / 61840
• BADLAND: Standard Winches
• CHAMPION : 2-Hole Winches : 10028 / 10032 / 12001 / 12002 / 12003 / 12004 / 13001 / 13005 / 100127 / C20049 / C20051 / C20249 / C30045 / C30145
• CHAMPION : Standard Winches : 10013 / 10018 / 10020 / 10024 / 12053 / 12503 / 12551 / 13004 / 13050 / 13502 / 14001 / 14051 / 14061 / 14560 / 100129 / 100218 / 100243 / 100335 / C10014 / 13060 / 13501
• KEEPER CORP. TRAKKER :KT2500 / KT3000 / KT2500C / KT3000C
• KEEPER CORP. TRAKKER :KT2000
  • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
• SMITTYBILT :XRC 2.0
  • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
  • Listed models come with incorrect ATV roller fairleads.
• SMITTYBILT :XRC 3.0 / XRC 4.0
• XGEAR: X3000 / X4000
  • 4-Hole Standard (3.00" x 4.875" bolt pattern)
• VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Standard ONLY)
  • 4-Hole Standard 3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)
• Traveller:1078088 / 1078302
  • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
• Possibly many others with the below standard mounting patterns, call to confirm.
  • 4-Hole Standard (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)
  • 2-Hole (3.10" with rollers that are 4.875" bolt pattern)
• QUADBOSS: RP25 / RP35

Specifications:

• 100% MADE IN USA.
• Constructed of 3/16" steel.
• Unlike all other mount competitors our mounts are metal bead blasted before they are powder coated for the best possible finish prep.
• Powder coated black for supreme durability.
• Does NOT work with Polaris OEM Brush Guard or Double Tube Bumper.
• Works with the new OEM Deluxe Brushguard #2874785-067.
• Complete installation instructions included.
• All mounting hardware included.
• Satisfaction guaranteed.
• Roller fairlead and winch not included.

GENERATION 4 CHASSIS

• 1995 Model Year
  - Xplorer 400 4x4
• 1996 Model Year
  - Sportsman 500 4x4
  - Xplorer 300 4x4
  - Xplorer 400 4x4
• 1997 Model Year
  - Sportsman 500 4x4
  - Xplorer 300 4x4
  - Xplorer 400 4x4
  - Xplorer 500 4x4
  - Xpress 400 4x4
• 1998 Model Year
  - Sportsman 500 4x4
  - Sportsman 335 4x4
  - Xplorer 300 4x4
  - Xplorer 400 4x4
  - Diesel 4x4
• 1999 Model Year
  - Sportsman 500 4x4
  - Sportsman 335 4x4
  - Sportsman 500 6x6
  - Xplorer 300 4x4
  - Xplorer 400 4x4
  - Magnum 500 4x4
  - Diesel 4x4
• 2000 Model Year
  - Sportsman 500 4x4
  - Sportsman 500 Remington SE 4x4
  - Sportsman 335 4x4
  - Sportsman 500 6x6
  - Magnum 500 4x4
  - Magnum 325 4x4
  - Xpedition 325 4x4
  - Xpedition 425 4x4
  - Xplorer 400 4x4
  - Xplorer 400 2x4
  - Diesel 4x4
• 2001 Model Year
  - Sportsman 500 4x4
  - Sportsman 500 H.O. 4x4
  - Sportsman 500 H.O. Ducks Unlimited SE 4x4
  - Sportsman 500 H.O. Remington SE 4x4
  - Sportsman 400 4x4
  - Sportsman 500 6x6
  - Magnum 325 4x4
  - Magnum 500 4x4
  - Xpedition 325 4x4
  - Xpedition 425 4x4
  - Xplorer 400 4x4
  - Xplorer 400 2x4
  - Diesel 4x4
• 2002 Model Year
  - Sportsman 500 H.O. 4x4
  - Sportsman 500 H.O. Ducks Unlimited SE 4x4
  - Sportsman 500 H.O. Remington SE 4x4
  - Sportsman 400 4x4
  - Sportsman 500 6x6
  - Magnum 500 4x4
  - Magnum 500 RMK 2x4
  - Magnum 325 4x4
  - Xpedition 425 4x4
  - Xpedition 325 4x4
  - Xplorer 400 4x4
  - Xplorer 400 2x4
  - Diesel 4x4
  - PVT 4x4
  - PVT 6x6
• 2003 Model Year
  - Sportsman 500 H.O. 4x4
  - Sportsman 500 H.O. Mossy Oak 4x4
  - Sportsman 400 4x4
  - Sportsman 500 6x6
  - Magnum 330 4x4
  - Magnum 330 4x4 Mossy Oak
  - Xpedition 425 4x4
  - PVT 4x4
  - PVT 6x6
• 2004 Model Year
  - Sportsman 500 6x6
  - Magnum 330 4x4
  - ATP 500 H.O.
  - ATP 330
• 2005 Model Year
  - Sportsman 500 6x6
  - Magnum 330 4x4
  - ATP 500 H.O.
  - ATP 330
• 2006 Model Year
  - Sportsman 500 6x6
  - Magnum 330 4x4
• 2007-2008 Model Year
  - Sportsman 500 6x6
