KFI Products Snow Plow Kit For CF-Moto CFORCE 500 2022-2023

Don't Let Snow Slow You Down!

Are you tired of spending hours shoveling snow in freezing temperatures? With the KFI snow plow kit, clearing snow has never been easier. Designed specifically for ATVs, this kit is perfect for homeowners, businesses, and outdoor enthusiasts who want to tackle winter weather head-on. Crafted from high-quality materials, it can withstand the harshest winter conditions without compromising performance.

Don't let snowstorms hinder your productivity or ruin your outdoor adventures. Say goodbye to shovels and hello to effortless snow clearing with our top-notch ATV Snow Plow Kit!

106490 Mount Description

• 100% MADE IN USA
• Mid-mount System
• Plate constructed from 3/16 inch grade 50 steel
• All pin tabs are constructed from 1/4 inch thick grade 50 steel
• All plow tabs are tapered to help reduce hang-ups while trail riding
• Powder coated black for supreme durability
• Complete installation instructions included
• All mounting hardware included

Pushtube Description:

• Mid-Mount Design with 40-50% more lift height than our competitors Mid-Mount System
• 100% MADE IN USA
• Heavy Duty 1-1/2" 11 Gage Steel Tubing
• Heavy Duty 1/4" Thick 1-1/2" Diameter Grade 50 Pivot Bushings
• 6" Diameter POM Injection Molded Rotator Bushing
• Easy-Pull Pin Blade angle adjustment
• Multi-position Plow Lift Bracket
• 6 five degree blade pitch adjustments
• 5 blade angle positions that rotate the blade up to 25 Degrees
• Unlike all other Plow competitors our tubes are metal bead blasted before they are powder coated for the best possible finish prep.
• Powder Coated Black for supreme durability
• Complete installation instructions included
• All mounting hardware included
• Also Works with Cycle Country ATV Mid-Mounts
• 2-Year KFI Warranty

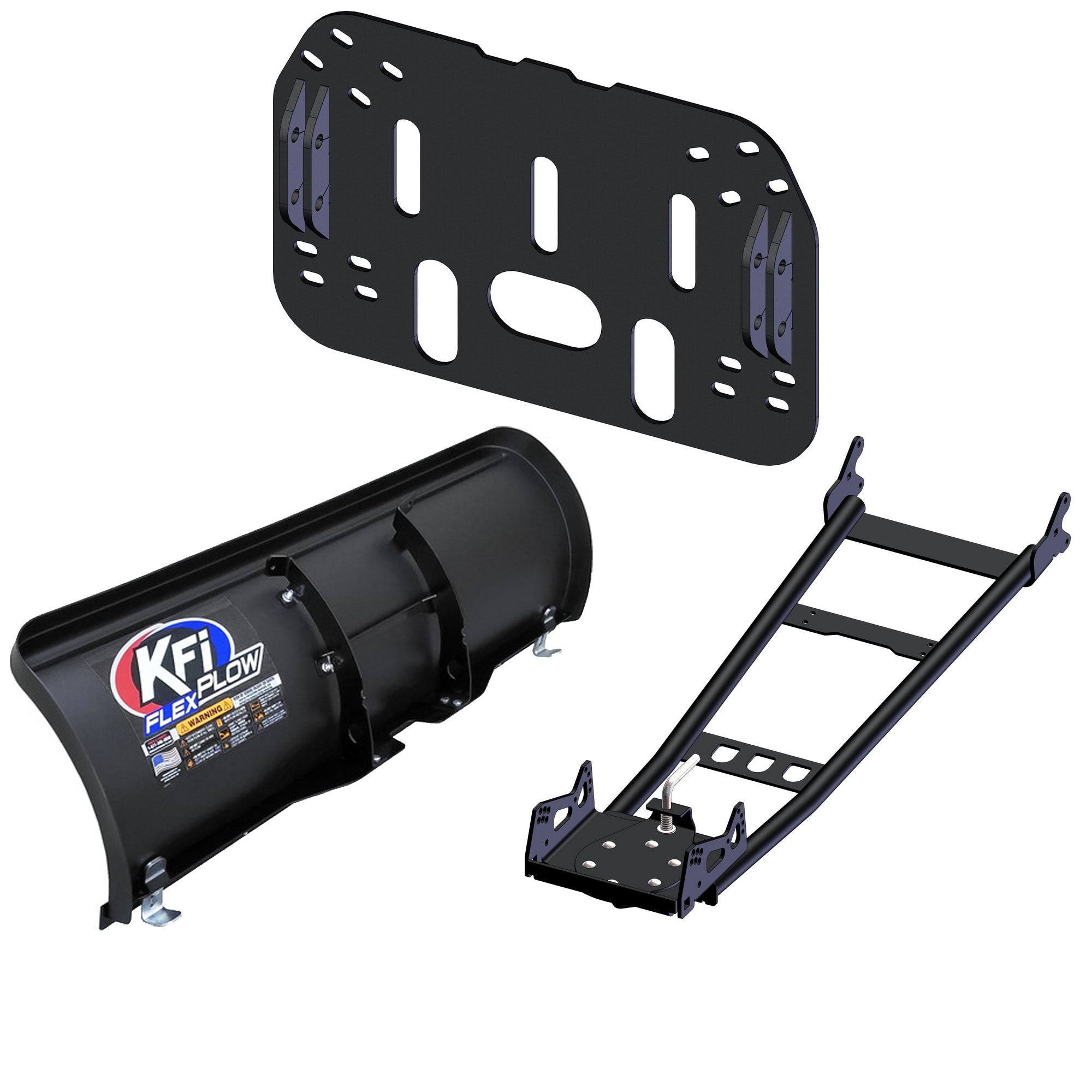

Flex Plow Blade Description:

The flex blade is light in weight. Weighing only 25 pounds compared to the lightest 48" steel blade (57 Pounds) it is ideal for light snow removal and usually only recommended for lower CC machines.

• Rolls snow off to the side, great for continuous plowing of long driveways and paths
• 100% MADE IN USA
• Lightweight Blade fully assembled at 25 lbs.
• 50 inch width Flexible Black Poly Vacuum formed face
• 3/16 inch and 10 gauge Grade 50 Steel Rib and Frame construction
• Shot Blasted and Powder Coated Black
• 2-Sided 3/16 inch Grade 50 Steel wear bar
• 17 inch Vertical blade face height
• Works with current KFI No.105000 or 105590 ATV Tube System
• 1/4 inch thick Adjustable Skids
• Complete installation instructions included
• All mounting hardware included
• 1-Year KFI Warranty

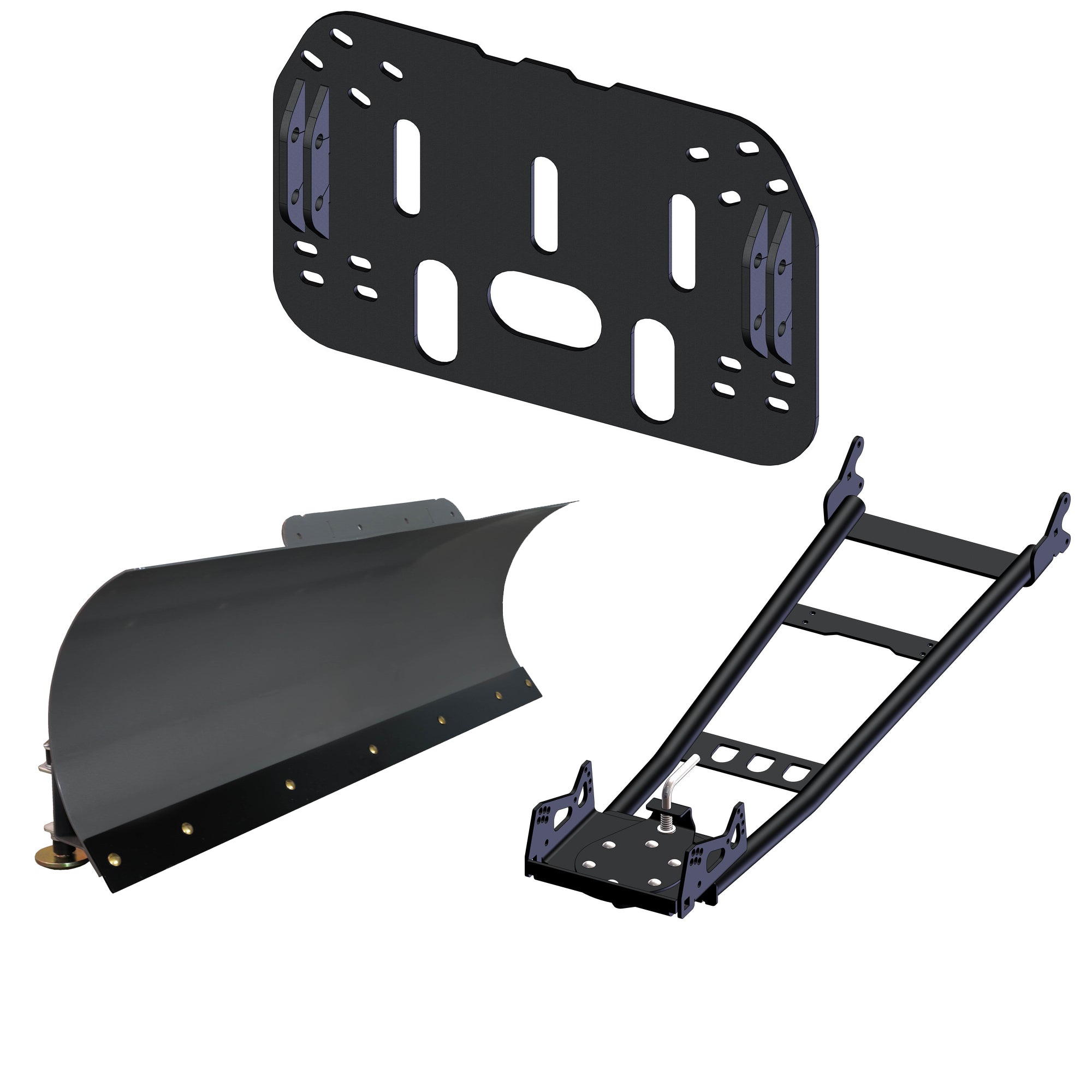

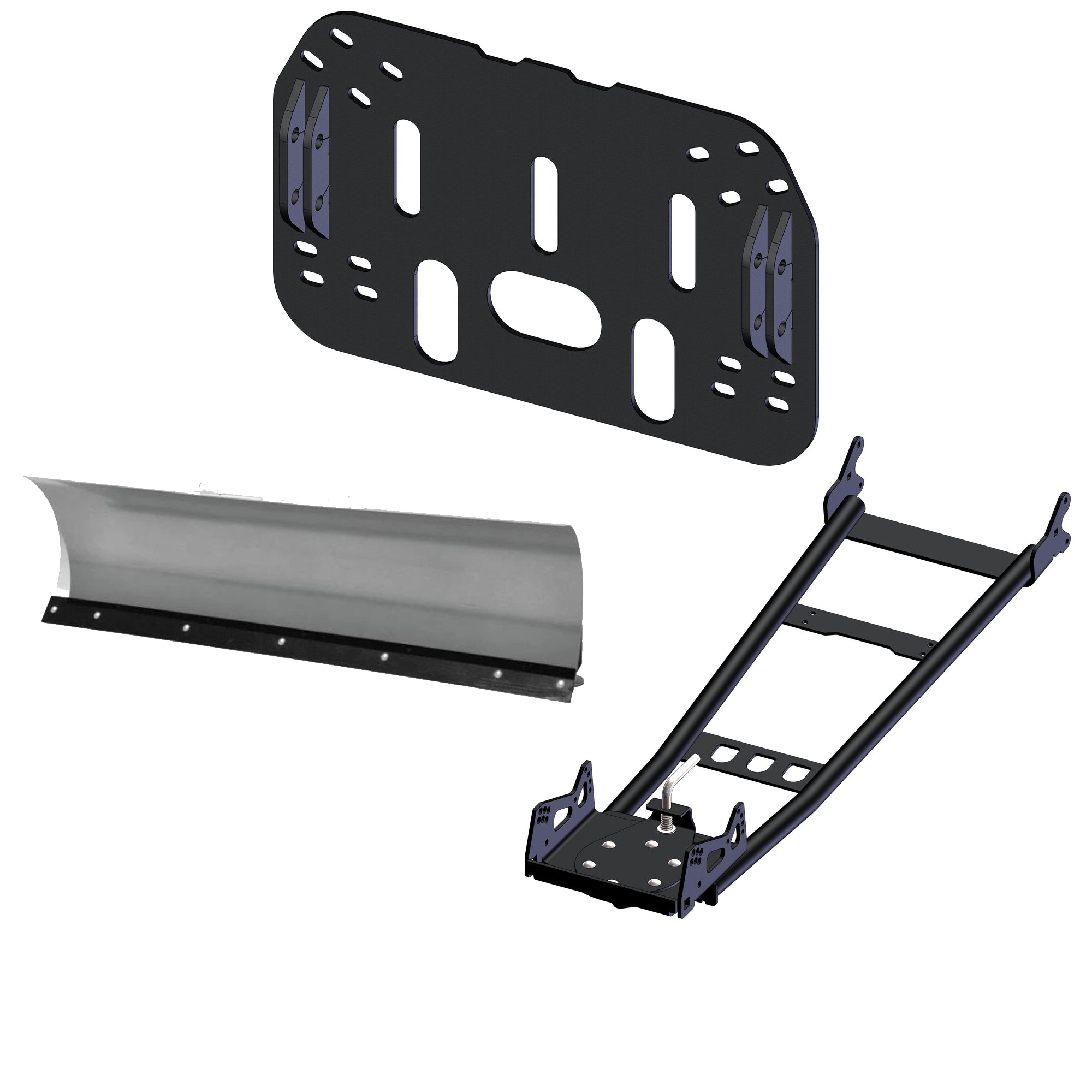

Straight Plow Blade Description:

• 100% MADE IN USA
• Pushes snow straight ahead or to the sides up to 25 degrees
• Added gussets for the wider width
• The 66" & 72" blades include a 7" high 2-ply top rubber flap
• Measures 16 inch Vertical blade face height with an approximate 21 inch height with snow flap
• Fully-adjustable blade skids with bolt-on brackets
• Heavy duty 3"-diameter grade-50 steel skid plates
• Blade Constructed of 11 ga steel
• 3/16" Grade 50 Ribbing for a strong bolt-up to the Swivel Tube
• Unlike all other Plow competitors our Plows are metal bead blasted before they are powder coated Metallic Silver for supreme durability
• 2-Sided 3/16" x 3.00" Grade 50 Steel Wear Bar
• Wear Bar attached with Heavy Duty Grade 8 Bolts
• 48" ATV Pro-S Series Plow Blade (Straight) - #105048 - 57 lbs.
• 54" ATV Pro-S Series Plow Blade (Straight) - #105054 - 63 lbs.
• 60" ATV Pro-S Series Plow Blade (Straight) - #105060 - 75 lbs.
• 2-Year KFI Warranty

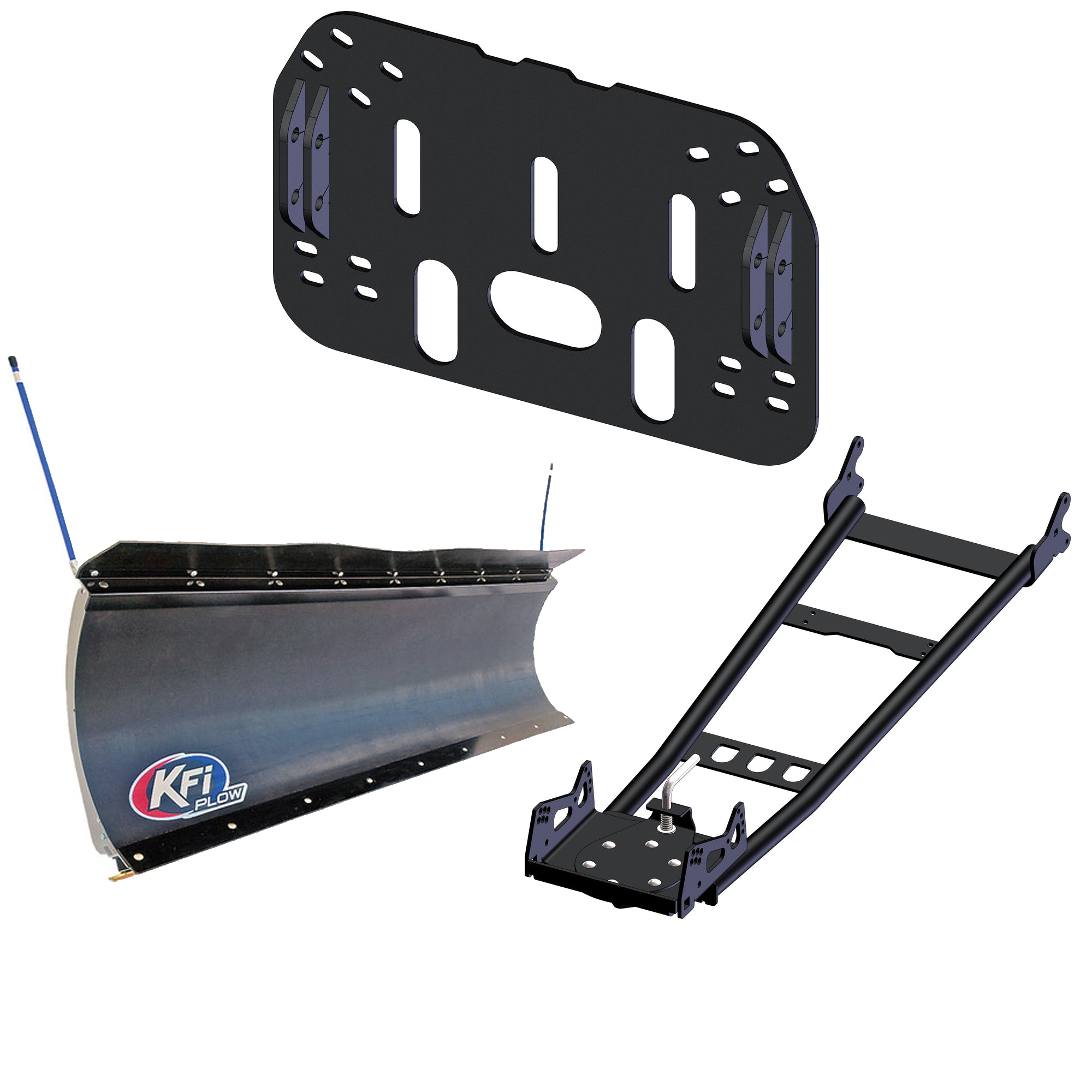

Poly Plow Blade Description:

• Includes a 7" high 2-ply top rubber flap
• 100% MADE IN USA
• Dual Curvature face for supreme snow moving
• Measures 21 inch Vertical blade face height with an approximate 27 inch height with snow flap
• Fully-adjustable blade skids with bolt-on brackets
• Heavy duty 3"-diameter grade-50 steel skid plates
• Flexible Heavy Duty Black Poly face
• 3/16 inch Grade 50 Steel Rib and Frame construction
• Unlike all other Plow competitors our Plows are metal bead blasted before they are Powder Coated Black for supreme durability
• 2-Sided 3/16" x 3.00" Grade 50 Steel Wear Bar
• Wear Bar attached with Heavy Duty Grade 8 Bolts
• Complete installation instructions included
• Works with KFI ATV & UTV Tubes
• Includes Plow Markers
• Extra durable blade fully assembled at 81 lbs.
• 2-Year KFI Warranty

Fitment:

• 2022-2024 CF-Moto CFORCE 500 G2
