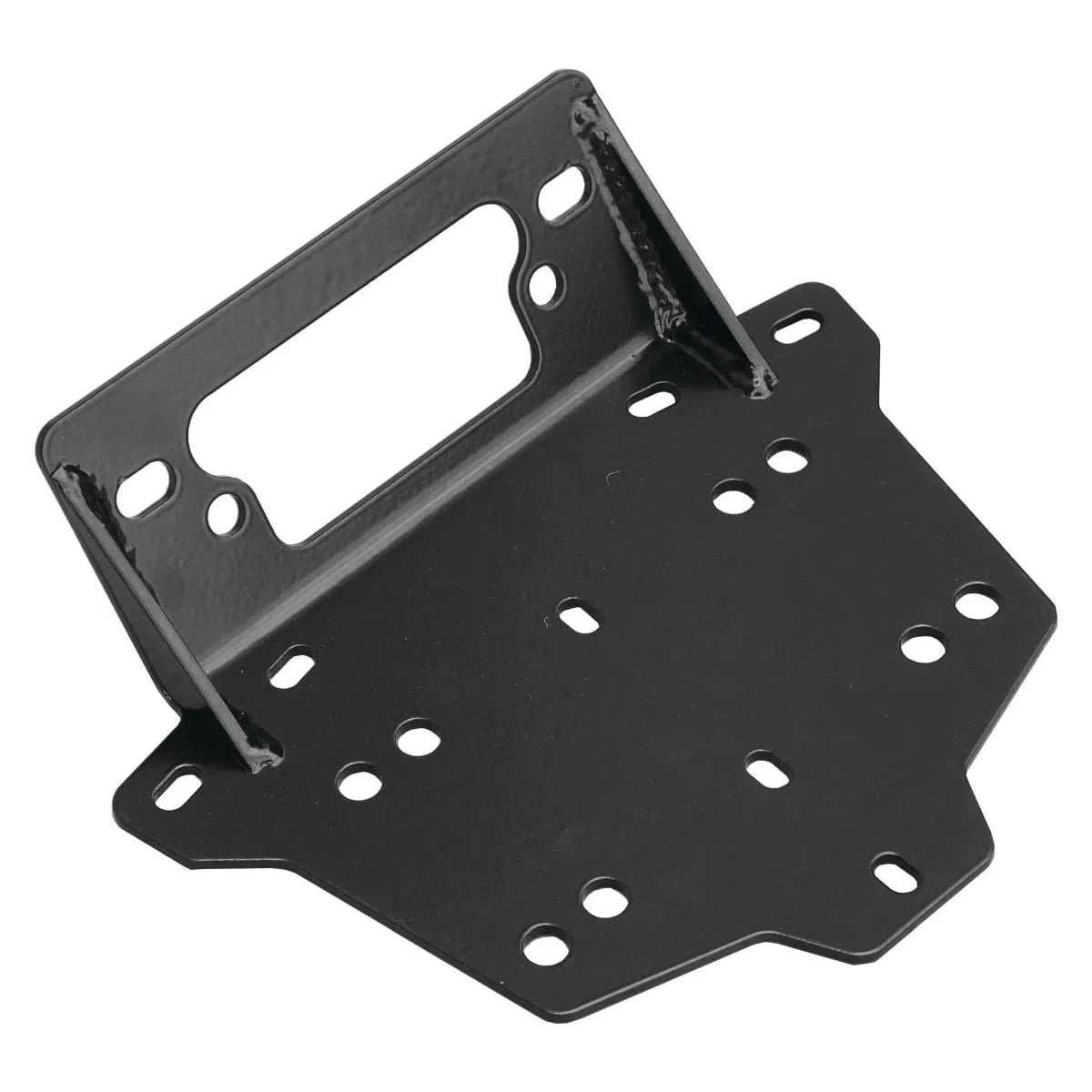

KFI Winch Mount - 101055
KFI Winch Mount - 101055
Features
- 100% MADE IN USA.
- Constructed of 3/16” steel
- Unlike all other mount competitors, our mounts are metal bead blasted before they are powder coated for the best possible finish prep.
- Powder coated black for supreme durability.
- Complete installation instructions included.
- All mounting hardware included.
- Satisfaction guaranteed.
- Roller fairlead and winch not included.
| Vehicle | A2000 A2500 A3000 SE25 SE35 |
U45-R2 SE45-R2 | U4500w SE45w-R2 (WIDE) | AS-50 (ATV's will require ATV-MR) | AS-50w |
|---|---|---|---|---|---|
| Can-Am Maverick 1000 (will NOT work on any "X ds" or "X rs Turbo" Models with aluminum front bumper) 2013-2018 | 101055 5 | --- | --- | 101055 5 | 101055 5 |
1=Mount #100480 also required
2= No mount required, OEM integrated Mount
3=requires drilling 1-2-holes
4=Includes mount and grill, mount only #100560
5=Requires Stock Bumper
6=04-04.5 ONLY
7=Spacer Required
8=Lead Rotation Required
9= Requires Mount Spacer #101065
10= Will NOT work with Warn Vantage 4000
11= ProVantage requires #ATV-RF
12=Reguires Frame Modification
13= Requires Plastic Trimming to Fit
14= Requires a fairlead bracket #101715
15= Requires a fairlead bracket #100695
16= Requires adding washers to shim up to fit due to size
17= Requires Spacer #101065
**= Requires Wire Extension Kit #UTV-WEK
Please see below for full description and detailed fitment
Brand new "KFI" Winch Mount for the following Can-Am UTV's:
2013-2018Can-Am Mavrick's
!Will NOT work on any "X ds" or "X rs Turbo" Models with aluminum front bumper!
See Figures below
** = Requires the purchase of#UTV-WEK (wire extension kit) Due to location of battery.
·
| Maverick Models | Years |
| Maverick 1000R | '13-18 |
| Maverick 1000R Turbo | 2018 |
| Maverick X mr 1000R | '14-18 |
| Maverick X rs 1000R | '13-18 |
| Maverick X xc 1000R | '14-18 |
| Maverick xc 1000R | 2018 |
| Maverick Max 1000R & Turbo | '14-18** |
| Maverick Max X rs 1000R | '14-18** |
Designed to work with the following winches:
- KFI: ST17 / A2000 / A2500-R2 / A3000 / SE25 / SE35
- KFI: AS-50 / AS-50w
- WARN:VRX 25 / VRX 25-S / VRX 35 / VRX 35-S
- WARN:A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
- WARN:RT15 / RT25 / RT30 / XT15 / XT25 / XT30
- WARN:RT40 / XT40
- WARN:Vantage 2000-3000lbs / Provantage 2500-3500lbs
- WARN:Vantage 4000lbs / Provantage 4500lbs
- RAMSEY : ATV2500 / ATV3000
- SUPERWINCH : Terra25 / Terra35 / Terra 45 / A3500 / LT2000 / LT2500 / LT3000 / LT4000ATV / LT4000UTV
- MILE MARKER :PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
-
MASTER LOCK :1500lbs #2955AT
- Requires fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
- CYCLE COUNTRY :Work Power 1500 and 2500 / Powermax 2500, 3500
- BADLAND: 2-Hole Winches
- BADLAND: Standard Winches
- BADLAND: WIDE Winches
- CHAMPION : 2-Hole Winches
- CHAMPION : Standard Winches
- KEEPER CORP. TRAKKER :KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C
-
KEEPER CORP. TRAKKER :KT2000
- Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
-
SMITTYBILT :XRC 2.0
- Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
- Listed models come with incorrect ATV roller fairleads.
- SMITTYBILT :XRC 3.0 / XRC 4.0
-
XGEAR: X3000 / X4000
- 4-Hole Standard (3.00" x 4.875" bolt pattern)
-
VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series)
- All with 3.00" x 4.875" bolt pattern mount-up
- All with 3.00" x 6.600" bolt pattern mount-up
-
Traveller:1078088 / 1078302
- Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF
-
Possibly many others with the below standard mounting patterns, call to confirm.
- 4-Hole (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)
- 4-Hole WIDE (3.00" x 6.60" bolt pattern with rollers that are 6.600" or 6.000" bolt pattern)
- 2-Hole (3.10" with rollers that are 4.875" bolt pattern)
- QUADBOSS: RP25 / RP35
Specifications:
- 100% MADE IN USA.
- Constructed of 3/16” steel
- Unlike all other mount competitors, our mounts are metal bead blasted before they are powder coated for the best possible finish prep.
- Powder coated black for supreme durability.
- Complete installation instructions included.
- All mounting hardware included.
- Satisfaction guaranteed.
- Roller fairlead and winch not included.
| Vehicle | A2000 A2500 A3000 SE25 SE35 |
U45-R2 SE45-R2 | U4500w SE45w-R2 (WIDE) | AS-50 (ATV's will require ATV-MR) | AS-50w |
|---|---|---|---|---|---|
| Can-Am Maverick 1000 (will NOT work on any "X ds" or "X rs Turbo" Models with aluminum front bumper) 2013-2018 | 101055 5 | --- | --- | 101055 5 | 101055 5 |
1=Mount #100480 also required
2= No mount required, OEM integrated Mount
3=requires drilling 1-2-holes
4=Includes mount and grill, mount only #100560
5=Requires Stock Bumper
6=04-04.5 ONLY
7=Spacer Required
8=Lead Rotation Required
9= Requires Mount Spacer #101065
10= Will NOT work with Warn Vantage 4000
11= ProVantage requires #ATV-RF
12=Reguires Frame Modification
13= Requires Plastic Trimming to Fit
14= Requires a fairlead bracket #101715
15= Requires a fairlead bracket #100695
16= Requires adding washers to shim up to fit due to size
17= Requires Spacer #101065
**= Requires Wire Extension Kit #UTV-WEK
Brand: KFI
Part Number: 101055
