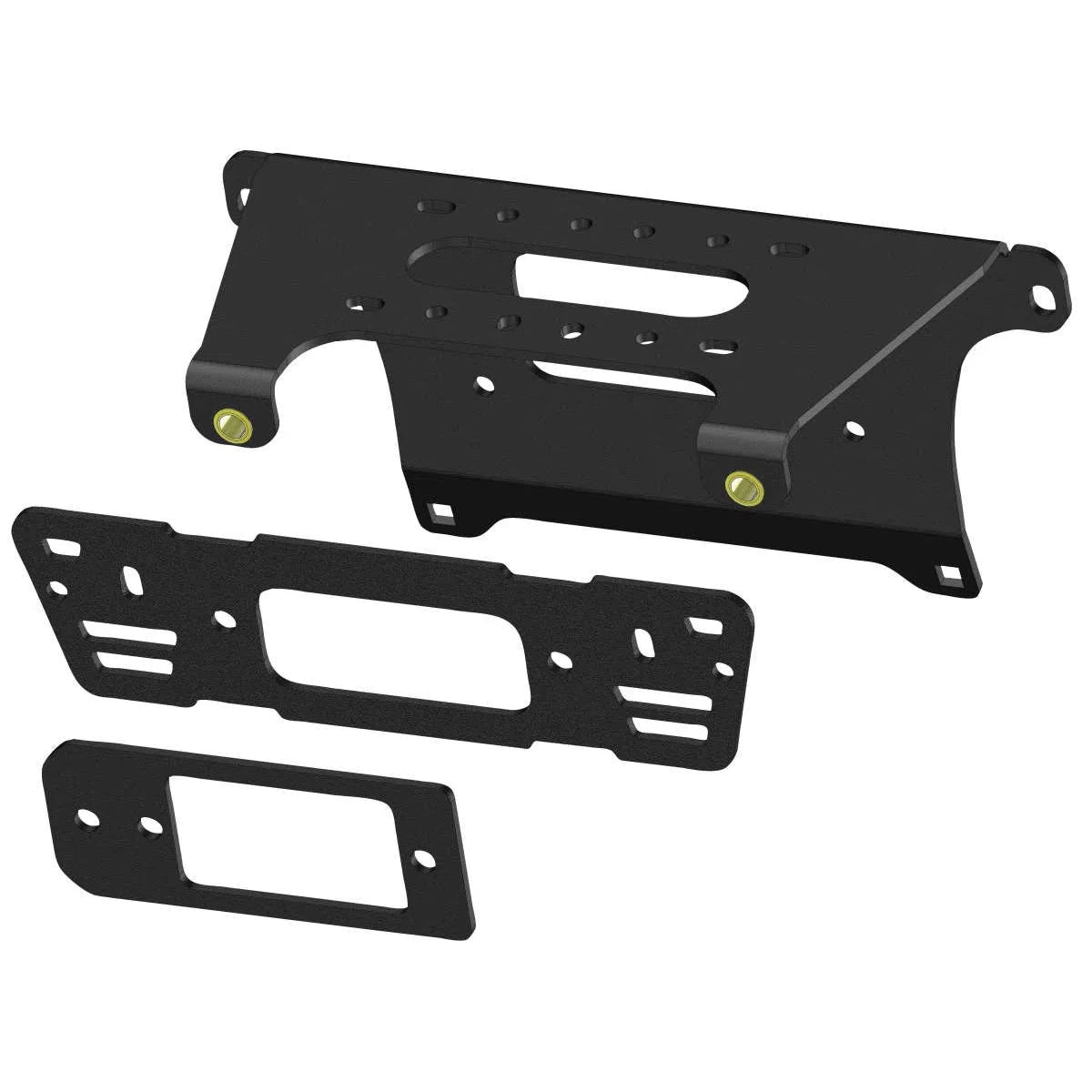

KFI Winch Mount - 101345
KFI Winch Mount - 101345
Features
- 100% MADE IN USA.
- Constructed of 3/16" Grade 50 steel
- Unlike all other mount competitors, our mounts are metal bead blasted before they are powder coated for the best possible finish prep.
- Powder coated black for supreme durability
- Very easy to install
- Complete installation instructions included
- Mounts winch tucked back behind front bumper
- Satisfaction guaranteed
- Roller fairlead and winch not included
| Vehicle | A2000 A2500 A3000 SE25 SE35 |
U45-R2 SE45-R2 | U4500w SE45w-R2 (WIDE) | AS-50 (ATV's will require ATV-MR) | AS-50w |
|---|---|---|---|---|---|
| Polaris Diesel Ranger HST/DELUXE Full-Size 4x4 2014-2017 | 101345 | 101345 | 101345 | 101345 | 101345 |
| Polaris Diesel Ranger (1000) Full-Size 4x4 2015-2018 | 101345 | 101345 | 101345 | 101345 | 101345 |
| Polaris 570 Ranger Full-Size 4x4 (900 Style) 2015 | 101345 | 101345 | 101345 | 101345 | 101345 |
| Polaris 570 Ranger XP Full-Size 4x4 (900 Style) 2016 | 101345 | 101345 | 101345 | 101345 | 101345 |
| Polaris 900 Ranger Full-Size 4x4 2013-2019 | 101345 | 101345 | 101345 | 101345 | 101345 |
| Polaris 1000 Ranger Full-Size 4x4 2017 | 101345 | 101345 | 101345 | 101345 | 101345 |
| Polaris Diesel Ranger (1000) Full-Size 4x4 Crew 2015-2018 | 101345** | 101345** | 101345** | 101345** | 101345** |
| Polaris 570-6 Ranger Full-Size 4x4 Crew (900 Style) 2015-2016 | 101345** | 101345** | 101345** | 101345** | 101345** |
| Polaris 900 Ranger Full-Size Crew 4x4 2014-2019 | 101345** | 101345** | 101345** | 101345** | 101345** |
| Polaris 1000 Ranger Full-Size 4x4 Crew 2017-2018 | 101345** | 101345** | 101345** | 101345** | 101345** |
1=Mount #100480 also required
2= No mount required, OEM integrated Mount
3=requires drilling 1-2-holes
4=Includes mount and grill, mount only #100560
5=Requires Stock Bumper
6=04-04.5 ONLY
7=Spacer Required
8=Lead Rotation Required
9= Requires Mount Spacer #101065
10= Will NOT work with Warn Vantage 4000
11= ProVantage requires #ATV-RF
12=Reguires Frame Modification
13= Requires Plastic Trimming to Fit
14= Requires a fairlead bracket #101715
15= Requires a fairlead bracket #100695
16= Requires adding washers to shim up to fit due to size
17= Requires Spacer #101065
**= Requires Wire Extension Kit #UTV-WEK
Please see below for full description and detailed fitment
Brand New "KFI" Winch Mount for the below listed Polaris Ranger's:
| Gravely UTV | Year |
| ATLAS JSV | ALL |
| Polaris Full-Size UTV | Year |
| Diesel Ranger (1000) Full-Size 4x4 | '15-18 |
| Diesel Ranger (1000) Full-Size 4x4 Crew | '15-18** |
| Diesel Ranger HST/DELUXE Full-Size 4x4 | '14-16 |
| 570 Ranger Full-Size 4x4 (900 Body Style ONLY) | 2015 |
| 570 Ranger XP Full-Size 4x4 (900 Body Style ONLY) | 2016 |
| 570-6 Ranger Full-Size 4x4 Crew (900 Body Style ONLY) | '15-16** |
| 900 Ranger Full-Size 4x4 | '13-19 |
| 900 Ranger Full-Size 4x4 Crew | '14-19** |
| 1000 Ranger Full-Size 4x4 | 2017 |
| 1000 Ranger Full-Size 4x4 Crew | '17-18** |
| 1000 Ranger Northstar Edition | '18-19 |
| 1000 Ranger Northstar Edition Crew | 2019 |
** = Requires the purchase of#UTV-WEK (wire extension kit) Due to location of battery on Ranger.
Designed to work with the following winches:
- KFI: ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / U45w-R2 / SE25 / SE35 / SE45-R2 / SE45w-R2
- KFI: AS-50 / AS-50w
- WARN:VRX 25 / VRX 25-S / VRX 35 / VRX 35-S / VRX 45 / VRX 45-S
- WARN:A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
- WARN:RT15 / RT25 / RT30 / XT15 / XT25 / XT30
- WARN:RT40 / XT40
- WARN:Vantage 2000-4000lb
- WARN:ProVantage 2500-4500lbs
- RAMSEY : ATV2500 / ATV3000
- SUPERWINCH : Terra25 / Terra35 / Terra 45 / A3500 / LT2000 / LT2500 / LT3000 / LT4000ATV / LT4000UTV
- MILE MARKER :PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
- CYCLE COUNTRY :Work Power 1500 and 2500 / Powermax 2500 and 3500
- BADLAND: 2-Hole Winches
- BADLAND: Standard Winches
- BADLAND: WIDE Winches
- CHAMPION : 2-Hole Winches
- CHAMPION : Standard Winches
- CHAMPION : 4500-5000lb Narrow Winch
- CHAMPION : 4500-5000lb WIDE Winch
- KEEPER CORP. TRAKKER :KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C
-
KEEPER CORP. TRAKKER :KT2000
- Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
-
SMITTYBILT :XRC 2.0
- Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
- Listed models come with incorrect ATV roller fairleads.
- SMITTYBILT :XRC 3.0 / XRC 4.0
-
XGEAR: X3000 / X4000
- 4-Hole Standard (3.00" x 4.875" bolt pattern)
-
VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series)
- All with 3.00" x 4.875" bolt pattern mount-up
- All with 3.00" x 6.600" bolt pattern mount-up
- Traveller: 1078311
-
Traveller:1078088 / 1087302
- Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF
-
Possibly many others with the below standard mounting patterns, call to confirm.
- 4-Hole (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)
- 4-Hole WIDE (3.00" x 6.60" bolt pattern with rollers that are 6.600" or 6.000" bolt pattern)
- 2-Hole (3.10" with rollers that are 4.875" bolt pattern)
- QUADBOSS: RP25 / RP35
Specifications:
- 100% MADE IN USA.
- Constructed of 3/16" Grade 50 steel
- Unlike all other mount competitors, our mounts are metal bead blasted before they are powder coated for the best possible finish prep.
- Powder coated black for supreme durability
- Very easy to install
- Complete installation instructions included
- Mounts winch tucked back behind front bumper
- Satisfaction guaranteed
- Roller fairlead and winch not included
| Vehicle | A2000 A2500 A3000 SE25 SE35 |
U45-R2 SE45-R2 | U4500w SE45w-R2 (WIDE) | AS-50 (ATV's will require ATV-MR) | AS-50w |
|---|---|---|---|---|---|
| Polaris Diesel Ranger HST/DELUXE Full-Size 4x4 2014-2017 | 101345 | 101345 | 101345 | 101345 | 101345 |
| Polaris Diesel Ranger (1000) Full-Size 4x4 2015-2018 | 101345 | 101345 | 101345 | 101345 | 101345 |
| Polaris 570 Ranger Full-Size 4x4 (900 Style) 2015 | 101345 | 101345 | 101345 | 101345 | 101345 |
| Polaris 570 Ranger XP Full-Size 4x4 (900 Style) 2016 | 101345 | 101345 | 101345 | 101345 | 101345 |
| Polaris 900 Ranger Full-Size 4x4 2013-2019 | 101345 | 101345 | 101345 | 101345 | 101345 |
| Polaris 1000 Ranger Full-Size 4x4 2017 | 101345 | 101345 | 101345 | 101345 | 101345 |
| Polaris Diesel Ranger (1000) Full-Size 4x4 Crew 2015-2018 | 101345** | 101345** | 101345** | 101345** | 101345** |
| Polaris 570-6 Ranger Full-Size 4x4 Crew (900 Style) 2015-2016 | 101345** | 101345** | 101345** | 101345** | 101345** |
| Polaris 900 Ranger Full-Size Crew 4x4 2014-2019 | 101345** | 101345** | 101345** | 101345** | 101345** |
| Polaris 1000 Ranger Full-Size 4x4 Crew 2017-2018 | 101345** | 101345** | 101345** | 101345** | 101345** |
1=Mount #100480 also required
2= No mount required, OEM integrated Mount
3=requires drilling 1-2-holes
4=Includes mount and grill, mount only #100560
5=Requires Stock Bumper
6=04-04.5 ONLY
7=Spacer Required
8=Lead Rotation Required
9= Requires Mount Spacer #101065
10= Will NOT work with Warn Vantage 4000
11= ProVantage requires #ATV-RF
12=Reguires Frame Modification
13= Requires Plastic Trimming to Fit
14= Requires a fairlead bracket #101715
15= Requires a fairlead bracket #100695
16= Requires adding washers to shim up to fit due to size
17= Requires Spacer #101065
**= Requires Wire Extension Kit #UTV-WEK
Brand: KFI
Part Number: 101345
