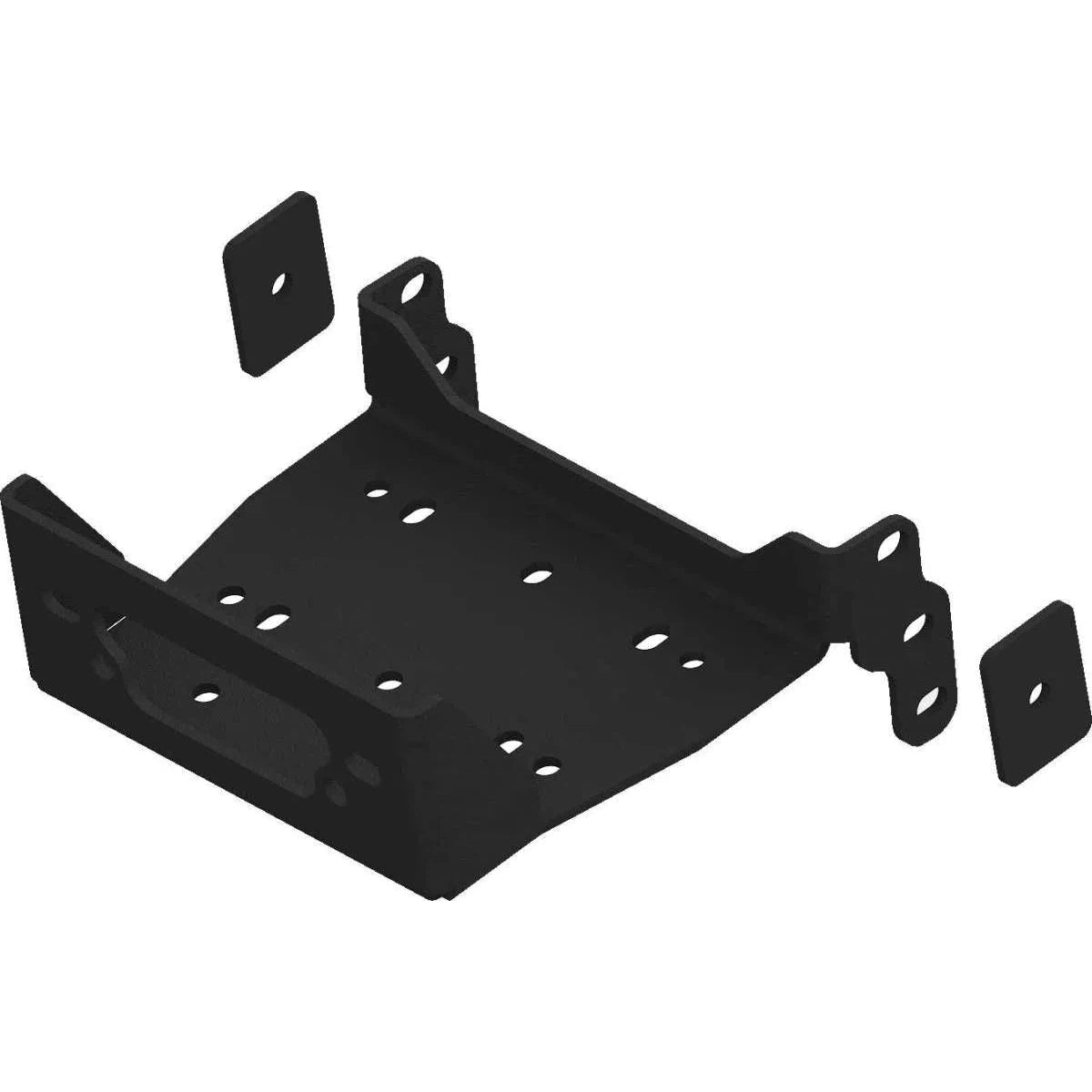

Brand New "KFI" Winch Mount for the following Yamaha UTV's:

Designed to work with the following winches:

• KFI on VIKING / Viking VI: ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / SE25 / SE35 / SE45-R2 / AS-50 / AS-50w (Will NOT work with U45w-R2 or SE45w-R2 WIDE winches)
• KFI on WOLVERINE: ST17 / A2000 / A2500-R2 / A3000 / SE25 / SE35 / AS-50 / AS-50w (Will NOT work with U45-R2, U45w-R2, SE45-R2 or SE45w-R2 winches)
• KFI on WOLVERINE X2 and X4: ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / U45w-R2 / SE25 / SE35 / SE45-R2 / SE45w-R2 / AS-50 / AS-50w
• WARN:VRX 25 / VRX 25-S / VRX 35 / VRX 35-S
• WARN:A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
• WARN:RT15 / RT25 / RT30 / XT15 / XT25 / XT30
• WARN:RT40 / XT40 (Requires the drilling of two holes)
• WARN:Vantage 2000-3000lb
• WARN:Vantage 4000lb (Requires the drilling of two holes)
• WARN:ProVantage 2500-3500lbs
• WARN:ProVantage 4500lbs (Requires the drilling of two holes)
• RAMSEY : ATV2500 / ATV3000
• SUPERWINCH : Terra25 / Terra35 / A3500 / LT2000 / LT2500 / LT3000 / LT4000ATV / LT4000UTV
• SUPERWINCH : Terra 45 (Requires drilling of two holes)
• MILE MARKER :PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500 (2-hole mounted winches will require the drilling of one hole)
• CYCLE COUNTRY :Work Power 1500 and 2500 / Powermax 2500 and 3500
• BADLAND: 2-Hole Winches
  • (Requires drilling of hole(s))
• BADLAND: Standard Winches
• BADLAND: WIDE Winches
  • (Requires drilling of two holes)
• CHAMPION : 2-Hole Winches
• CHAMPION : Standard Winches
• CHAMPION : WIDE Winches
  • (Requires drilling of two holes)
• KEEPER CORP. TRAKKER :KT2500 / KT3000 / KT2500C / KT3000C
• KEEPER CORP. TRAKKER :KT4000 / KT4000C (Requires the drilling of two holes)
• KEEPER CORP. TRAKKER :KT2000 (Requires the drilling of one holes)
  • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF
• SMITTYBILT :XRC 2.0 (Requires drilling of one holes)
  • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
  • Listed models come with incorrect ATV roller fairleads.
• SMITTYBILT :XRC 3.0 / XRC 4.0
• XGEAR: X3000 / X4000
  • 4-Hole Standard (3.00" x 4.875" bolt pattern)
• VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series)
  • All with 3.00" x 4.875" bolt pattern mount-up.
  • All with 3.00" x 6.600" bolt pattern mount-up will require the drilling of two holes.
• Traveller:1078088 / 1078302
  • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF
• Possibly many others with the below standard mounting patterns, call to confirm.
  • 4-Hole (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)
  • 4-Hole WIDE that will require the drilling of two holes (3.00" x 6.60" bolt pattern with rollers that are 6.600" or 6.000" bolt pattern)
  • 2-Hole that will require the drilling of one hole (3.10" with rollers that are 4.875" bolt pattern)

Specifications:

• 100% MADE IN USA.
• Constructed of 3/16" steel.
• Unlike all other mount competitors, our mounts are metal bead blasted before they are powder coated for the best possible finish prep.
• Powder coated black for supreme durability.
• Very easy to install.
• Complete installation instructions included.
• All mounting hardware included.
• Satisfaction guaranteed.
• Roller fairlead and winch not included.
