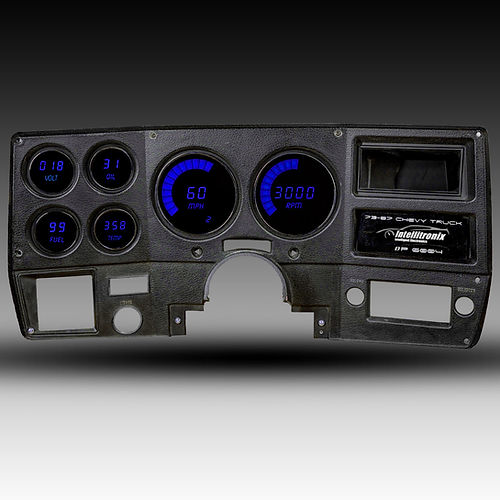

1973-1987 Chevy Truck Digital Dash Panel Blue LED Gauges
Customer Ratings
1973-1987 Chevy Truck Digital Dash Panel Blue LED Gauges
1973-1987 Chevy Truck Digital Dash Panel Blue LED Gauges
Light up your classic Chevy truck with this stunning Intellitronix Digital Dash featuring bright BLUE LEDs. Trust us - the pictures don't do the color justice! The rich blue is eye-catching in person and incredibly vivid, even if your camera can't quite capture its full brilliance.
Fits:
- Chevy/GMC C/K Series Trucks
- Model Years: 19731987
What's Included:
- Direct-fit printed circuit boards
- Custom-fit smoked Plexiglas face plates

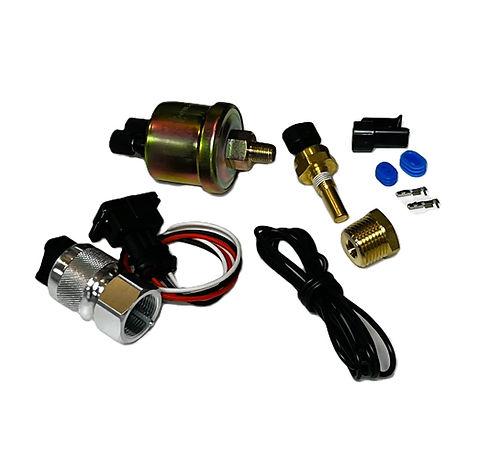

- Universal temperature sending unit (S8013)
- Oil pressure sending unit
- Speedometer sending unit (S9013) for non-electronic transmission/cruise control
- Detailed installation instructions
Everything fits directly into your existing factory housing. You may need to run new wires to the speed sensor for full functionality.
Speedometer Features:
- Reads up to 255 MPH
- Odometer and trip meter
- 060 MPH time
- 1/4 mile elapsed time (ET)
- High-speed recall
- One-button calibration (works with any tire size, gear ratio, or transmission)
Additional Digital Gauges:
- Tachometer: 09,900 RPM (100 RPM increments)
- Water Temperature: 100300°F (Celsius available upon request)
- Oil Pressure: 0100 PSI
- Voltmeter: 7.025.5V (no sender required)
- Fuel Level: 099% (uses factory GM sending unit)
- Turn signal indicators and high beam indicator built-in
Important Notes for LS Swaps:
- You may need metric-to-standard adapters for our sending units (often included with LS engine kits).
- If you're running a 4-cylinder LS engine, please notify us so we can configure the tach correctly (or program it yourself).
Brand: Intellitronix
Part Number: DP6004B
Note: Image is for reference only, actual product may vary slightly.
