1973-1987 Chevy Truck Digital Dash Panel White LED Gauges DP6004W Made In USA!

1973-1987 Chevy Truck Digital Dash Panel White LED Gauges DP6004W Made In USA!

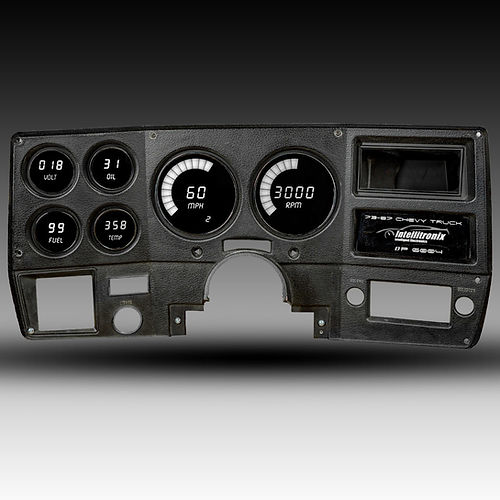

Bright, bold, and unmistakably modern - this digital gauge panel is a direct-fit upgrade for your 1973–1987 Chevy Truck. Featuring crisp WHITE LED illumination, this dash delivers high visibility both day and night. Note: The brightness can cause some glare in photos, but this effect is not present during normal use.

Complete Plug-and-Play Kit Includes:

• Direct-fit printed circuit boards
• Smoked Plexiglas face plates (custom fit)
• Universal temperature sender (S8013)
• Oil pressure sender
• Speedometer sender (S9013) for trucks without electronic transmission or cruise
• Installation instructions

This system installs directly into your existing gauge housing. You'll need to run new wires to the included speed sensor. Fully compatible with factory GM fuel level sending units and vehicles equipped with cruise control or electronic transmissions.

Digital Gauge Functions:

• Speedometer: Reads up to 255 MPH with:
  • One-button calibration (works with any tire size, gear ratio, or transmission)
  • Odometer and trip meter
  • 0–60 time, 1/4-mile ET, and high-speed recall
• Tachometer: 0–9,900 RPM (100 RPM increments)
• Water Temp: 100–300°F (Sender included)
• Oil Pressure: 0–100 PSI (Sender included)
• Voltmeter: 7.0–25.5 Volts (no sender needed)
• Fuel Level: 0–99% (works with existing GM sender)
• Turn signal indicators and high beam indicator

LS Engine Notes:

• May require metric-to-standard thread adapters for senders (commonly included in LS swap kits)
• If using a 4-cylinder LS engine, please notify us so we can configure the tachometer accordingly (it is also user-programmable)

Upgrade your classic Chevy interior with precision and style. This all-digital dash system brings modern performance to your vintage ride - all while maintaining your truck's timeless appeal.

Brand: Intellitronix
Part Number: DP6004W

Note: Image is for reference only, actual product may vary slightly.
