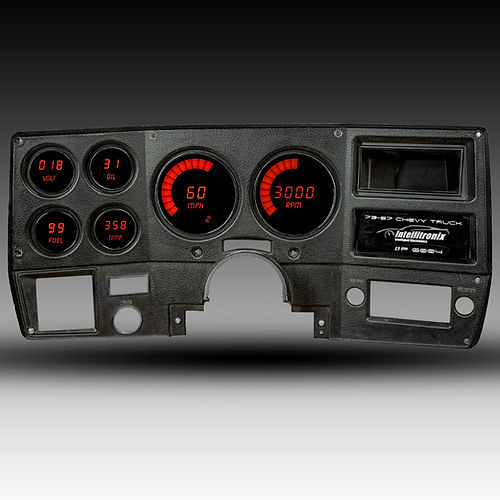

1973-1987 Chevy Truck Digital Dash RED LED Intellitronix DP6004R Made In USA!

1973-1987 Chevy Truck Digital Dash RED LED Intellitronix DP6004R Made In USA!

Upgrade your classic Chevy truck with a powerful and stylish all-digital instrument cluster featuring bold RED LED displays. Designed for a seamless fit into 1973–1987 Chevy Truck dashboards, this system combines performance data with modern visibility and ease of installation.

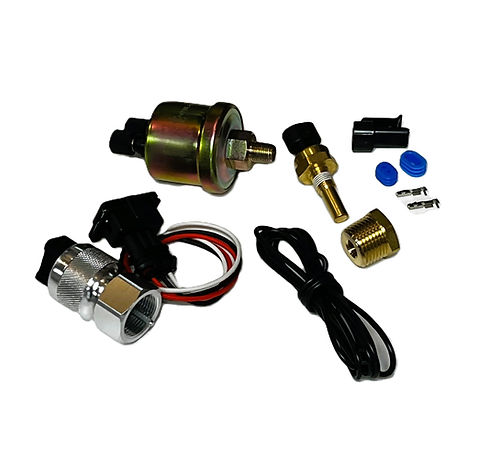

What's Included:

• Direct-fit printed circuit boards
• Custom-fit smoked Plexiglas face plates
• Universal temperature sender (S8013)
• Oil pressure sender
• Speedometer sender (S9013) for vehicles without cruise or electronic trans
• Installation instructions

This setup installs directly into your existing housing. You may need to run new wires to the included speed sensor. Compatible with factory GM fuel level sending units and electronic transmission/cruise setups where applicable.

Speedometer Features:

• Reads up to 255 MPH (KPH available upon request)
• One-button calibration for tire size, gear ratio, or transmission
• Odometer & trip meter
• 0–60 timer, 1/4-mile ET, high-speed recall

Additional Digital Gauges:

• Tachometer: 0–9,900 RPM in 100 RPM increments
• Water Temperature: 100–300°F (Celsius available upon request)
• Oil Pressure: 0–100 PSI
• Voltmeter: 7.0–25.5 volts
• Fuel Level: 0–99% (works with OEM GM sender)
• Includes turn signal and high beam indicators

LS Engine Notes:

• May require metric-to-standard adapters for the senders (check your LS kit)
• For 4-cylinder LS engines, let the seller know to configure the tachometer (or set it manually)

Whether you're building a restomod or enhancing your weekend cruiser, this digital gauge system offers modern features, easy installation, and clean aesthetics to complement your interior.

Brand: Intellitronix
Part Number: DP6004R

Note: Image is for reference only, actual product may vary slightly.
