1978-1988 Monte Carlo Digital Dash Panel Red LED Gauges Made In The USA

1978-1988 Monte Carlo Digital Dash Panel Red LED Gauges Made In The USA

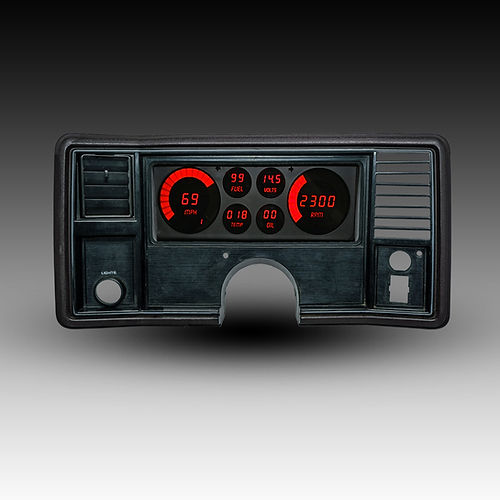

Enhance the legacy of your classic Monte Carlo or El Camino with this advanced, made-in-the-USA digital dash panel from Intellitronix. Designed with precision and race-inspired functionality, this modern gauge system features vivid red LEDs and cutting-edge accuracy – a stunning upgrade for any enthusiast of these iconic vehicles.

Fits:

• 1978–1988 Chevy Monte Carlo
• 1978–1988 Chevy El Camino

Included in the Kit:

• Direct-fit printed circuit boards
• Custom-fit smoked Plexiglas faceplates

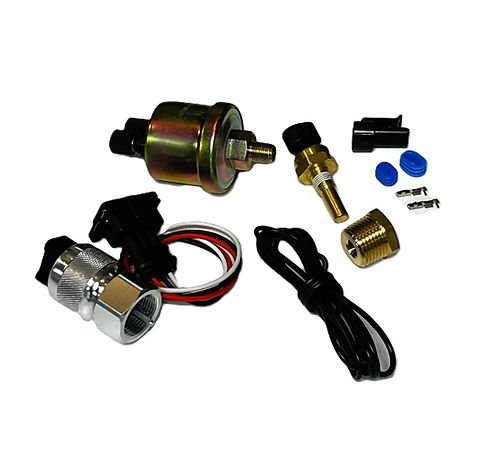

• Universal temperature sending unit (S8013)
• Oil pressure sending unit
• Speedometer sending unit (S9013 – for vehicles without electronic transmission or cruise control)
• Complete installation instructions

Gauge Features:

• Speedometer: Up to 255 MPH
  • One-touch calibration (any tire size, gear ratio, or transmission)
  • Odometer and trip meter
  • 0–60 time, 1/4 mile ET, high-speed recall
  • Works with OEM cruise senders or included S9013 sensor
• Tachometer: 0–9,900 RPM (100 RPM increments)
• Water Temperature: 100–300°F (Celsius available upon request)
• Oil Pressure: 0–100 PSI
• Voltmeter: 7.0–25.5 volts
• Fuel Level: 0–99% (compatible with existing GM sender)
• Turn signal and high-beam indicators integrated

Important Notes:

• LS Engine Users: Adapters (metric to standard) for sending units may be required and are not included. These are often provided with your engine kit.
• For 4-cylinder LS engines, please specify during checkout so tachometer can be preset. Tachometer is also user-programmable.
• Bushing options for the temperature sender: default is 1/2", 3/8" available upon request.
• Some new wiring will be needed to connect the speed sensor.

Bring modern precision to your vintage Chevy dash with this sleek digital upgrade – bold looks, intuitive functions, and trusted performance by Intellitronix.

Brand: Intellitronix
Part Number: DP9002R

Fitment:

• 1978-1979 Chevrolet El Camino Base Standard Cab Pickup 2-Door 3.3L 200Cu. In. V6 GAS OHV Naturally Aspirated
• 1980-1984 Chevrolet El Camino Base Standard Cab Pickup 2-Door 3.8L 229Cu. In. V6 GAS OHV Naturally Aspirated
• 1978-1984 Chevrolet El Camino Base Standard Cab Pickup 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
• 1985-1987 Chevrolet El Camino Base Standard Cab Pickup 2-Door 4.3L 262Cu. In. V6 GAS OHV Naturally Aspirated
• 1979-1982 Chevrolet El Camino Base Standard Cab Pickup 2-Door 4.4L 267Cu. In. V8 GAS OHV Naturally Aspirated
• 1978-1987 Chevrolet El Camino Base Standard Cab Pickup 2-Door 5.0L 305Cu. In. V8 GAS OHV Naturally Aspirated
• 1983-1984 Chevrolet El Camino Base Standard Cab Pickup 2-Door 5.7L 350Cu. In. V8 DIESEL OHV Naturally Aspirated
• 1978-1979 Chevrolet El Camino Base Standard Cab Pickup 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
• 1978 Chevrolet El Camino Conquista Standard Cab Pickup 2-Door 3.3L 200Cu. In. V6 GAS OHV Naturally Aspirated
• 1981-1984 Chevrolet El Camino Conquista Standard Cab Pickup 2-Door 3.8L 229Cu. In. V6 GAS OHV Naturally Aspirated
• 1978 Chevrolet El Camino Conquista Standard Cab Pickup 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
• 1981-1984 Chevrolet El Camino Conquista Standard Cab Pickup 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
• 1985-1986 Chevrolet El Camino Conquista Standard Cab Pickup 2-Door 4.3L 262Cu. In. V6 GAS OHV Naturally Aspirated
• 1981-1982 Chevrolet El Camino Conquista Standard Cab Pickup 2-Door 4.4L 267Cu. In. V8 GAS OHV Naturally Aspirated
• 1978 Chevrolet El Camino Conquista Standard Cab Pickup 2-Door 5.0L 305Cu. In. V8 GAS OHV Naturally Aspirated
• 1981-1986 Chevrolet El Camino Conquista Standard Cab Pickup 2-Door 5.0L 305Cu. In. V8 GAS OHV Naturally Aspirated
• 1983-1984 Chevrolet El Camino Conquista Standard Cab Pickup 2-Door 5.7L 350Cu. In. V8 DIESEL OHV Naturally Aspirated
• 1978 Chevrolet El Camino Conquista Standard Cab Pickup 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
• 1979 Chevrolet El Camino Royal Knight Standard Cab Pickup 2-Door 3.3L 200Cu. In. V6 GAS OHV Naturally Aspirated
• 1980-1981 Chevrolet El Camino Royal Knight Standard Cab Pickup 2-Door 3.8L 229Cu. In. V6 GAS OHV Naturally Aspirated
• 1979-1981 Chevrolet El Camino Royal Knight Standard Cab Pickup 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
• 1979-1981 Chevrolet El Camino Royal Knight Standard Cab Pickup 2-Door 4.4L 267Cu. In. V8 GAS OHV Naturally Aspirated
• 1979-1981 Chevrolet El Camino Royal Knight Standard Cab Pickup 2-Door 5.0L 305Cu. In. V8 GAS OHV Naturally Aspirated
• 1979 Chevrolet El Camino Royal Knight Standard Cab Pickup 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
• 1983-1984 Chevrolet El Camino SS Standard Cab Pickup 2-Door 3.8L 229Cu. In. V6 GAS OHV Naturally Aspirated
• 1980-1983 Chevrolet El Camino SS Standard Cab Pickup 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
• 1985-1987 Chevrolet El Camino SS Standard Cab Pickup 2-Door 4.3L 262Cu. In. V6 GAS OHV Naturally Aspirated
• 1980-1982 Chevrolet El Camino SS Standard Cab Pickup 2-Door 4.4L 267Cu. In. V8 GAS OHV Naturally Aspirated
• 1978-1987 Chevrolet El Camino SS Standard Cab Pickup 2-Door 5.0L 305Cu. In. V8 GAS OHV Naturally Aspirated
• 1983-1984 Chevrolet El Camino SS Standard Cab Pickup 2-Door 5.7L 350Cu. In. V8 DIESEL OHV Naturally Aspirated
• 1978-1979 Chevrolet El Camino SS Standard Cab Pickup 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
• 1979 Chevrolet Monte Carlo Base Coupe 2-Door 3.3L 200Cu. In. V6 GAS OHV Naturally Aspirated
• 1981-1984 Chevrolet Monte Carlo Base Coupe 2-Door 3.8L 229Cu. In. V6 GAS OHV Naturally Aspirated
• 1986-1987 Chevrolet Monte Carlo Base Coupe 2-Door 3.8L 231Cu. In. V6 GAS Naturally Aspirated
• 1979 Chevrolet Monte Carlo Base Coupe 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
• 1981-1985 Chevrolet Monte Carlo Base Coupe 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
• 1981 Chevrolet Monte Carlo Base Coupe 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Turbocharged
• 1982-1983 Chevrolet Monte Carlo Base Coupe 2-Door 4.3L 260Cu. In. V6 DIESEL OHV Naturally Aspirated
• 1985-1988 Chevrolet Monte Carlo Base Coupe 2-Door 4.3L 262Cu. In. V6 GAS OHV Naturally Aspirated
• 1979 Chevrolet Monte Carlo Base Coupe 2-Door 4.4L 267Cu. In. V8 GAS OHV Naturally Aspirated
• 1981-1982 Chevrolet Monte Carlo Base Coupe 2-Door 4.4L 267Cu. In. V8 GAS OHV Naturally Aspirated
• 1979 Chevrolet Monte Carlo Base Coupe 2-Door 5.0L 305Cu. In. V8 GAS OHV Naturally Aspirated
• 1981-1988 Chevrolet Monte Carlo Base Coupe 2-Door 5.0L 305Cu. In. V8 GAS OHV Naturally Aspirated
• 1982-1984 Chevrolet Monte Carlo Base Coupe 2-Door 5.7L 350Cu. In. V8 DIESEL OHV Naturally Aspirated
• 1983 Chevrolet Monte Carlo CL Coupe 2-Door 3.8L 229Cu. In. V6 GAS OHV Naturally Aspirated
• 1983 Chevrolet Monte Carlo CL Coupe 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
• 1983 Chevrolet Monte Carlo CL Coupe 2-Door 4.3L 260Cu. In. V6 DIESEL OHV Naturally Aspirated
• 1983 Chevrolet Monte Carlo CL Coupe 2-Door 5.0L 305Cu. In. V8 GAS OHV Naturally Aspirated
• 1983 Chevrolet Monte Carlo CL Coupe 2-Door 5.7L 350Cu. In. V8 DIESEL OHV Naturally Aspirated
• 1978-1979 Chevrolet Monte Carlo Landau Coupe 2-Door 3.3L 200Cu. In. V6 GAS OHV Naturally Aspirated
• 1980-1981 Chevrolet Monte Carlo Landau Coupe 2-Door 3.8L 229Cu. In. V6 GAS OHV Naturally Aspirated
• 1978-1981 Chevrolet Monte Carlo Landau Coupe 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
• 1980-1981 Chevrolet Monte Carlo Landau Coupe 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Turbocharged
• 1979-1981 Chevrolet Monte Carlo Landau Coupe 2-Door 4.4L 267Cu. In. V8 GAS OHV Naturally Aspirated
• 1978-1981 Chevrolet Monte Carlo Landau Coupe 2-Door 5.0L 305Cu. In. V8 GAS OHV Naturally Aspirated
• 1986-1988 Chevrolet Monte Carlo LS Coupe 2-Door 4.3L 262Cu. In. V6 GAS OHV Naturally Aspirated
• 1986-1988 Chevrolet Monte Carlo LS Coupe 2-Door 5.0L 305Cu. In. V8 GAS OHV Naturally Aspirated
• 1978 Chevrolet Monte Carlo Sport Coupe 2-Door 3.3L 200Cu. In. V6 GAS OHV Naturally Aspirated
• 1980 Chevrolet Monte Carlo Sport Coupe 2-Door 3.8L 229Cu. In. V6 GAS OHV Naturally Aspirated
• 1978 Chevrolet Monte Carlo Sport Coupe 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
• 1980 Chevrolet Monte Carlo Sport Coupe 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
• 1980 Chevrolet Monte Carlo Sport Coupe 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Turbocharged
• 1980 Chevrolet Monte Carlo Sport Coupe 2-Door 4.4L 267Cu. In. V8 GAS OHV Naturally Aspirated
• 1978 Chevrolet Monte Carlo Sport Coupe 2-Door 5.0L 305Cu. In. V8 GAS OHV Naturally Aspirated
• 1980 Chevrolet Monte Carlo Sport Coupe 2-Door 5.0L 305Cu. In. V8 GAS OHV Naturally Aspirated
• 1983-1988 Chevrolet Monte Carlo SS Coupe 2-Door 5.0L 305Cu. In. V8 GAS OHV Naturally Aspirated
• 1983 Chevrolet Monte Carlo SS Coupe 2-Door 5.7L 350Cu. In. V8 DIESEL OHV Naturally Aspirated

Note: Image is for reference only, actual product may vary slightly.
