High Lifter Premium Snorkel Gear Transmission Tool HL-TOOL-P-ST-3

NOTES:

This tool is designed by High Lifter to help you properly remove or tighten the snorkel gear tube when replacing or upgrading the front output/snorkel shaft and output/snorkel gear in the main gear case. It can also be used to check the backlash on the output/snorkel gear in Polaris transmissions. This tool is a superior design and the most comprehensive on the market.

• Hardened 5140 alloy steel components with zinc finish.
• Tool body accepts a 40mm wrench or socket as well as a 1/2in square drive to aid in installation and removal.
• 3 heads to adapt the tool for different applications.
• Two heads machined and one with replaceable extended tip set screws.
• 2 thread cleaning taps to remove chips and burs from transmission case.
• Components secured with 8mm grade 12.9 bolts.
• Pins to aid in tool assembly.
• Installation tools and hardware included with replacement pins and bolts.
• Main tool has precision pins align the pin slots in the snorkel gear nut.
• Constructed of plain carbon steel, with 5 dowel pins for easy insertion.
• Smooth chrome finish for easy cleaning.
• Additional interchangeable caps that allow the tool to work on multiple transmissions.
• Caps have alignment pins and magnets to lock and secure them to the main tool.
• Makes for easy change out! Can be used with a 1/2" square drive ratchet for easy removal or insertion of the snorkel tube.

Brand: High Lifter
Part Number: HL-TOOL-P-ST-3

Fitment:

• 2022-2023 Polaris RZR XP 1000 Premium
• 2022-2023 Polaris RZR XP 1000 Sport
• 2023 Polaris RZR XP 1000 Ultimate
• 2022-2023 Polaris RZR XP 4 1000 Premium
• 2022-2023 Polaris RZR XP 4 1000 Sport
• 2023 Polaris RZR XP 4 1000 Ultimate

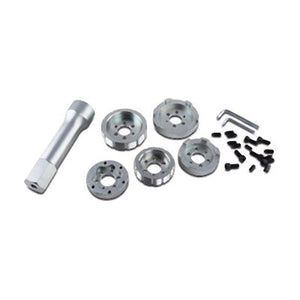

Note: Image is for reference only, actual product may vary slightly.
