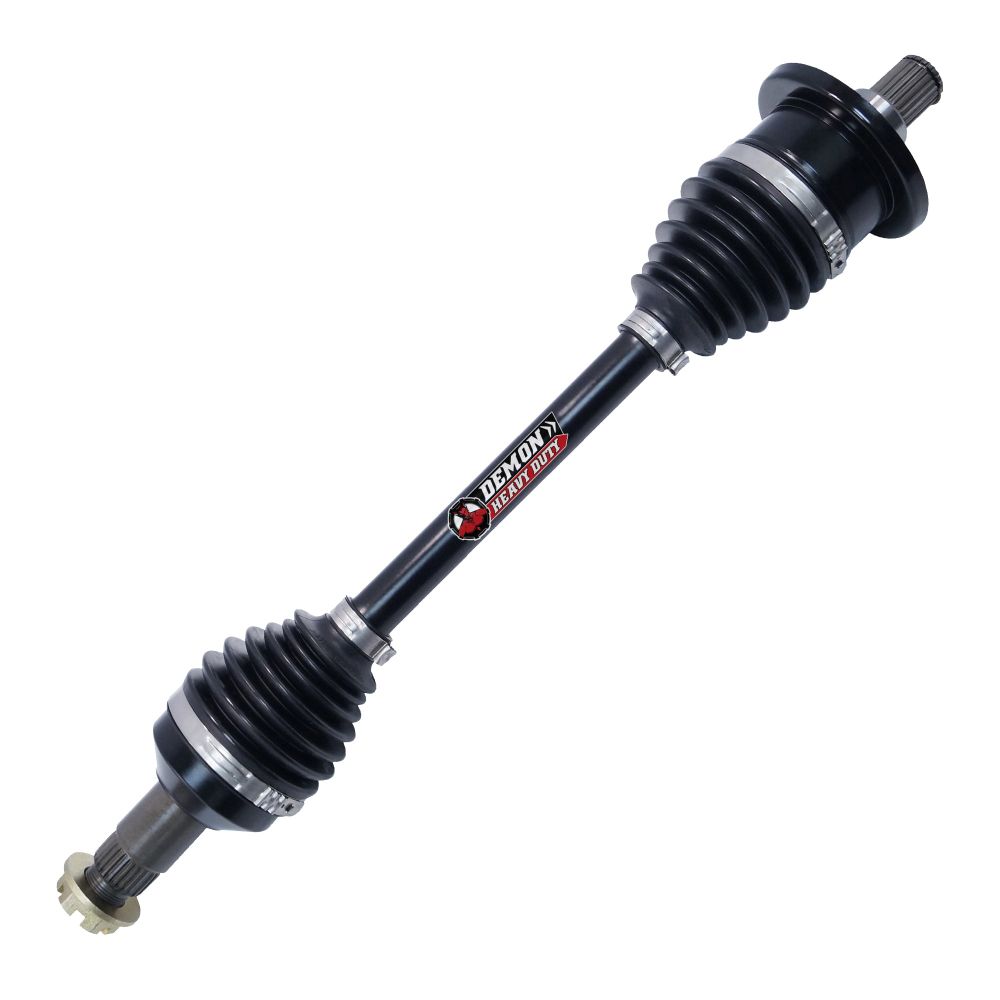

Demon Heavy Duty Axle For Arctic Cat Models 2006-2008 PAXL-2015HD

NOTES:

Through years of research and development Demon Powersports has developed an axle that doesn?t burn a hole in your pocket and adheres to the highest quality standards. These axles are bigger, beefier, and stronger. Demon Heavy Duty Axles are built using larger CV joints and shafts, paired with our proprietary dual heat treatment process, and 4340 Chromoly Steel inner CV cage gives these the axles the edge it needs for superior strength and longevity. These axles also utilize a unique double plunge design which allows it to achieve higher articulation angles approximately, the axles are designed to slide on the bar splines allowing for 1.5 inches of travel and 40? articulation over terrain on the inboard joint. The outboard joint can travel 0.5inches and swing from 45?-47? depending on the model. The Demon heavy duty axles are equipped The TPEE (Thermoplastic polyester elastomer) boots which are stronger, stiffer, more fatigue resistant, puncture resistant, and more temperature resistant than a standard OEM boot. Axles use molybdenum grease to provide low friction and smooth motion.Trust in Demon Heavy Duty Axles to keep you riding!!

Four axles are required per vehicle

• 15%-20% increase in diameter compared to regular axle
• Inner cage made up of 4340 chromoly steel
• Dual heat treated high strength chromoly steel shaft
• Thermoplastic polyester elastomer (TPEE) Boot
• 10%-15% increase in CV joint size compared to regular joints
• Wider articulation angles
• Dual plunge design prevents axle from binding
• Packed with high load molybdenum grease Precision CNC machined
• Can Fit 1.5?- 5? Bracket lift of particular brands/ All Portal Gear Lifts / 1.5?- 5? A-arms of particular brands
• 1-year ltd warranty

Brand: Demon
Part Number: PAXL-2015HD

Fitment:

• 2006-2008 Arctic Cat 400 4X4
• 2006-2008 Arctic Cat 400 4x4 Automatic
• 2006-2007 Arctic Cat 400 4x4 LE Automatic
• 2006 Arctic Cat 400 4x4 TBX Automatic
• 2006-2010 Arctic Cat 400 4x4 TRV Automatic
• 2007 Arctic Cat 400 4x4 TRV Plus Automatic
• 2013 Arctic Cat 400 TRV CR
• 2012 Arctic Cat 450 4X4
• 2010-2011 Arctic Cat 450 4x4 H1 Automatic EFI
• 2011 Arctic Cat 450 4x4 TRV EFI
• 2012 Arctic Cat 450 4x4 TRV EFI
• 2012 Arctic Cat 450 4x4 TRV GT EFI
• 2011 Arctic Cat 450
• 2006-2008 Arctic Cat 500 4X4 FIS
• 2009 Arctic Cat 500 4X4
• 2006-2008 Arctic Cat 500 4x4 Automatic FIS
• 2009 Arctic Cat 500 4x4 Automatic
• 2006 Arctic Cat 500 4x4 TBX Automatic
• 2014 Arctic Cat 500 4x4 TRV
• 2007-2008 Arctic Cat 500 4x4 TRV Automatic
• 2013-2014 Arctic Cat 500 4x4 XT
• 2014 Arctic Cat 500
• 2013 Arctic Cat 550 4X4 Core
• 2011 Arctic Cat 550 4x4 Automatic
• 2011-2012 Arctic Cat 550 4x4 GT EFI
• 2009-2010 Arctic Cat 550 4x4 H1 Automatic EFI
• 2009-2010 Arctic Cat 550 4x4 LE Automatic
• 2014 Arctic Cat 550 4x4 Limited
• 2011-2013 Arctic Cat 550 4x4 LTD EFI
• 2009-2010 Arctic Cat 550 4x4 TRV Automatic
• 2011 Arctic Cat 550 4x4 TRV Cruiser EFI
• 2012 Arctic Cat 550 4x4 TRV Cruiser EFI
• 2011 Arctic Cat 550 4x4 TRV GT
• 2012 Arctic Cat 550 4x4 TRV GT
• 2009 Arctic Cat 550 4x4 TRV LE Automatic
• 2013-2014 Arctic Cat 550 4x4 TRV Limited
• 2013-2014 Arctic Cat 550 4x4 TRV XT
• 2013-2014 Arctic Cat 550 4x4 XT
• 2014 Arctic Cat 550
• 2010 Arctic Cat 650 4x4 H1 Automatic
• 2007-2008 Arctic Cat 650 4x4 H1 Automatic
• 2007 Arctic Cat 650 4x4 H1 LE Automatic
• 2010 Arctic Cat 650 4x4 H1 MudPro Automatic
• 2007-2009 Arctic Cat 650 4x4 H1 TBX Automatic
• 2009 Arctic Cat 650 4x4 H1 TRV Automatic
• 2007-2008 Arctic Cat 650 4x4 H1 TRV Plus Automatic
• 2007 Arctic Cat 650 4x4 H1 TRV Plus LE Automatic
• 2006 Arctic Cat 650 4x4 V2 Automatic
• 2006 Arctic Cat 650 4x4 V2 Tony Stewart Automatic LE
• 2013 Arctic Cat 700 4X4 Core
• 2012 Arctic Cat 700 4X4
• 2007-2008 Arctic Cat 700 4x4 Automatic Diesel
• 2007-2008 Arctic Cat 700 4x4 Automatic EFI
• 2012 Arctic Cat 700 4x4 GT EFI
• 2009-2010 Arctic Cat 700 4x4 H1 Automatic EFI
• 2009-2010 Arctic Cat 700 4x4 H1 LE Automatic EFI
• 2009-2010 Arctic Cat 700 4x4 H1 MudPro Automatic EFI
• 2006 Arctic Cat 700 4x4 H1 SE Automatic EFI
• 2008-2009 Arctic Cat 700 4x4 H1 SE Automatic EFI
• 2010 Arctic Cat 700 4x4 H1 TBX Automatic EFI
• 2010-2011 Arctic Cat 700 4x4 H1 TRV Automatic EFI
• 2007 Arctic Cat 700 4x4 LE Automatic EFI
• 2011 Arctic Cat 700 4x4 LTD EFI
• 2014 Arctic Cat 700 4x4 LTD EFI
• 2012-2013 Arctic Cat 700 4x4 LTD EFI
• 2008 Arctic Cat 700 4x4 M4 Automatic EFI
• 2011-2014 Arctic Cat 700 4x4 Super Duty Diesel
• 2012 Arctic Cat 700 4x4 TBX GT EFI
• 2011 Arctic Cat 700 4x4 TBX LTD
• 2013 Arctic Cat 700 4x4 TBX XT
• 2012 Arctic Cat 700 4x4 TRV Cruiser
• 2008-2011 Arctic Cat 700 4x4 TRV Cruiser Automatic EFI
• 2012 Arctic Cat 700 4x4 TRV GT
• 2010-2011 Arctic Cat 700 4x4 TRV GT
• 2008 Arctic Cat 700 4x4 TRV LE Automatic EFI
• 2013-2014 Arctic Cat 700 4x4 TRV Limited
• 2013-2014 Arctic Cat 700 4x4 TRV XT
• 2013-2014 Arctic Cat 700 4x4 XT
• 2011 Arctic Cat 700
• 2014 Arctic Cat 700
• 2010 Arctic Cat 1000 4x4 H2 MudPro Automatic EFI
• 2010 Arctic Cat 1000 4x4 H2 TRV Cruiser EFI Automatic
• 2009-2010 Arctic Cat 1000 4x4 TRV Cruiser
• 2010 Arctic Cat 550S 4x4 H1 EFI
• 2010 Arctic Cat 550S 4x4 H1 TRV GT EFI
• 2010-2011 Arctic Cat 700S 4x4 H1 EFI
• 2014 Arctic Cat TBX 700
• 2008-2010 Arctic Cat Thunder Cat 4x4 Automatic 1000
• 2010 Arctic Cat Thunder Cat 4x4 Automatic 1000 LE

Note: Image is for reference only, actual product may vary slightly.
