High Lifter 6" Portal Gear Lift With 60% Dual Idler PGL-660DI-C1D

NOTES:

What are the Dual Idlers with 60% Reduction Kit? High Lifter has engineered is a gearing setup that allows us to place two idler gears in the portal gear box. Our competitor only has a single gear option with their greatest reduction at 45%. The dual idler gears spread the load between twice as many teeth on the gears, which doubles the area and reduces stress by half allowing more abuse. Like any other portal kit there will be a reduction in top speed when running the 6' Dual 60% gears. This kit is for riders who are looking for torque and power. The dual 60% is perfect for the hardcore mud rider that wants to hit the holes hard and come out on the other side!

What does the 60% Dual Idler Gear Lift offer?

• High Lifter improved the portal design by adding a second idler gear in the gear box
• The dual idler gears spread the load over twice as many teeth on the gear sets, which doubles the area and reduces stress by half.
• You gain more reliable torque transfer
• If you run a 40€ tire or larger, this is the ideal gear ratio and the dual idler gears are almost a must
• Stop burning up belts and breaking so many axles; differentials; drive shafts; snorkel gears€¦
• 60% Gearing extends brake life by needing brakes less often due to greatly improved engine braking
• Even though a lower gear ratio will get your speedometer closer to a stock reading, that is still too high a gear to offset the loss of torque caused by the larger tires. If you don€™t have a need to run fast, a lower ratio performs better and give you the power you want!

Why is this 6€ kit better than our competitor?

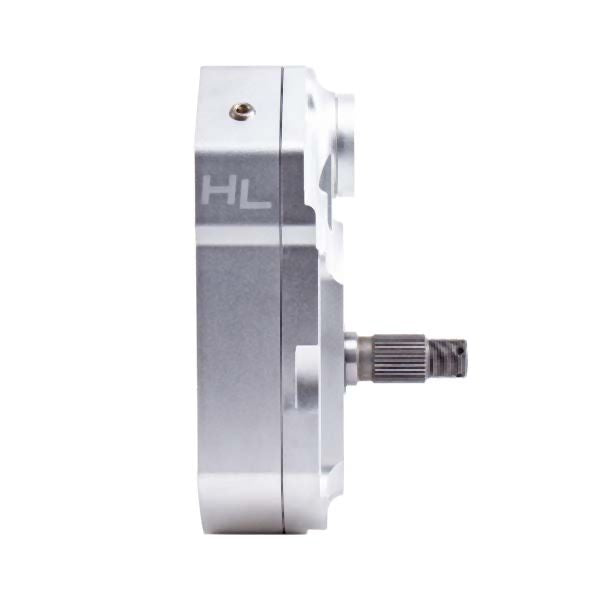

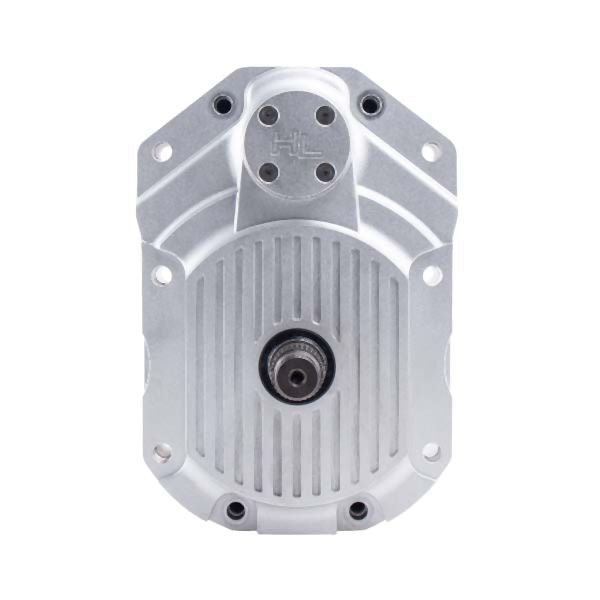

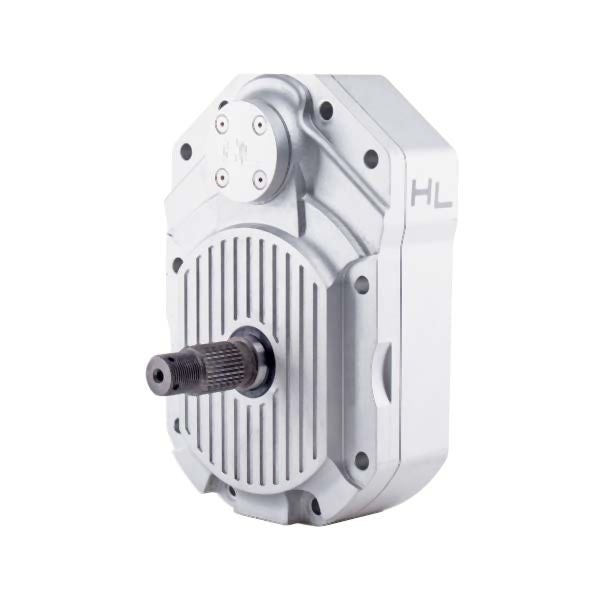

Forged Gear Boxes

• Strongest boxes on the market because forging produces a tougher piece of metal
• Forging is stronger than both cast and billet aluminum
• Competitors use cast aluminum and billet aluminum boxes
• These portal boxes are extremely robust and give you more worry-free miles than any other portal

Gear Box Venting

• Customers asked for box venting and we give you the option
• Our box design offers a plug for venting with an optional easy to install kit that will be available soon
• Vent kits allow an advantage of cooling which reduces early deterioration of the gaskets and seals

Gasket Material and Design

• High density Kevlar fiber gaskets plus no additional sealant is needed
• Gasket material is creep resistant plus oil and coolant resistant

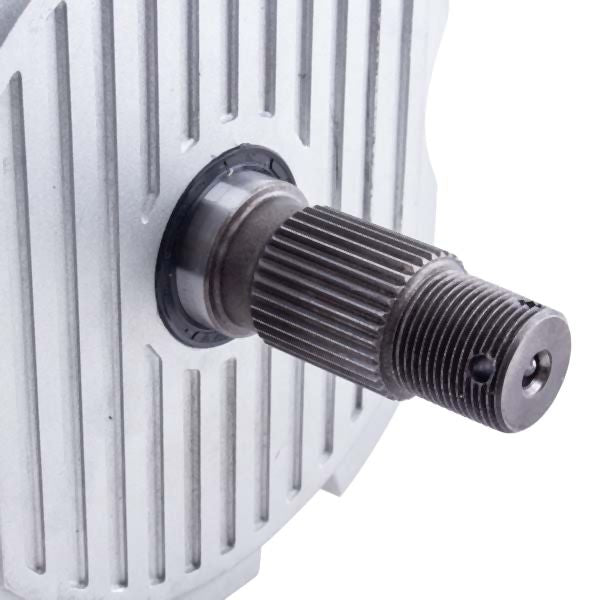

Seals

• Two oil seals on the spindle shaft for 100% more sealing area
• Dual seals prevent water intrusion and oil leaks
• True triple seal on the input shaft which includes a wiper seal that provides a significant extra layer of protection

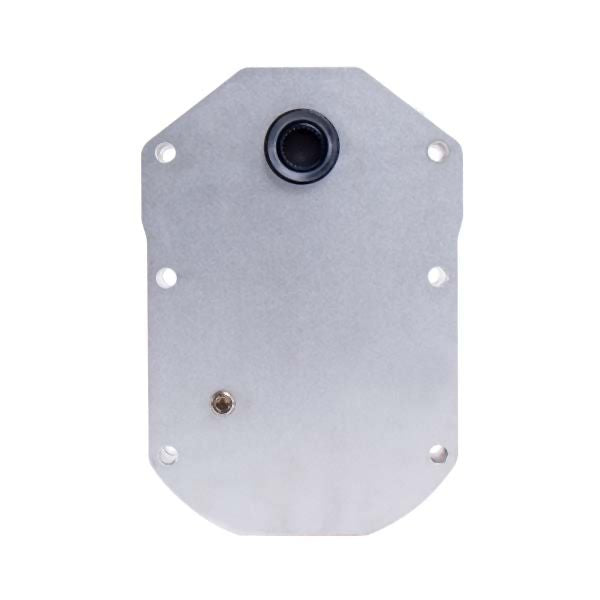

Backing Plate

• These are the strongest backing plates on the market
• 5/16€ steel plate with Bent flanges for strength and durability
• Welded gusset brackets and designed to factory off-set
• Works with all control arms that are built to factory hub specifications

13€ Rotor

• Precision ground stainless steel rotors (this is a big deal for brake performance)
• Access holes for ease of assembly and disassembly
• Slotted rotor allows for heat dissipation and cooling

Gear Profile

• Alloy steel heat treating process increases overall internal and external strength
• CNC precision ground machining ensures excellent fitment and increased strength
• Controlled gear lapping for ease of installation and a quieter performance

Brand: High Lifter
Part Number: PGL-660DI-C1D

Fitment:

• 2016-2018 Can-Am Defender HD10 4X4
• 2016-2021 Can-Am Defender HD10 4x4 DPS
• 2020 Can-Am Defender HD10 4x4 Mossy Oak Hunting Edition DPS
• 2018-2021 Can-Am Defender HD10 4x4 XMR
• 2016-2020 Can-Am Defender HD10 4x4 XT Cab DPS
• 2018 Can-Am Defender HD10 4x4 XT Cab DPS CAB
• 2020 Can-Am Defender HD10 4x4 XT Cab DPS CAB
• 2016-2021 Can-Am Defender HD10 4x4 XT DPS
• 2018-2020 Can-Am Defender HD10 4x4 XTP
• 2021 Can-Am Defender HD10 6x6 Limited CAB
• 2021 Can-Am Defender HD10 6x6 Limited
• 2017 Can-Am Defender HD10 6x6 XT
• 2020-2021 Can-Am Defender HD5 4X4
• 2020-2021 Can-Am Defender HD5 4x4 DPS
• 2017 Can-Am Defender HD8 4X4 Base
• 2016-2021 Can-Am Defender HD8 4X4
• 2019 Can-Am Defender HD8 4x4 Cab DPS
• 2021 Can-Am Defender HD8 4x4 Cab DPS
• 2016-2021 Can-Am Defender HD8 4x4 DPS
• 2018-2020 Can-Am Defender HD8 4x4 XT Cab DPS
• 2016-2021 Can-Am Defender HD8 4x4 XT DPS

Note: Image is for reference only, actual product may vary slightly.
