High Lifter Premium Snorkel Gear Transmission Tool HL-TOOL-P-ST-3
High Lifter Premium Snorkel Gear Transmission Tool HL-TOOL-P-ST-3
NOTES:
This tool is designed by High Lifter to help you properly remove or tighten the snorkel gear tube when replacing or upgrading the front output/snorkel shaft and output/snorkel gear in the main gear case. It can also be used to check the backlash on the output/snorkel gear in Polaris transmissions. This tool is a superior design and the most comprehensive on the market.
Description:
- Hardened 5140 alloy steel components with zinc finish.
- Tool body accepts a 40mm wrench or socket as well as a 1/2in square drive to aid in installation and removal.
- 3 heads to adapt the tool for different applications.
- Two heads machined and one with replaceable extended tip set screws.
- 2 thread cleaning taps to remove chips and burs from transmission case.
- Components secured with 8mm grade 12.9 bolts.
- Pins to aid in tool assembly.
- Installation tools and hardware included with replacement pins and bolts.
- Main tool has precision pins align the pin slots in the snorkel gear nut.
- Constructed of plain carbon steel, with 5 dowel pins for easy insertion.
- Smooth chrome finish for easy cleaning.
- Additional interchangeable caps that allow the tool to work on multiple transmissions.
- Caps have alignment pins and magnets to lock and secure them to the main tool.
- Makes for easy change out! Can be used with a 1/2" square drive ratchet for easy removal or insertion of the snorkel tube.
Brand: High Lifter
Part Number: HL-TOOL-P-ST-3
Fitment:
- 2022-2023 Polaris RZR XP 1000 Premium
- 2022-2023 Polaris RZR XP 1000 Sport
- 2023 Polaris RZR XP 1000 Ultimate
- 2022-2023 Polaris RZR XP 4 1000 Premium
- 2022-2023 Polaris RZR XP 4 1000 Sport
- 2023 Polaris RZR XP 4 1000 Ultimate

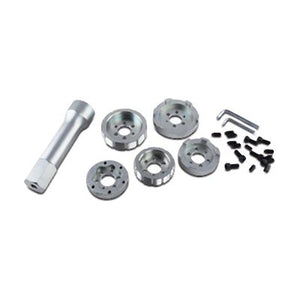

Note: Image is for reference only, actual product may vary slightly.
