KFI UTV Snow Plow Kit For Kawasaki Mule SX KAF400/4x4 XC 2014-2026
NOTES:
Introducing the ultimate snow plow kit: Conquer winter with ease using our high-performance snow plow kit. Designed for efficiency and durability, it effortlessly clears snow from driveways and pathways, ensuring hassle-free winters for years to come. We recommend measuring from outside to outside tire to ensure your blade is the proper size for your vehicle. Always size up from your measurement. Includes Mount, Push Tube, and Blade.
Mount Description:
- Grade 50 steel construction.
- Shot-blasted and powder-coated black for supreme durability and a premium finish.
- Easy to install.
- Complete installation instructions and hardware included.
- Made in USA.
NEW UTV Pushtube 2.0 Description:
- Shot-blasted before powder coating in black.
- Six blade pitch adjustment in 5″ increments.
- Heavy-duty 1/4″ grade 50 x 1-1/2″ diameter pivot bushing.
- Uses two 5/8″ pins to mount.
- 3/8″ grade 50 attachment brackets.
- 30″ (or greater) lift height.
- Three position blade, up to 25″ to either side.
- Made in USA.
Steel Blade Description:
- 100% MADE IN USA.
- Pushes snow straight ahead or to the sides up to 25 degrees.
- Added gussets for the wider width.
- The 66″ & 72″ blades include a 7″ high 2-ply top rubber flap.
- Measures 16″ Vertical blade face height with an approximate 21″ height with snow flap.
- Fully-adjustable blade skids with bolt-on brackets.
- Heavy duty 3″-diameter grade-50 steel skid plates.
- Blade Constructed of 11 ga steel.
- 3/16″ Grade 50 Ribbing for a strong bolt-up to the Swivel Tube.
- Unlike all other Plow competitors our Plows are metal bead blasted before they are powder coated Metallic Silver for supreme durability.
- 2-Sided 3/16″ x 3.00″ Grade 50 Steel Wear Bar.
- Wear Bar attached with Heavy Duty Grade 8 Bolts.
- 2-Year KFI Warranty.
Pro-Poly Blade Description:
- Includes a 7″ high 2-ply top rubber flap.
- 100% MADE IN USA.
- Dual Curvature face for supreme snow moving.
- Measures 21in Vertical blade face height with an approximate 7″ height with snow flap.
- Fully-adjustable blade skids with bolt-on brackets.
- Heavy duty 3″-diameter grade-50 steel skid plates.
- Flexible Heavy Duty Black Poly face.
- 3/16in Grade 50 Steel Rib and Frame construction.
- Unlike all other Plow competitors our Plows are metal bead blasted before they are Powder Coated Black for supreme durability.
- 2-Sided 3/16″ x 3.00″ Grade 50 Steel Wear Bar.
- Wear Bar attached with Heavy Duty Grade 8 Bolts.
- Complete installation instructions included.
- Works with KFI ATV & UTV Tubes.
- Includes Plow Markers.
- 2-Year KFI Warranty.
Brand: KFI
Pushtube Part Number: 106300
Mount Part Number: 105875
Fitment:
- 2014-2026 Kawasaki Mule SX
- 2014-2026 Kawasaki Mule SX KAF400
Customer Ratings

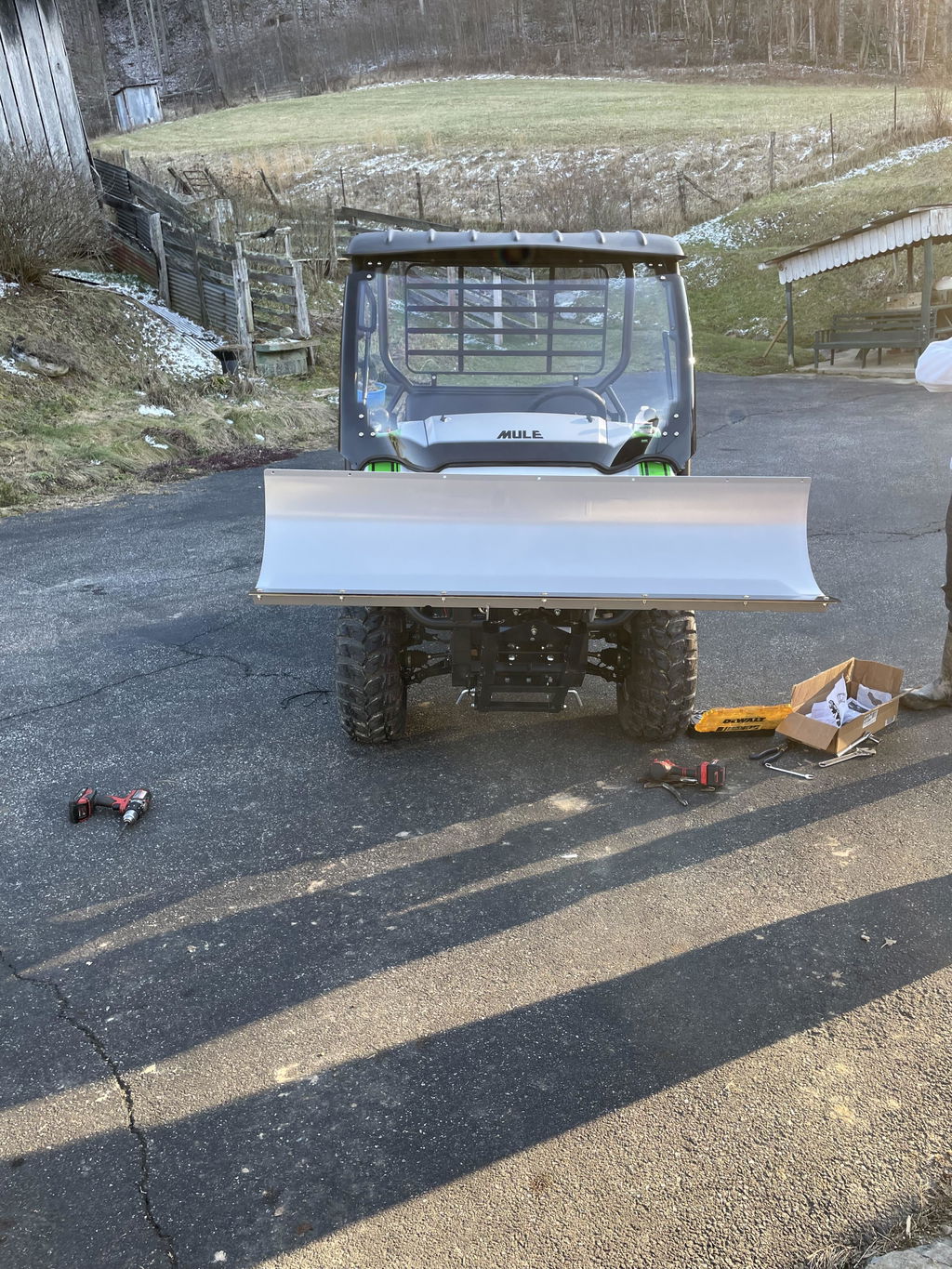

Dealership wanted $3500 bucks for a snow plow setup, this plow was just as nice if not better for a 3rd of the price, very impressive, looks great and gets the job done.
I couldn’t be happier with the snowplow, winch and performance of my Mule SX. The system worked even better than expected with a deep, heavy and wet snow! The installation took a bit more time than expected but I was extremely meticulous. It works perfectly and I would strongly recommend this system. Also,
Customer Service was friendly and extremely helpful!
Does this kit fits the 2024 Mule SX 400 4X4?
Yes, it does fit as the mount that is included in this package is 105875, and that fits models 2017 through 2024 on the SX 400.
Note it is recommend also purchasing the #105270 Plow Pulley if using STEEL cabled winches or #106270 Plow Pulley if using SYNTHETIC cabled winches.
Will this kit fit a Kawasaki mule sx xc fi
2023 model ?
Also how does a winch attach to this?
Thank you
This item: https://lionparts.com/products/kfi-utv-snow-plow-kit-for-kawasaki-mule-sx-kaf400-4x4-xc-2017-2023
Will fit 400 Mule SX / XC years 2017-2024
** = I also recommend purchasing the #105270 Plow Pulley if you are using STEEL cabled winches or the #106270 Plow Pulley if you are using SYNTHETIC cabled winches.
