RMStator Generator Stator RM01006

Brand new stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Connector included
• Rubber grommet included
• All product shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Technical Data

Dimensions :

Interior diameter : 54mm
Exterior diameter : 114mm
Thickness : 28mm
Length of wires stator to grommet : 90mm
Length of wires grommet to plug : 280mm

Other specifications :

Number of wires : 3
Number of plugs : 1
Number of pins : 3

Wire to wire resistance :

Alternator : Yellow between each Yellow = 0.4ohms +/-20%
Alternator : Yellow to Ground = 0.L

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM01006

Fitment:

• 1975-1979 Honda Goldwing 1000 GL1000
• 1980-1983 Honda Goldwing 1100 GL1100
• 1982-1983 Honda Goldwing 1100 GL1100A Aspencade
• 1980-1983 Honda Goldwing 1100 GL1100I Interstate
• 1984-1987 Honda Goldwing 1200 GL1200A Aspencade
• 1984-1987 Honda Goldwing 1200 GL1200I Interstate

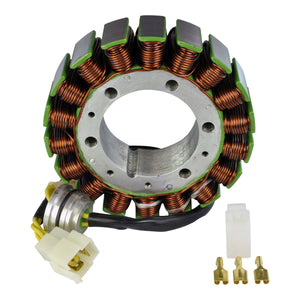

Note: Image is for reference only, actual product may vary slightly.
