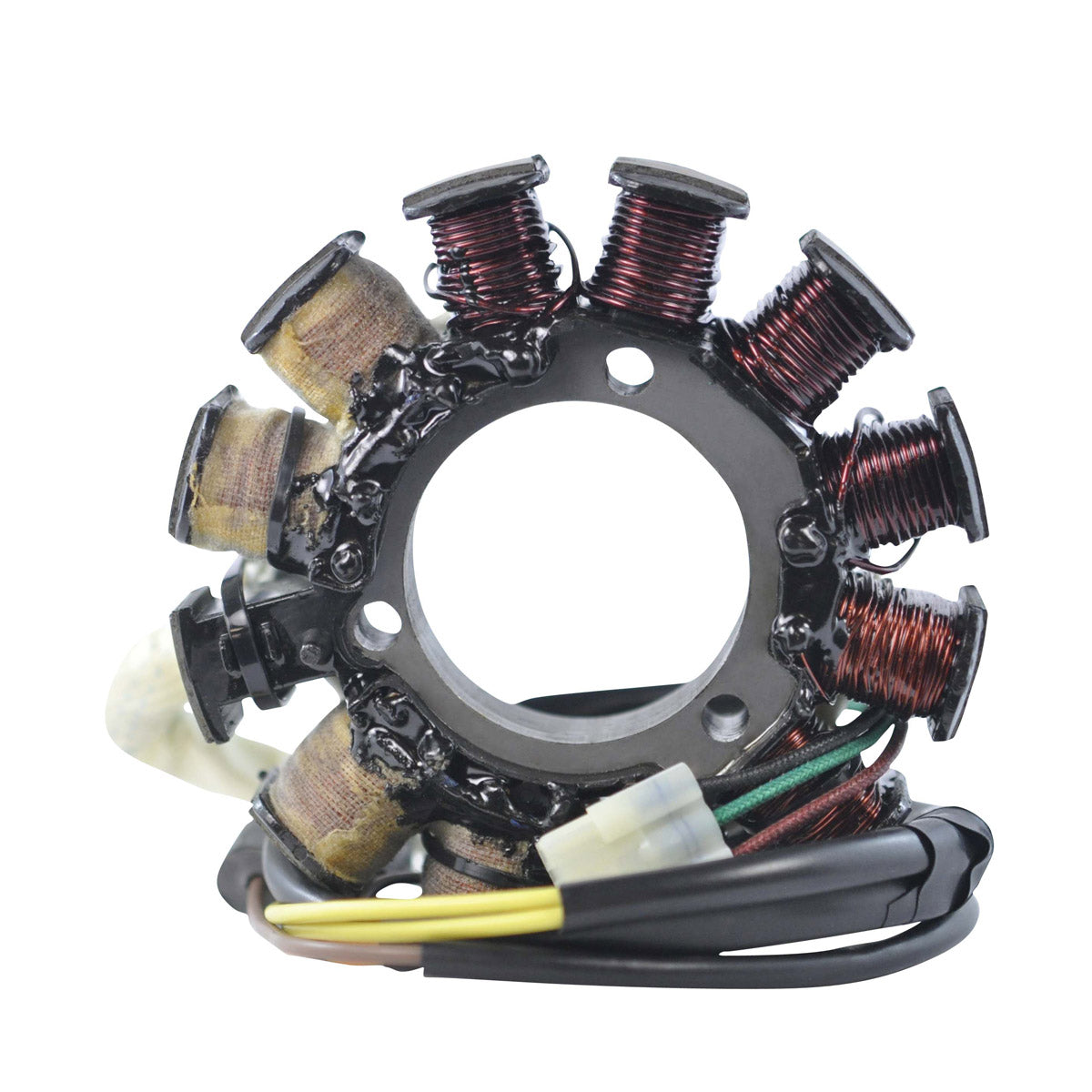

RMStator Stator RM01010

Brand new stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Connector included
• All product shipped are tested

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Technical Data

Dimensions :

Interior diameter : 48 mm
Exterior diameter : 115 mm
Thickness : 21 mm

Other specifications :

Number of wires : 7
Number of pins : 10

Wire to wire resistance :

Alternator : Yellow to Yellow = 0.2 ohms+/-20%
Fuel Pump : White/Blue to White/Blue = 17.2 ohms+/-20%
Hand Warmer Coils : Orange to Orange = 2 ohms+/-20%
Source Coil 1 : Green to Brown = 10 ohms+/-20%
Source Coil 2 : Green to Black = 10 ohms+/-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM01010

Fitment:

• 2001 Arctic Cat Mountain Cat 500 EFI L/C
• 2001-2004 Arctic Cat Mountain Cat 600 EFI L/C
• 2002-2005 Arctic Cat Pantera 600 EFI L/C
• 2000 Arctic Cat Powder Special 600 Limited EFI L/C
• 2001 Arctic Cat ZL 500 EFI L/C
• 2000-2003 Arctic Cat ZL 600 EFI L/C
• 2001-2003 Arctic Cat ZL 600 ESR EFI L/C
• 2002 Arctic Cat ZL 600 SS EFI
• 2002-2003 Arctic Cat ZL 600 SS EFI INTL
• 2002-2003 Arctic Cat ZL 600 SS ESR EFI L/C
• 2001 Arctic Cat ZR 500 EFI L/C
• 2001 Arctic Cat ZR 500 ESR EFI L/C
• 2000-2002 Arctic Cat ZR 600 EFI L/C

Note: Image is for reference only, actual product may vary slightly.
