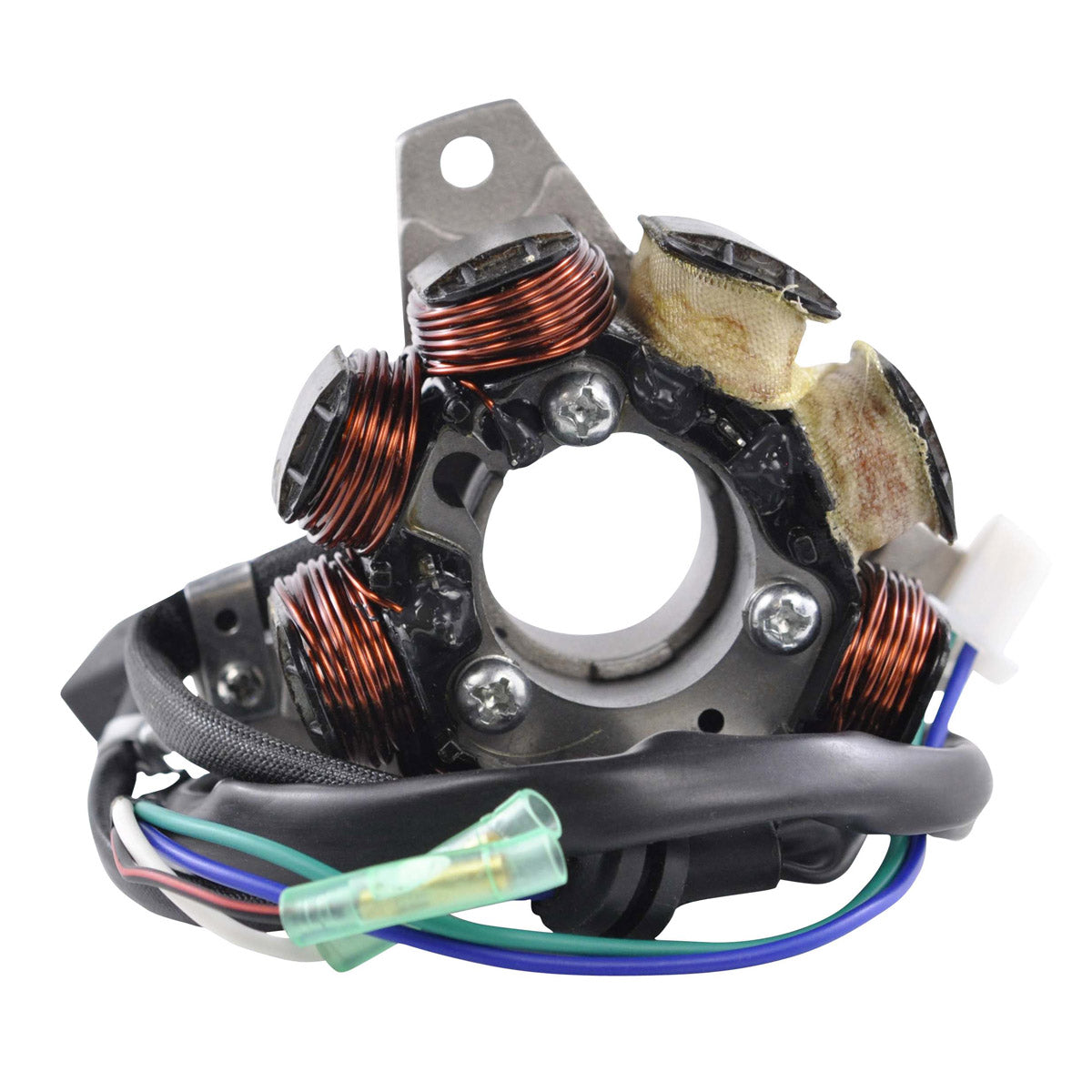

RMStator High Output Performance Stator RM01011
Customer Ratings
RMStator High Output Performance Stator RM01011
RMStator High Output Performance Stator RM01011
Brand new high output aftermarket stator 200W
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- Back Plate included
- All products shipped are tested
20% MORE OUTPUT OVER STOCK, WORKS WITH ALL OTHER OEM COMPONENTS.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Technical Data
Dimensions :
Interior diameter : 34mm
Exterior diameter : 88mm
Thickness : 17mm
Fixation holes center to center : 35mm
Length of wires stator to grommet : 60mm
Length of wires grommet to plug : 60mm & 620mm
Length of pickup coil's wire to grommet : 80mm
Other specifications :
Number of wires : 4
Number of plugs : 3
Number of pins : 4
Wire to wire resistance :
Alternator : White to Ground = 0.4 ohms +/-20%
Pickup : Green to Blue = 115 ohms +/-20%
Source : Black/Red to Ground = 210 ohms +/-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM01011
Fitment:
- 1985-1986 Honda ATC250R
- 1986-1989 Honda FourTrax 250 TRX250R 2x4
Note: Image is for reference only, actual product may vary slightly.
