RMStator High Output Stator RM01013
RMStator High Output Stator RM01013

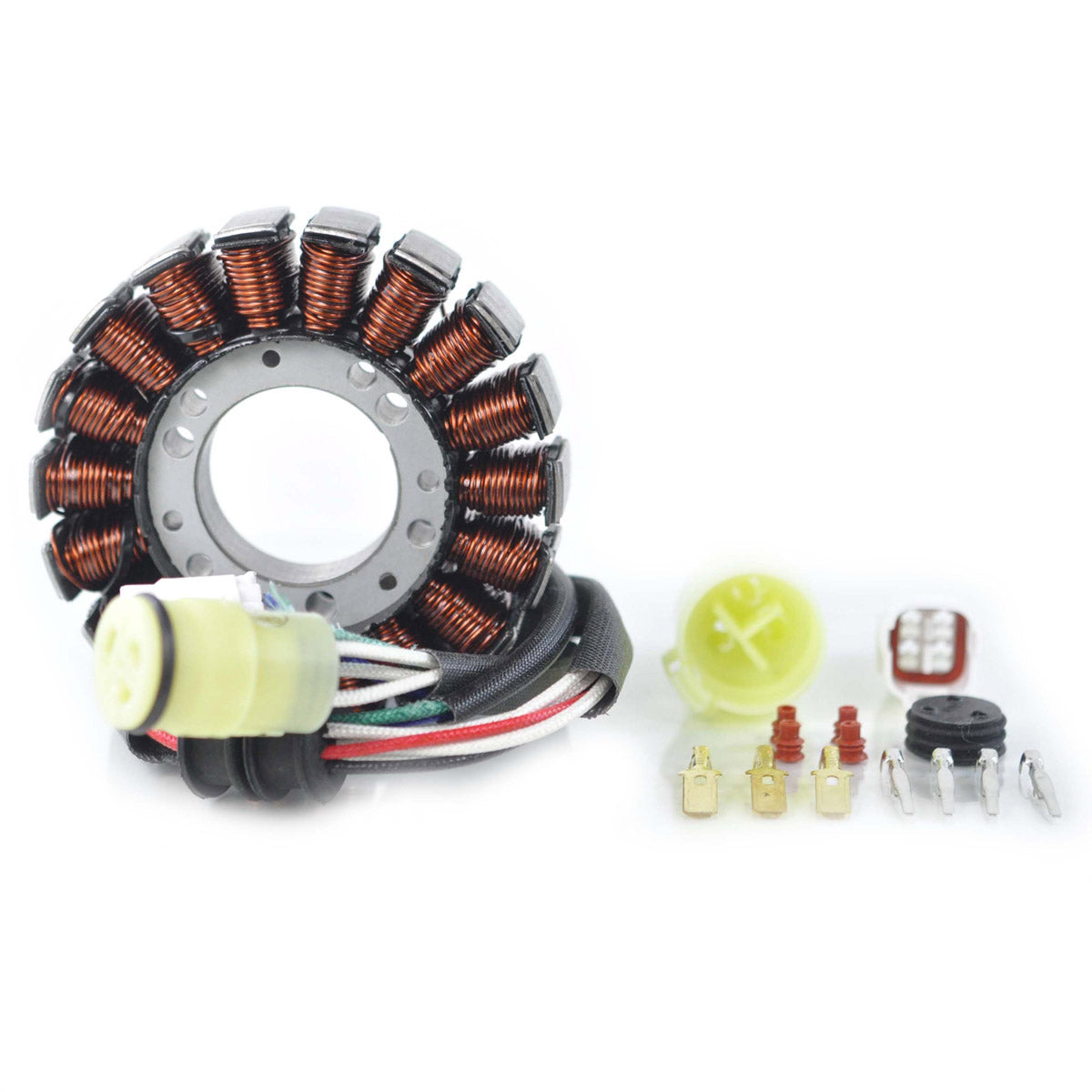

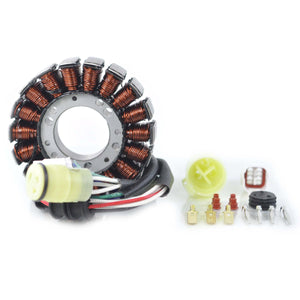

Brand new high output aftermarket stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- All products shipped are tested
20% MORE OUTPUT OVER STOCK, WORKS WITH ALL OTHER OEM COMPONENTS.
We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Technical Data
Dimensions :
Interior diameter : 34mm
Exterior diameter : 94mm
Thickness : 13mm
Length of wires stator to grommet : 155mm
Length of wires grommet to plug : 220mm
Length of pickup coil's wire to grommet : 100mm
Other specifications :
Number of wires : 7
Number of plugs : 2
Number of pins : 7
Wire to wire resistance :
Alternator : White between each White = 0.4ohms +/-20%
Pickup : Blue to Green = 450 ohms +/-20%
Source : Black to Red = 0.1 ohms +/-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM01013
Fitment:
- 2001-2004 Yamaha Bear Tracker 250 YFM250B
- 2007-2009 Yamaha Big Bear 250 YFM250B
- 2005-2006 Yamaha Bruin 250 YFM250B
- 2001-2005 Yamaha Raptor 660R YFM660R
Note: Image is for reference only, actual product may vary slightly.
