RMStator High Output Stator High Output 300 W Stator and Crankcase Cover Gasket 300 W Kit
Customer Ratings
RMStator High Output Stator High Output 300 W Stator and Crankcase Cover Gasket 300 W Kit
RMStator High Output Stator High Output 300 W Stator and Crankcase Cover Gasket 300 W Kit

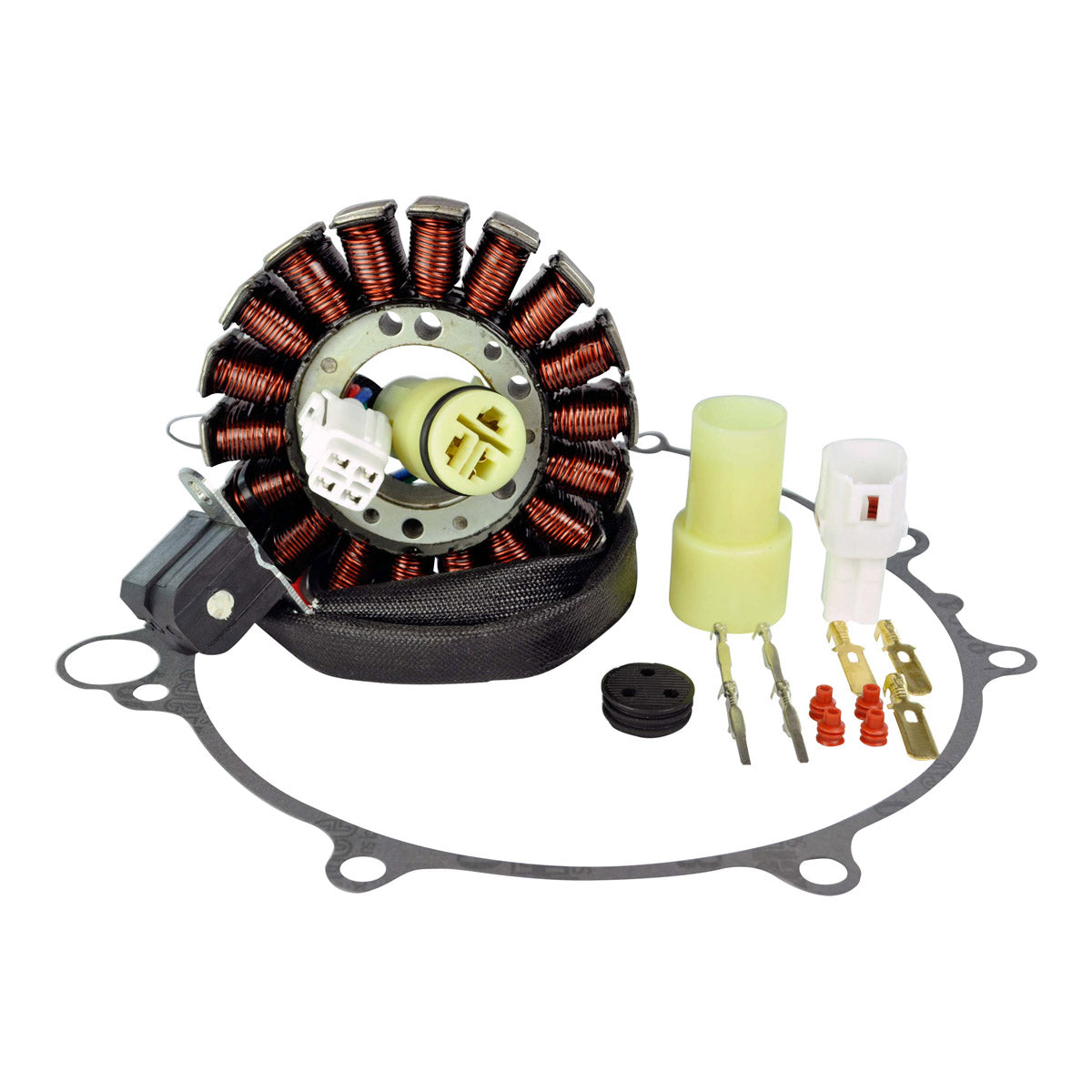

Brand New Kit High Output Stator 300 W + Crankcase Cover Gasket
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- All shipped products are tested
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
High Output Stator 300W:- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.
Technical Data
Stator Dimensions:
Interior diameter : 34 mm
Exterior diameter : 94 mm
Thickness : 13 mm
Length of wires stator to grommet : 180 mm
Length of wires grommet to plug : 220 mm
Length of pickup coil's wire to grommet : 100 mm
Other specifications :
Number of wires : 7
Number of plugs : 2
Number of pins : 7
Wire to wire resistance :
Alternator : White between each White = 0.4 ohms +/-20%
Pickup : Blue to Green = 450 ohms +/-20%
Source : Black to Red = 0.1 ohms +/-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM01013G
Fitment:
- 2001-2005 Yamaha Raptor 660R YFM660R
Note: Image is for reference only, actual product may vary slightly.
