RMStator Alternator Stator RM01014
RMStator Alternator Stator RM01014

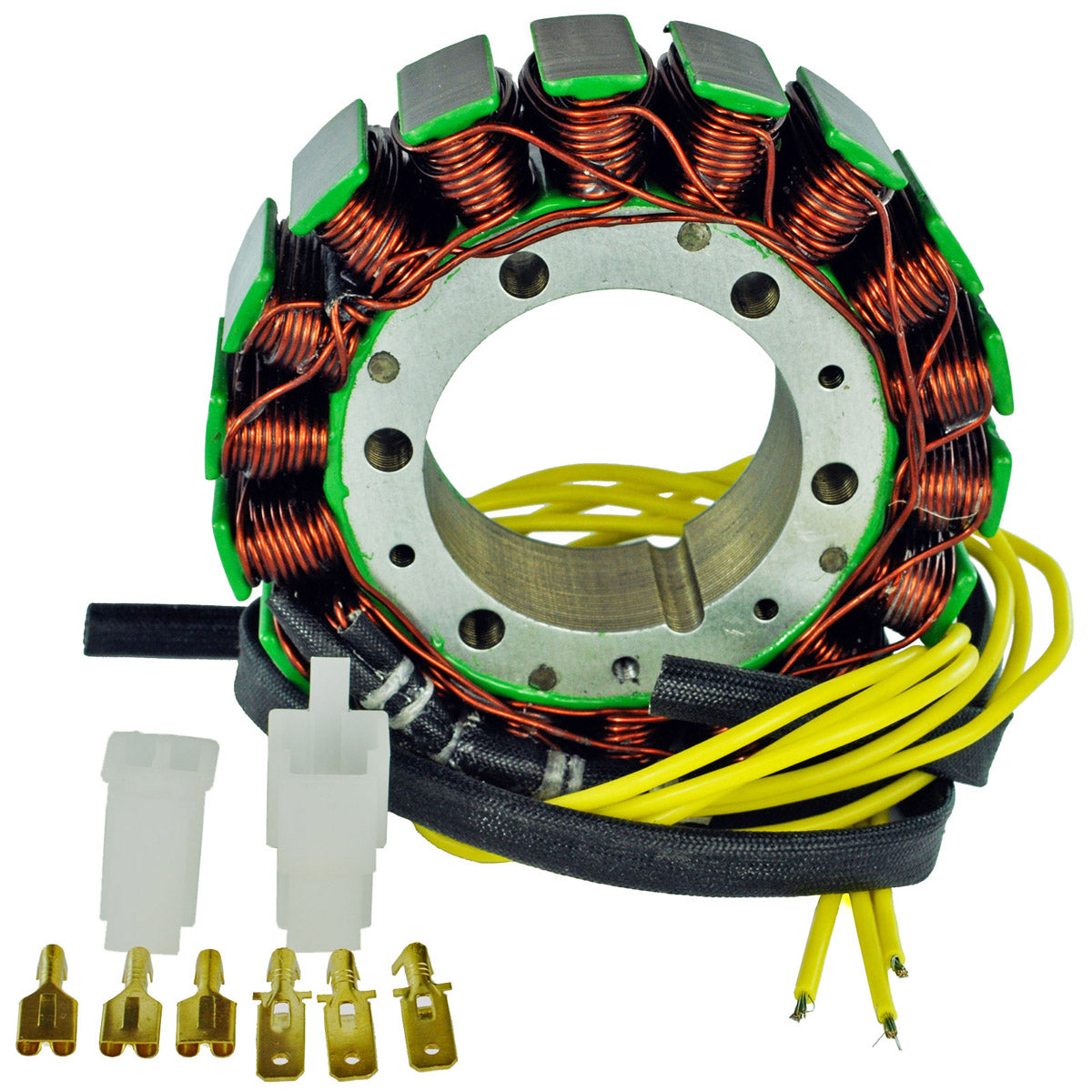

Brand new generator stator
- You must re-install your original grommet (see picture).
- Once your connector and grommet is re-installed, our part becomes a Plug-and-play unit, direct fit, and very easy to install.
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius.
- All product shipped are tested
We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.
*All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Technical Data
Dimensions :
Interior diameter : 53 mm
Exterior diameter : 115 mm
Thickness : 27 mm
Length of wires stator to terminals : 600 mm
Other specifications :
Number of wires : 3
Number of plugs : 0
Number of pins : 3
Wire to wire resistance :
Alternator : Yellow to Yellow = 0.4 ohms +/-20%
Alternator : Yellow to Ground = O.L. on display
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM01014
Fitment:
- 1982 Honda CX500C Custom
- 1982 Honda CX500T Turbo
- 1983 Honda CX650C Custom
- 1983 Honda CX650T Turbo
- 1988-1991 Honda Hawk GT 650 NT650
- 1985-1986 Honda Shadow 1100 VT1100C
- 1983-1985 Honda Shadow 700 VT700C
- 1981-1982 Honda Silver Wing 500 GL500I Interstate
- 1983 Honda Silver Wing 650 GL650I Interstate
- 1985-1986 Suzuki Madura 1200 GV1200GLF
- 1985-1986 Suzuki Madura 700 GV700GLF
- 2003-2007 Suzuki SV1000
- 2003-2007 Suzuki SV1000S
Note: Image is for reference only, actual product may vary slightly.
