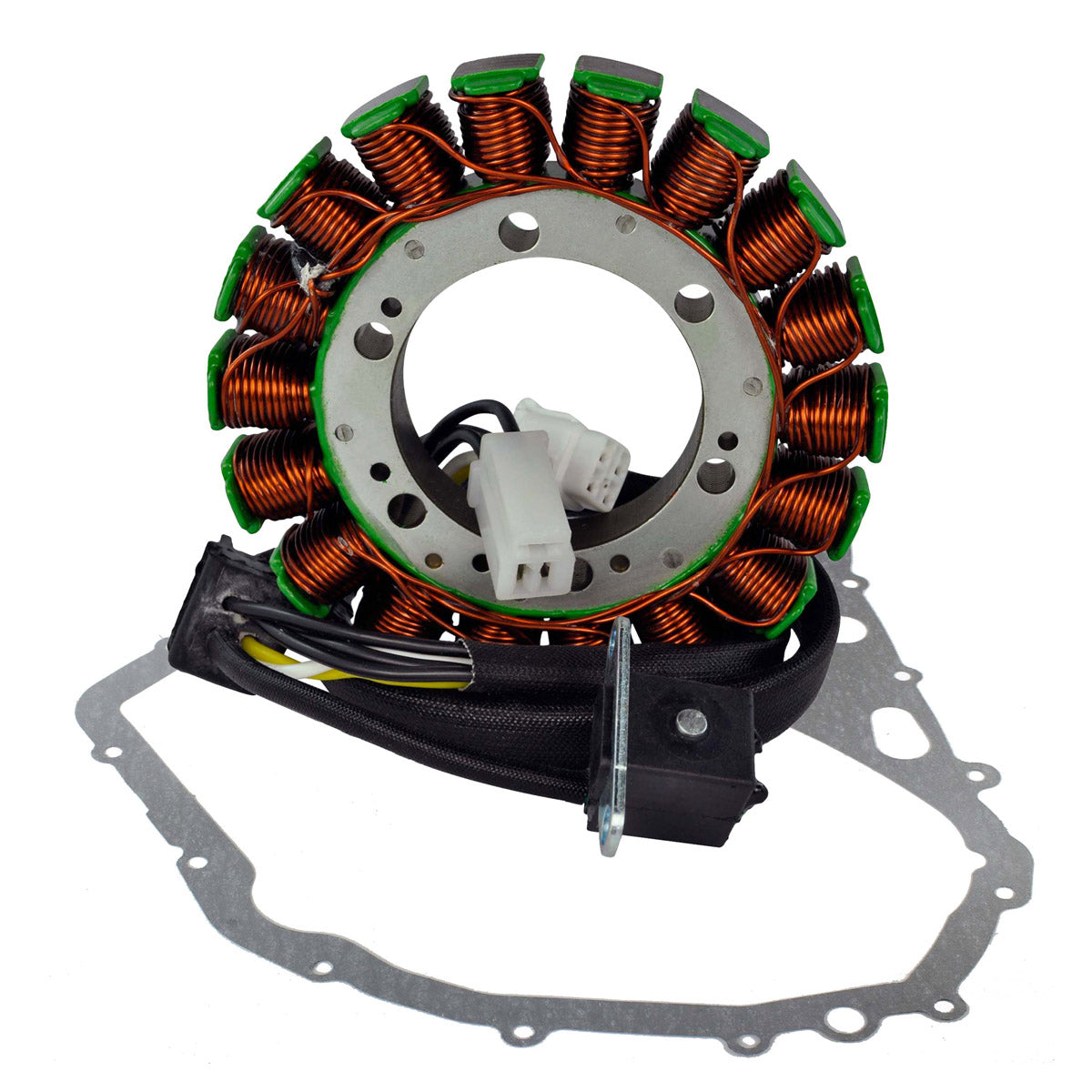

RMStator Stator Stator and Crankcase Cover Gasket Kit RM01015G
Customer Ratings
RMStator Stator Stator and Crankcase Cover Gasket Kit RM01015G
RMStator Stator Stator and Crankcase Cover Gasket Kit RM01015G
Brand new aftermaket Stator + Gasket Kit
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Connector included
- Pick up pulsar coil included
- Rubber grommet included
- Gasket included
- All shipped products are tested
*All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
At RMSTATOR, we believe that proper installation guarantees a longer lifetime. This is why we include a stator cover gasket and a dielectric grease tube.
Consult the connectors circle of death for more information on dielectric grease.
Technical Data
Stator Dimensions :
Interior diameter: 53 mm
Exterior diameter: 119 mm
Thickness: 15 mm
Other specifications:
Number of wires: 7
Number of plugs: 4
Number of pins: 7
Wire to wire resistance:
Alternator : White Between each White = 0.4 ohms+/-20%
Alternator : White to Ground = O.L. ON DISPLAY
Pick up Coil : Blue to green = 200 ohms+/- 20%
Position Sensor :White to yellow = 0.2 ohms+/- 20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM01015G
Fitment:
- 2003-2008 Arctic Cat 400 2x4
- 2002-2007 Suzuki Eiger 400 LTF400 2x4 Manual
Note: Image is for reference only, actual product may vary slightly.
