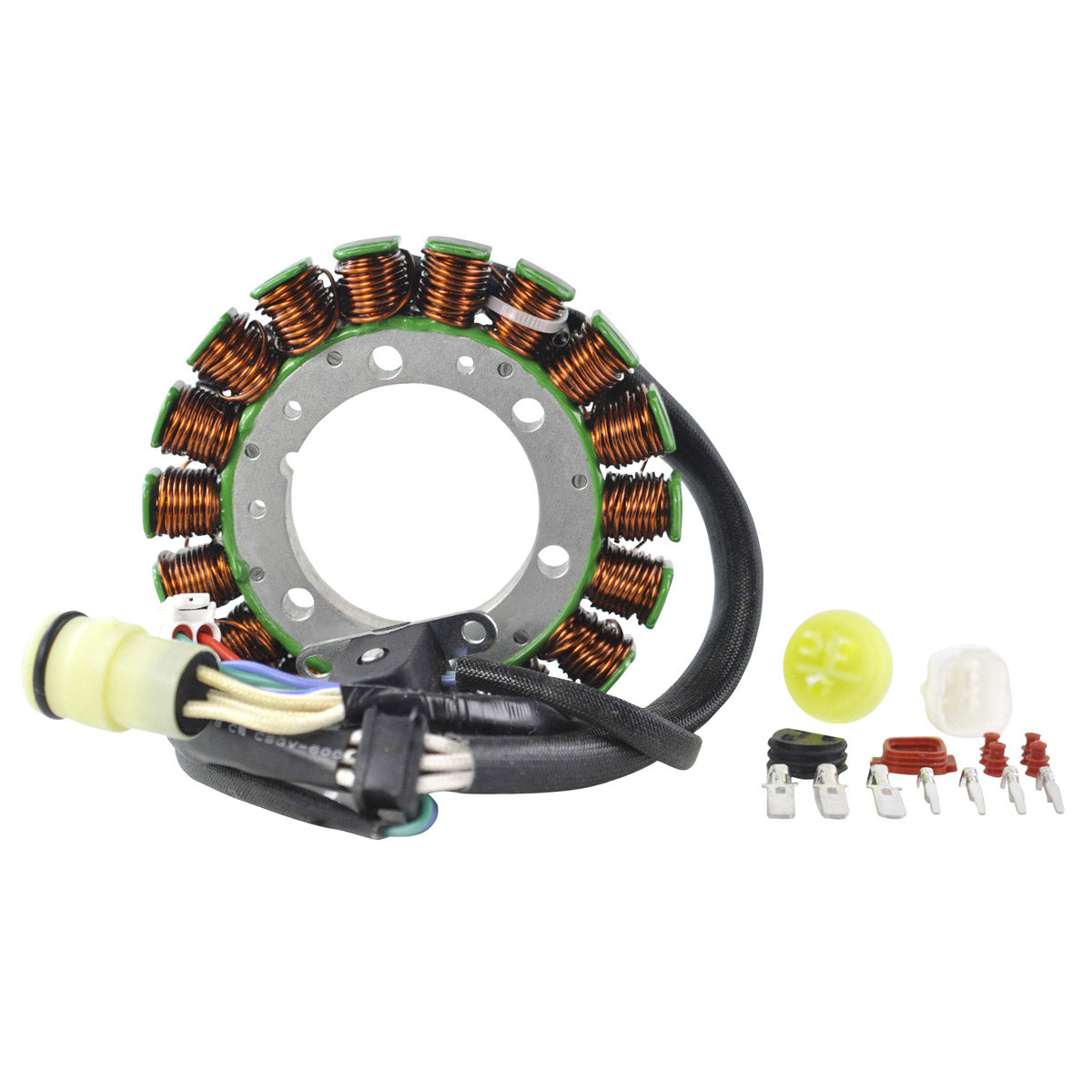

RMStator High Output Stator RM01017
Customer Ratings
RMStator High Output Stator RM01017
RMStator High Output Stator RM01017
Brand new high output aftermarket stator 300 watts
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- All products shipped are tested
We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Technical Data
Dimensions:
Interior diameter: 53 mm
Exterior diameter: 114 mm
Bracket to bracket : 35 mm
Thickness: 13 mm
Other specifications:
Number of wires: 7
Number of plugs: 2
Number of pins: 7
Wire to wire resistance:
Alternator : White between each White = 0.4 ohms+/-20%
Pickup: Green to blue = 518 ohms =+/-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM01017
Fitment:
- 2000 Yamaha Big Bear 350 YFM350FW 4x4
- 2000-2012 Yamaha Big Bear 400 YFM400
- 2007 Yamaha Big Bear 400 YFM400FB 4x4 IRS
- 2004-2013 Yamaha Raptor 350 YFM350R
- 2005-2007 Yamaha Raptor 350 YFM350RSE Special Edition
- 2002-2004 Yamaha Warrior 350 YFM350X
- 2002-2005 Yamaha Wolverine 350 YFM350X
Note: Image is for reference only, actual product may vary slightly.
