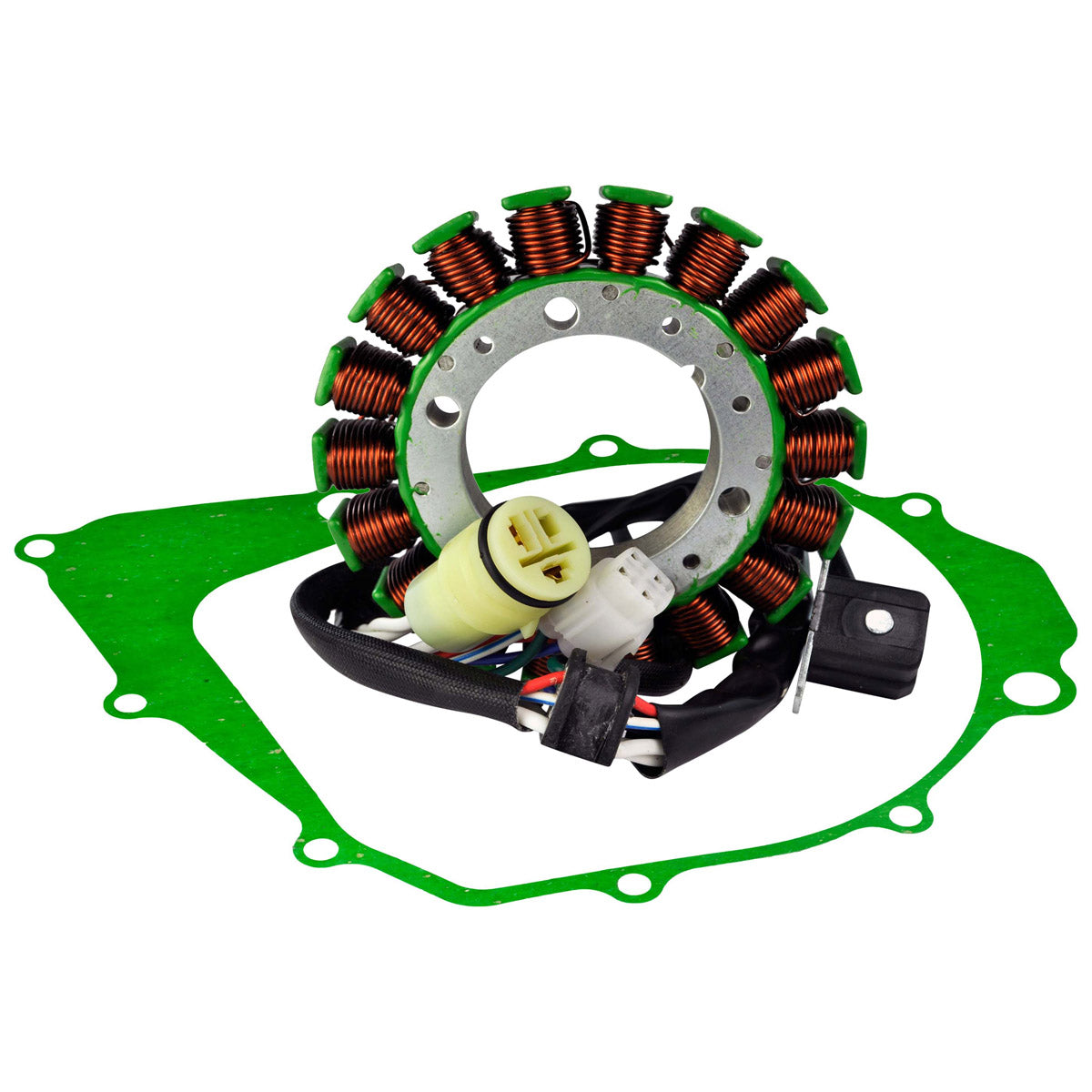

RMStator High Output Stator High Output 300 W Stator and Cover Gasket 300 W Kit

Brand new high ourput stator 300 watts and gasket kit

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• Gasket included
• All product shipped are tested

At RMSTATOR, we believe that proper installation guarantees a longer lifetime. This is why we include, at no extra charge, a stator cover gasket and a dielectric grease tube.
Consult the connector circle of death for more information on dielectric grease.

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Technical Data

Number of wires : 7
Number of terminals : 7
Alternator : White between each White = 0.4 ohms+/-20%
Alternator : White to Ground = O.L. ON DISPLAY
Pick up : Green to Blue = 450 ohms+/-20%
Position Sensor : Orange to White/Blue = 0.2 ohms+/-20%
Interior Diameter : 53mm
Exterior Diameter : 115mm
Thickness: 24mm

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM01017G

Fitment:

• 2004-2013 Yamaha Raptor 350 YFM350R
• 2005-2007 Yamaha Raptor 350 YFM350RSE Special Edition
• 2002-2004 Yamaha Warrior 350 YFM350X

Note: Image is for reference only, actual product may vary slightly.
