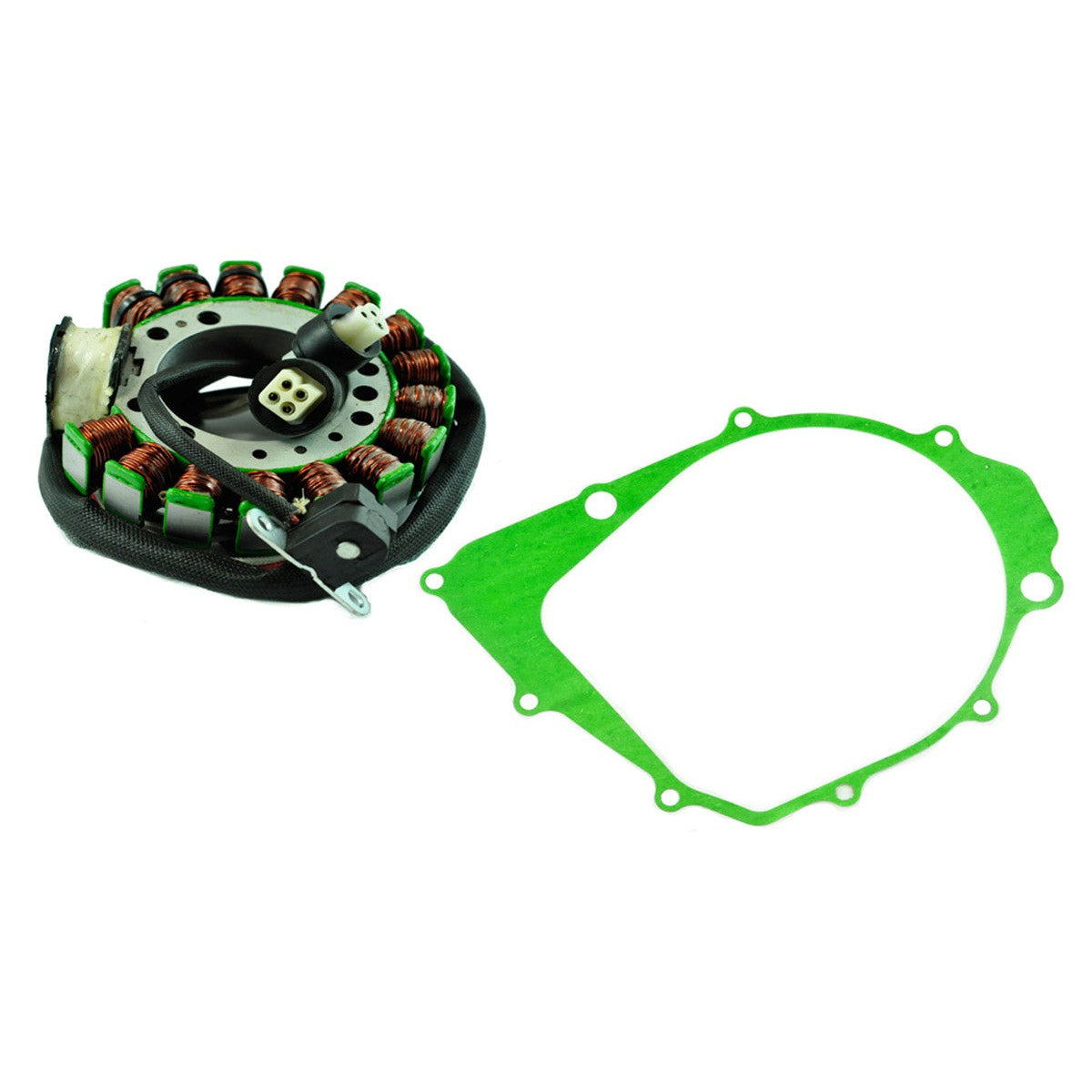

RMStator Stator Kit With And Crankcase Cover Gasket RM01019G

Brand new aftermarket stator + crankcase cover gasket

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• Stator crankcase cover gasket included
• All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Technical Data

Stator Dimensions :
Interior diameter : 53mm
Exterior diameter : 115mm
Thickness : 13mm
Length of wires stator to grommet : 110mm
Length of wires grommet to plug : 500mm
Length of pickup coil's wire to grommet : 130mm

Other specifications :

Number of wires : 7
Number of plugs : 2
Number of pins : 7

Wire to wire resistance :

Alternator : White between each White = 0.4ohms +/-20%
Pickup : White to Red = 570ohms +/-20%
Source : Brown to Green = 315ohms +/-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM01019G

Fitment:

• 1988 Yamaha Big Bear 350 YFM350FW 4x4
• 1990-1994 Yamaha Big Bear 350 YFM350FW 4x4
• 1990 Yamaha Moto 4 YFM350ER
• 1992-1994 Yamaha Moto 4 YFM350ER
• 1990-1995 Yamaha Warrior 350 YFM350X
• 1991-1995 Yamaha Warrior 350 YFM350X Maine NH

Note: Image is for reference only, actual product may vary slightly.
