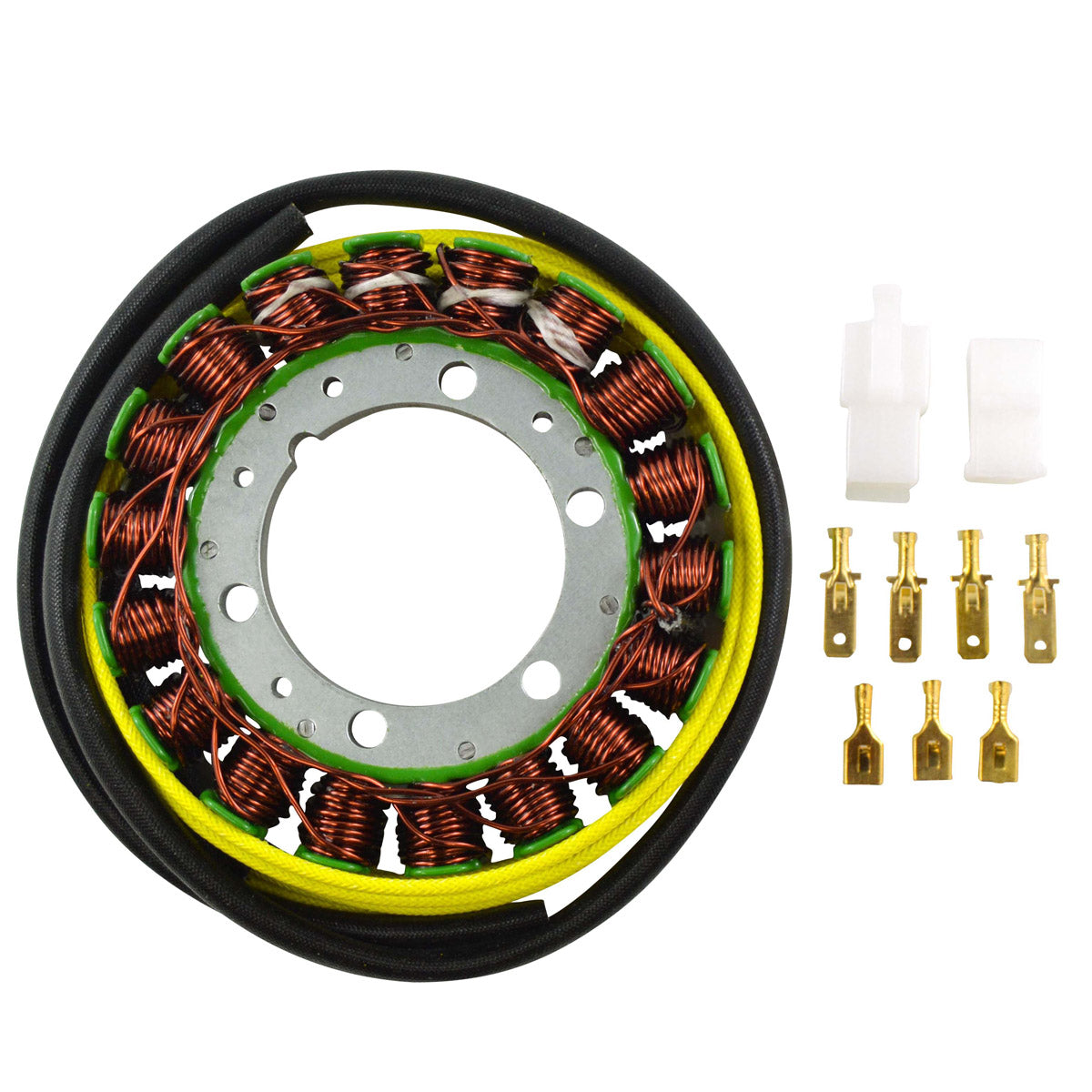

RMStator Stator RM01021

Brand new stator

• You must re-install your original connector and grommet (see picture).
• Once your connector and grommet is re-installed, our part becomes a plug-and-play unit, direct fit, and very easy to install.
• Higher grade of electric components.
• Highest grade of copper winding, resistant to 200 degrees Celsius.
• All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Technical Data

Dimensions:
Interior diameter: 54 mm
Exterior diameter: 115 mm
Thickness: 28 mm
Length of wires stator to terminals: 700 mm

Other specifications:

Number of wires:3
Number of pins:3

Wire to wire resistance:

Alternator: Between each White = 0.4 ohms +/-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM01021

Fitment:

• 1988-1989 Honda NX650
• 1989-1990 Honda Tourist Trophy 500 GB500 49 State
• 1993-2009 Honda XR650L
• 2012-2020 Honda XR650L
• 1998-1999 Kawasaki Ninja ZX6R ZX600F
• 1998-2003 Kawasaki Ninja ZX9R ZX900F
• 1996-1999 Kawasaki Vulcan 1500 VN1500A
• 1987-1995 Kawasaki Vulcan 1500 VN1500A 88
• 1996-1999 Kawasaki Vulcan 1500 VN1500D Classic
• 2005-2009 Suzuki Boulevard S40 LS650
• 2011-2019 Suzuki Boulevard S40 LS650
• 1986-1988 Suzuki Savage 650 LS650
• 1995-2004 Suzuki Savage 650 LS650

Note: Image is for reference only, actual product may vary slightly.
