RMStator Generator Stator RM01024
RMStator Generator Stator RM01024

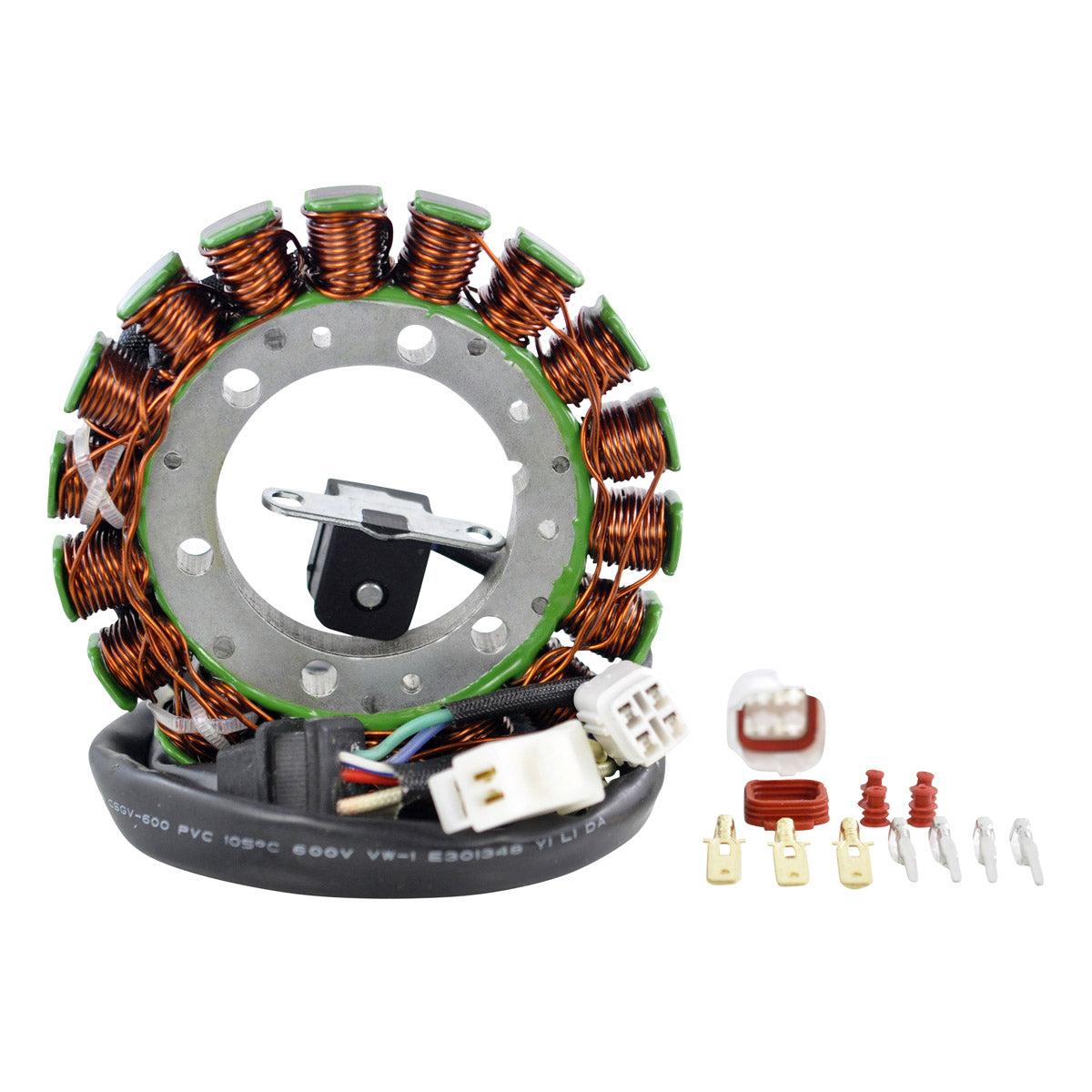

Brand new aftermarket stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- All products shipped are tested
We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Technical Data
Dimensions :
Interior diameter: 53 mm
Exterior diameter: 114 mm
Thickness: 13 mm
Length of wires stator to grommet: 110 mm
Length of wires grommet to plug: 100 mm
Length of pickup coil's wire to grommet: 380 mm
Other specifications :
Number of wires: 7
Number of plugs: 2
Number of pins: 7
Wire to wire resistance:
Alternator: White between each White = 0.4 ohms +/-20%
Pickup: Blue to Green = 200 ohms +/-20%
Position sensor: Red to White/Blue = 0.1 ohms +/-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM01024
Fitment:
- 2003-2009 Arctic Cat 500 4X4 Manual
- 2003-2009 Arctic Cat 500 4x4 Automatic
- 2003-2006 Arctic Cat 500 4x4 TBX Automatic
- 2003-2006 Arctic Cat 500 4x4 TRV
- 2008 Arctic Cat 500 4x4 TRV
- 2002-2007 Suzuki Vinson 500 LTA500F 4x4 Auto
- 2003-2007 Suzuki Vinson 500 LTF500F 4x4 Manual
Note: Image is for reference only, actual product may vary slightly.
