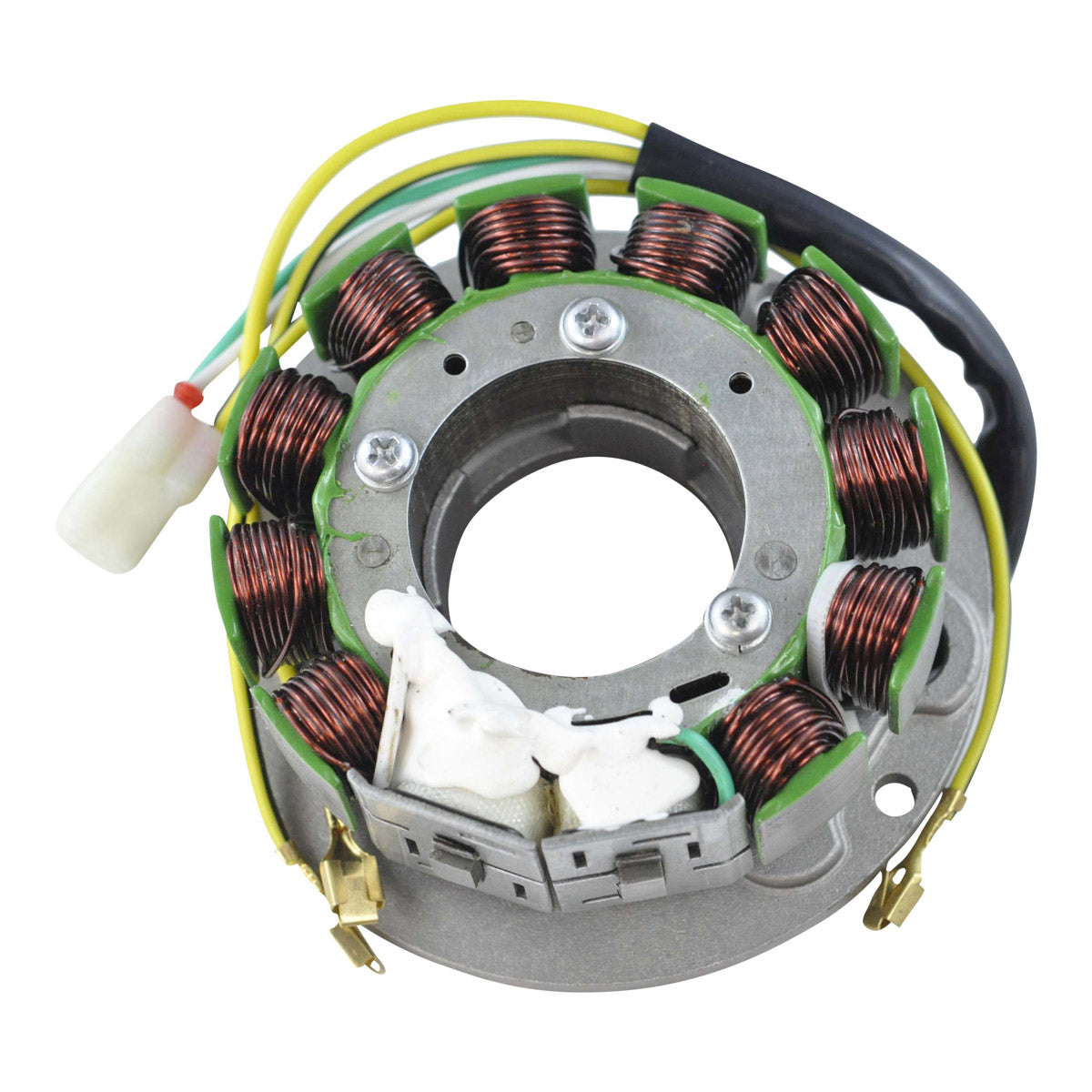

RMStator Stator RM01025S

Brand new aftermarket Stator

• You must re-install your original connector and grommet (see picture).
• Once your connector and grommet is re-installed, our part becomes a plug-and-play unit, direct fit, and very easy to install.
• Higher grade of electric components.
• Highest grade of copper winding, resistant to 200 degrees Celsius.
• Back Plate included
• All products shipped are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Technical Data

Dimensions :

Interior diameter : 43 mm
Exterior diameter : 96 mm
Thickness : 28 mm
Length of wires stator to terminals: 170 mm, 235 mm

Other specifications :

Number of wires : 5
Number of plugs : 1
Number of pins : 6

Wire to wire resistance :

Alternator : Yellow to Yellow/Black = 0.4 ohms +/-20%
Source : Green to White = 290 ohms +/-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM01025S

Fitment:

• 2001 Lynx 5900 FC
• 2001 Lynx 5900 FCE
• 1999-2000 Lynx 6900 FCE
• 2003 Lynx 6900 FCE
• 2001 Lynx Enduro 400
• 1999-2000 Lynx Forest
• 1999 Lynx Forest 440
• 1999 Lynx Light Touring
• 1999 Lynx Ranger King 500
• 2000 Lynx Touring 400F
• 1999 Lynx XR
• 1999-2000 Lynx XR 500F
• 1995-2000 Ski-doo Formula S 380 Carb F/C
• 1995-1999 Ski-doo Formula SL 500 Carb F/C
• 1997-2000 Ski-doo MXZ 440 Fan Carb
• 1995 Ski-doo Skandic Ski Hill Special 500 Carb F/C
• 1995-1998 Ski-doo Skandic 380 Carb F/C
• 1995-1998 Ski-doo Skandic 500 Carb F/C
• 2001-2002 Ski-doo Skandic 500 Carb F/C
• 2003 Ski-doo Skandic 500F SWT Carb F/C
• 2001-2002 Ski-doo Skandic 500F SWT Carb L/C
• 1995-1997 Ski-doo Skandic 500F WT Carb F/C
• 2001-2002 Ski-doo Skandic 500F WT Carb F/C
• 1997-2003 Ski-doo Skandic SWT 503 Carb F/C
• 1997-2003 Ski-doo Skandic WT 503 Carb F/C
• 1995 Ski-doo Touring 380F Fan Carb
• 1996-1998 Ski-doo Touring 440 Carb F/C
• 1995-1997 Ski-doo Touring 500F Fan Carb
• 1995-1998 Ski-doo Touring E 380 Carb F/C

Note: Image is for reference only, actual product may vary slightly.
