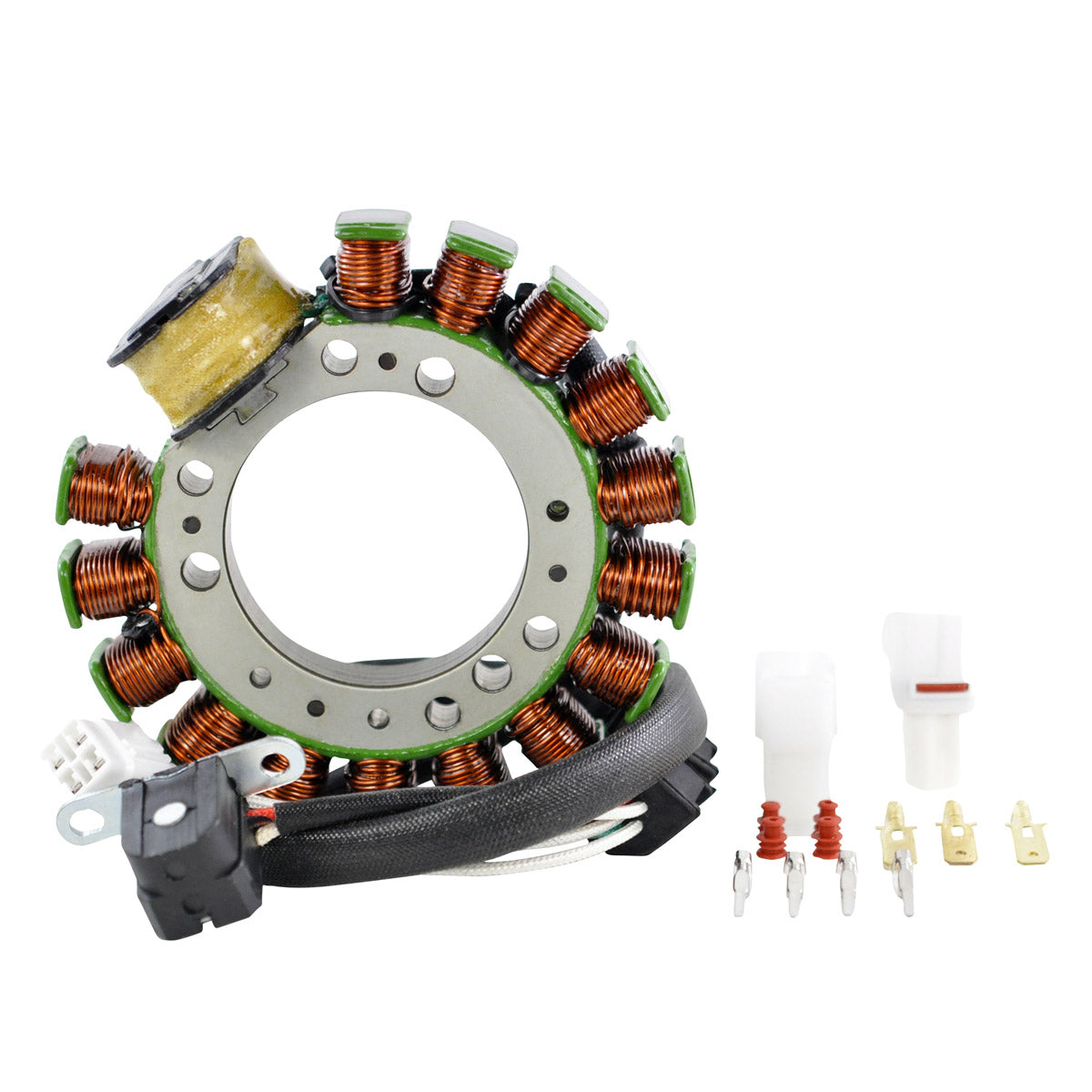

RMStator Stator RM01028
RMStator Stator RM01028
Brand new stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- All product shipped are tested
We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.
*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Technical Data
Dimensions :
Interior diameter : 53 mm
Exterior diameter : 113 mm
Thickness : 19 mm
Length of wires stator to grommet : 180 mm
Length of wires grommet to plug : 390 mm
Length of pickup coil's wire to grommet : 59 mm
Other specifications :
Number of wires : 7
Number of plugs : 2
Number of pins : 7
Number of poles : 14
Wire to wire resistance :
Source 1 : Green to Black = 300 ohms+/-20%
Pick up 1 : Red to White = 500 ohms+/-20%
Alternator : White Between each White = 0.9 ohms+/-20%
Alternator : White to Ground = O.L. ON DISPLAY
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM01028
Fitment:
- 1998 Yamaha Grizzly 600 YFM600F 4x4
Note: Image is for reference only, actual product may vary slightly.
