RMStator High Output Stator 200 W Kit RM01033
Customer Ratings
RMStator High Output Stator 200 W Kit RM01033
RMStator High Output Stator 200 W Kit RM01033
Brand new high output stator assembly 200 watts + Regulator
Stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- Adjustable timing plate to advance and retard up to 10 degrees included
For a limited time we are including a FREE Tympanum AC regulator required to run the extra wattage supplied from our 200W stator.
AC Regulator- 12 Volts regulator used by Baja winners
- For use with all standard halogen and quartz lights
- Precise voltage control, eliminates light burnout
- Reduce flickering and dimming
- Simple installation
- Works with all other OEM parts
- Rated at 225 watts
All products shipped are tested
*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Technical Data
Dimensions :
Interior diameter : 41 mm
Exterior diameter : 103 mm
Thickness : 14 mm
Length of wires stator to grommet : 90 mm
Length of wires grommet to plug : 380 mm
Length of pickup coil's wire to grommet : 100 mm
Other specifications :
Number of wires : 6
Number of plugs : 3
Number of pins : 6
Wire to wire resistance :
Alternator : Black to Yellow = 0.2 ohms +/-20%
Pickup : White/Red to White/Green = 100 ohms +/-20%
Source : Red to Green = 15 ohms +/-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM01033
Fitment:
- 1987-1994 Yamaha Banshee 350 YFZ350

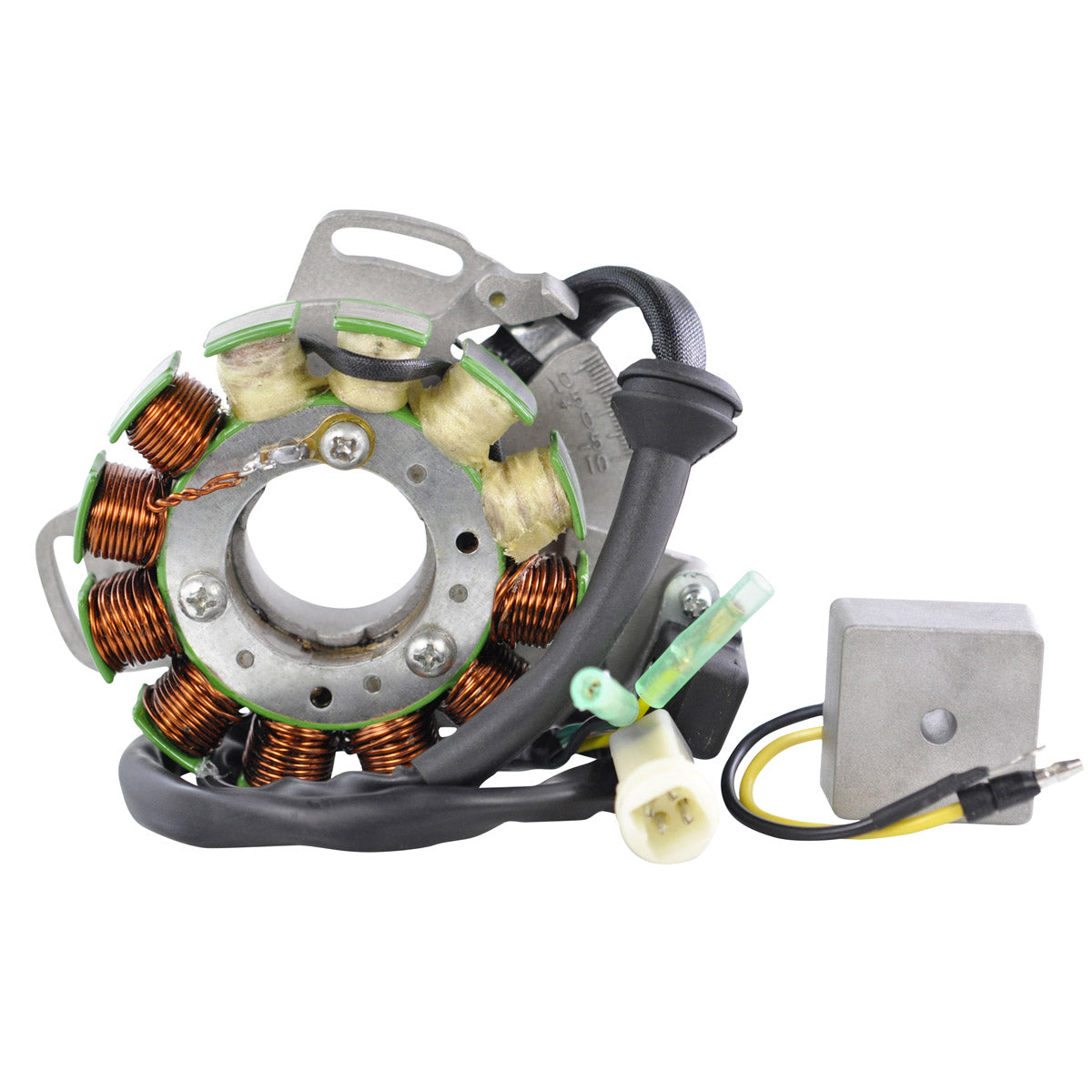

Note: Image is for reference only, actual product may vary slightly.
