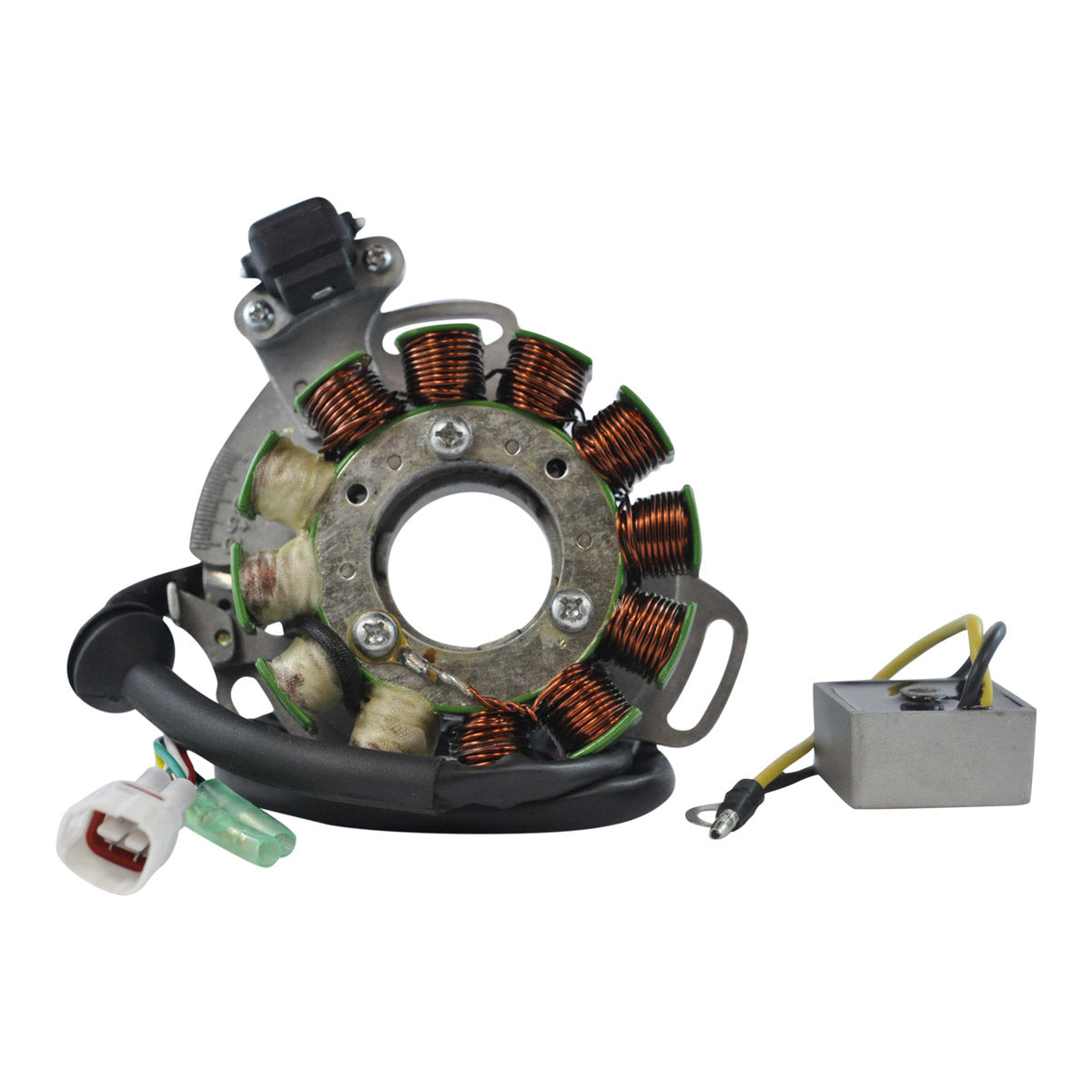

RMStator High Output Stator 200 W Kit RM01034
Customer Ratings
RMStator High Output Stator 200 W Kit RM01034
RMStator High Output Stator 200 W Kit RM01034
Brand New High Output Aftermarket Stator 200W
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- Back Plate included
- All products shipped are tested
20% MORE OUTPUT OVER STOCK, WORKS WITH ALL OTHER OEM COMPONENTS.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
For a limited time we are including a FREE Tympanum AC regulator required to run the extra wattage supplied from our 200W stator.
- AC Regulator
- 12 Volts regulator used by Baja winners
- For use with all standard halogen and quartz lights
- Precise voltage control, eliminates light burnout
- Reduce flickering and dimming
- Simple installation
- Works with all other OEM parts
- Rated at 225 watts.
Technical Data
Dimensions :
Interior diameter : 103mm
Exterior diameter : 34mm
Thickness : 27mm
Length of wires stator to grommet : 60mm
Length of wires grommet to plug : 520mm
Length of pickup coil's wire to grommet : 80mm
Other specifications :
Number of wires : 6
Number of plugs : 3
Number of pins : 6
Wire to wire resistance :
Alternator : Yellow to Black = 0.4ohms +/-20%
Pickup : White/Green to White/Red = 115ohms +/-20%
Source : Green to Red = 12ohms +/-20%
Dimensions AC Regulator:
Height: 20 mm
Length: 45 mm
Width: 45 mm
Other specifications:
Number of terminals: 2
Wires length: 130 mm
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM01034
Fitment:
- 1995-2006 Yamaha Banshee 350 YFZ350
Note: Image is for reference only, actual product may vary slightly.
