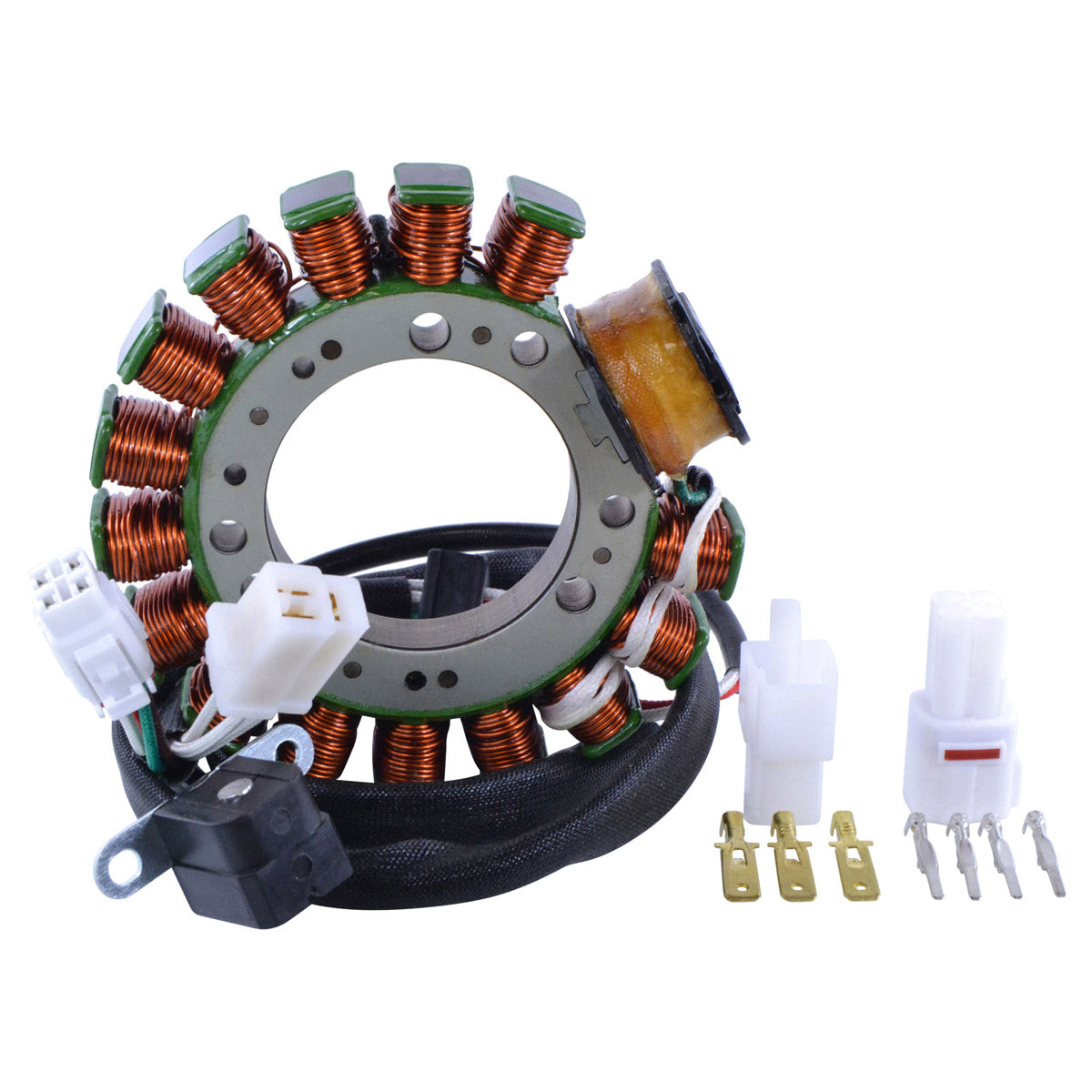

RMStator Stator RM01036
RMStator Stator RM01036
Brand new aftermarket Stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- Highest grade of lamination materials
- Highest grade of copper windings, resistant to 200 degrees Celsius.
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- All products shipped are tested
We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Technical Data
Dimensions :
Interior diameter : 54 mm
Exterior diameter : 115 mm
Thickness : 14 mm
Length of wires stator to grommet : 135 mm
Length of wires grommet to plug : 520 mm
Length of pickup coil's wire to grommet : 300 mm
Other specifications :
Number of wires : 7
Number of plugs : 2
Number of pins : 7
Wire to wire resistance :
Alternator : White between each White = 0.9 ohms +/-20%
Pickup : White to Red = 200 ohms +/-20%
Source : Green to Brown = 308 ohms +/-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM01036
Fitment:
- 1998-1999 Yamaha Big Bear 350 YFM350FW 4x4
- 1997 Yamaha Big Bear 350 YFM350FW 4x4 SE
- 1999 Yamaha Big Bear 350 YFM350U 2x4
- 2000-2001 Yamaha Wolverine 350 YFM350X
Note: Image is for reference only, actual product may vary slightly.
