RMStator Stator RM01040
Customer Ratings
RMStator Stator RM01040
RMStator Stator RM01040

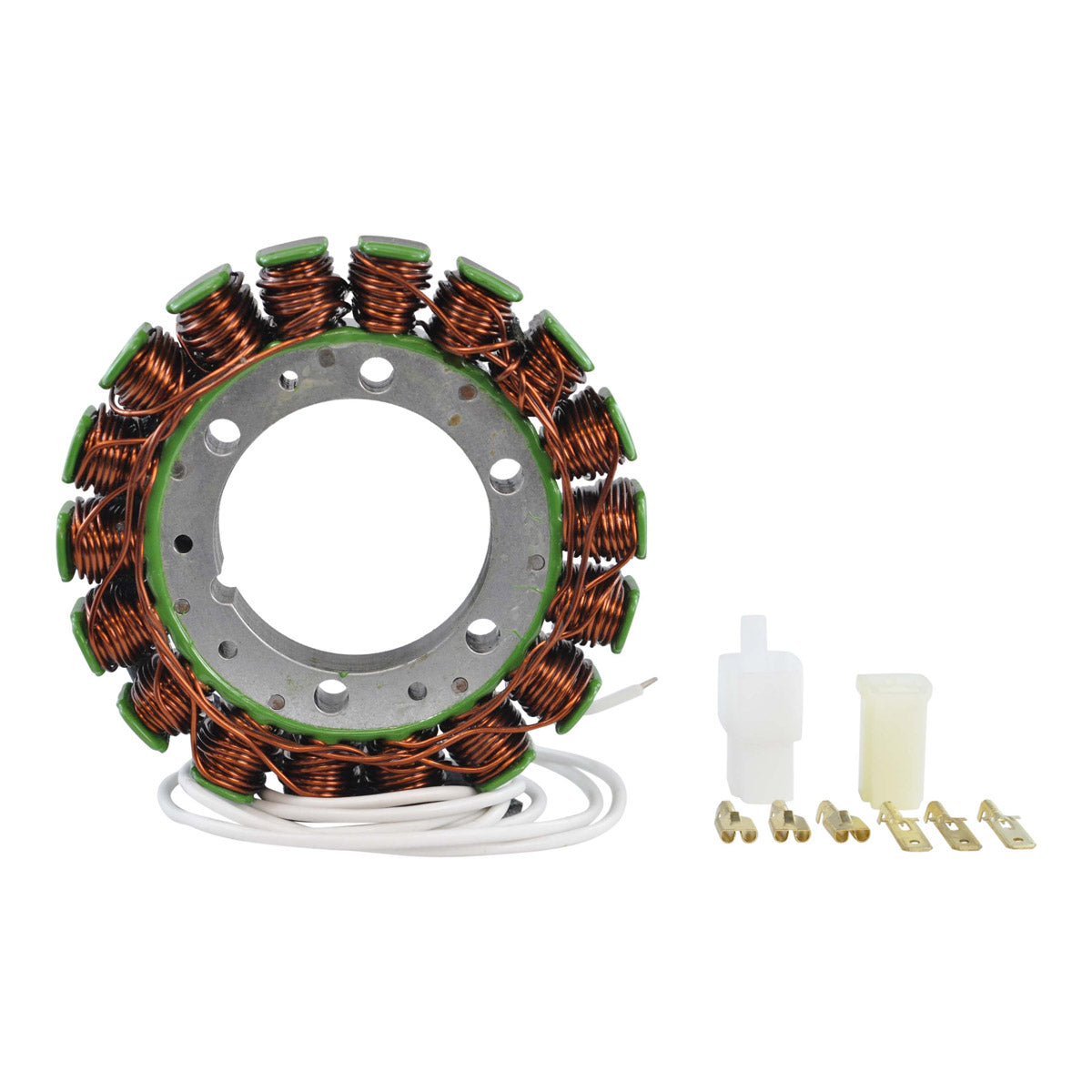

Brand new aftermarket stator
- You must re-install your original connector and grommet (see picture).
- Once your connector and grommet is re-installed, our part becomes a plug-and-play unit, direct fit, and very easy to install.
- Higher grade of electric components.
- Highest grade copper windings, resistant to 200 degrees Celsius.
- All products shipped are tested
We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Technical Data
Dimensions:
Interior diameter: 53 mm
Exterior diameter: 114 mm
Thickness: 16 mm
Length of wires stator to grommet: 1220 mm
Other specifications :
Number of wires: 3
Number of pins: 3
Wire to wire resistance :
Alternator: White Between each White = 0.2 ohms +/-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM01040
Fitment:
- 1997-2001 BMW F650 Funduro
- 2006-2011 BMW F650CS
- 1997-1998 BMW F650ST
- 2007-2011 BMW G650X Country
- 1983-1985 Honda Ascot 500 VT500FT
- 2000-2001 Honda CBR929RR
- 1983-1986 Honda Shadow 500 VT500C
- 1986-1987 Suzuki Intruder 700 VS700GLP GL
- 1988-1991 Suzuki Intruder 750 VS750GLP
- 1992-1997 Suzuki Intruder 800 VS800GL
- 1990-1993 Suzuki VX800
- 1992-1993 Yamaha TDM850
- 1982-1983 Yamaha Vision 550 XZ550R
Note: Image is for reference only, actual product may vary slightly.
