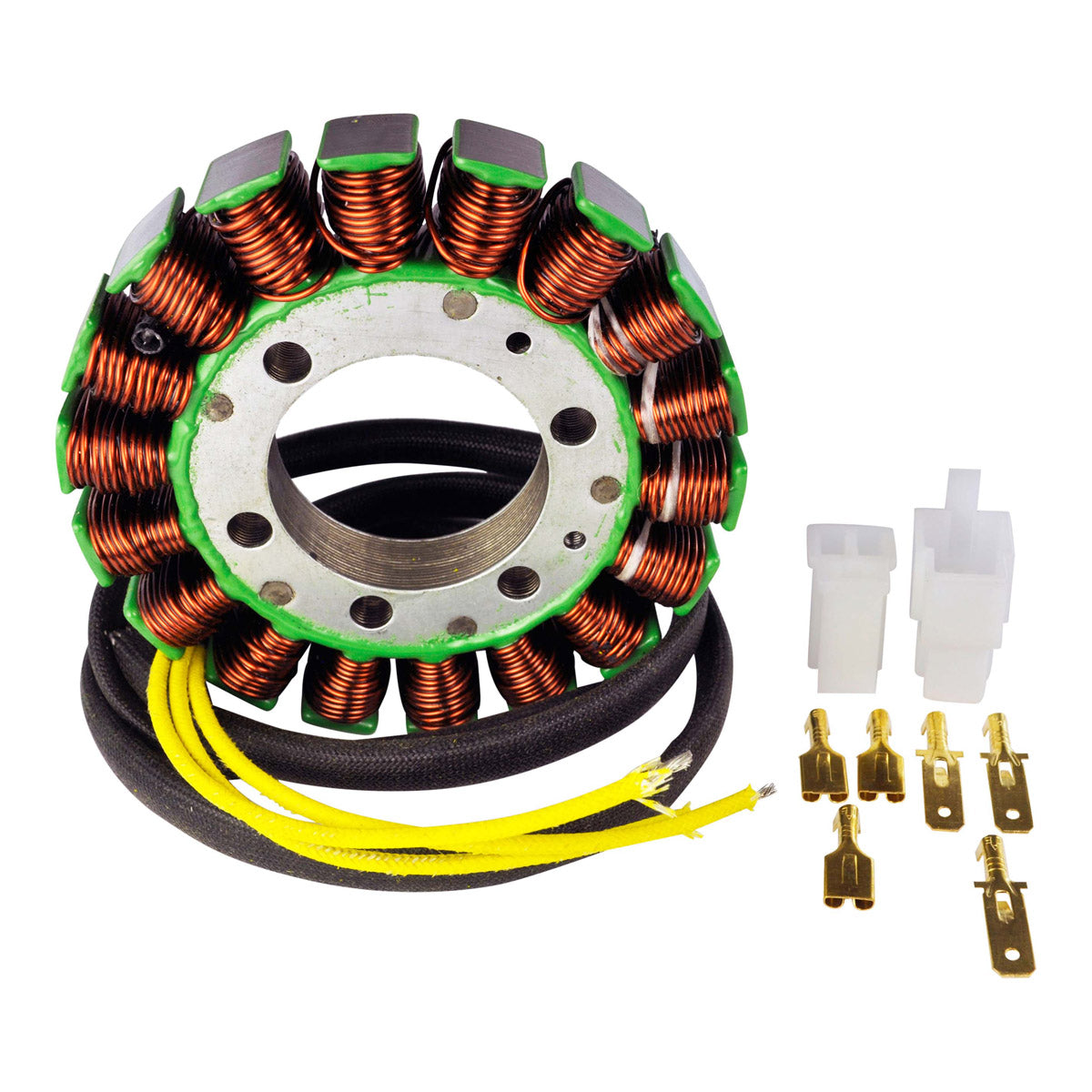

RMStator Generator Stator RM01042

Brand new stator

• You must re-install your original grommet and the new connector (see picture).
• Once your connector and grommet is re-installed, our part becomes a Plug-and-play unit, direct fit, and very easy to install.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• All product shipped are tested

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Technical Data

Dimensions:
Interior diameter: 42mm
Exterior diameter: 103mm
Thickness: 16mm
Length of wires stator to connectors: 900mm

Other specifications:

Number of wires : 3
Number of terminals : 3

Wire to wire resistance:

Alternator : Yellow between each Yellow = 0.4 ohms+/-20%
Alternator : Yellow to Ground ?= O.L. ON DISPLAY

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM01042

Fitment:

• 1988-1990 Honda Interceptor VTR VTR250
• 2004-2005 Polaris ATP 330 4X4
• 2003-2005 Polaris Magnum 330 2x4
• 2003-2006 Polaris Magnum 330 4X4
• 2008-2009 Polaris Trail Blazer 330
• 2003-2009 Polaris Trail Boss 330
• 2005-2009 Suzuki Boulevard S50 VS800
• 1992-2004 Suzuki Intruder 800 VS800GL
• 1997-2004 Suzuki Marauder 800 VZ800
• 1988-1990 Yamaha Virago 250 XV250
• 1990-1995 Yamaha XT600

Note: Image is for reference only, actual product may vary slightly.
