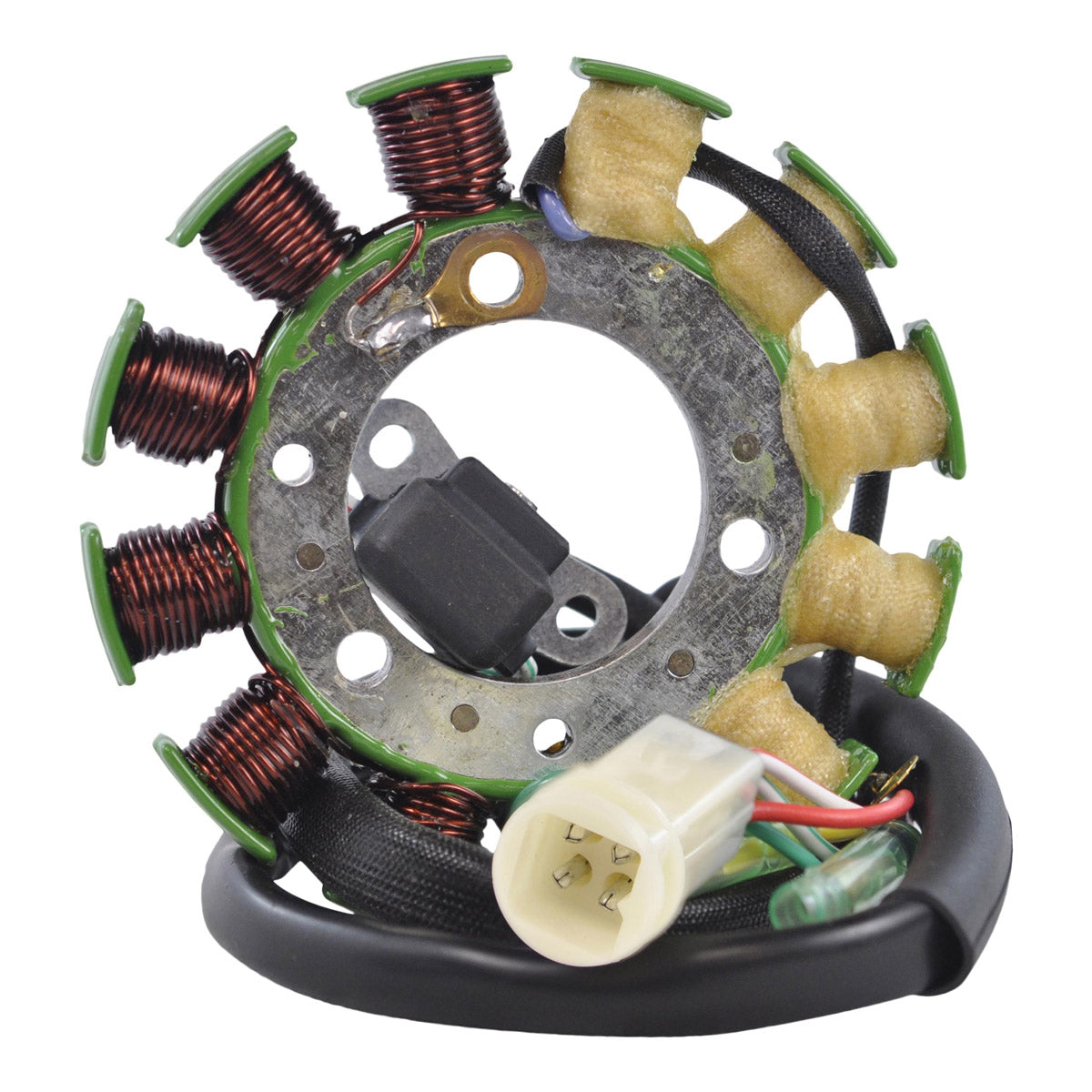

RMStator High Output Performance Stator RM01044
Customer Ratings
RMStator High Output Performance Stator RM01044
RMStator High Output Performance Stator RM01044
Brand new high output stator 100 watts
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Pick up pulsar coil included
- Rubber grommet included
- Connector included
- All product shipped are tested
20% MORE OUTPUT OVER STOCK, WORKS WITH ALL OTHER OEM COMPONENTS.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Technical Data
Dimensions :
Interior diameter : 41 mm
Exterior diameter : 103 mm
Thickness : 5 mm
Length of wires stator to grommet : 200 mm
Length of wires grommet to plug : 300 mm
Length of pickup coil's wire to grommet : 100 mm
Other specifications :
Number of wires : 6
Number of plugs : 3
Number of pins : 6
Wire to wire resistance :
Alternator : Black to Yellow = 0.4 ohms +/-20%
Pickup : White/Red to White/Green = 125 ohms +/-20%
Source : Green to Red = 21 ohms +/-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM01044
Fitment:
- 1987-1994 Yamaha Banshee 350 YFZ350
Note: Image is for reference only, actual product may vary slightly.
