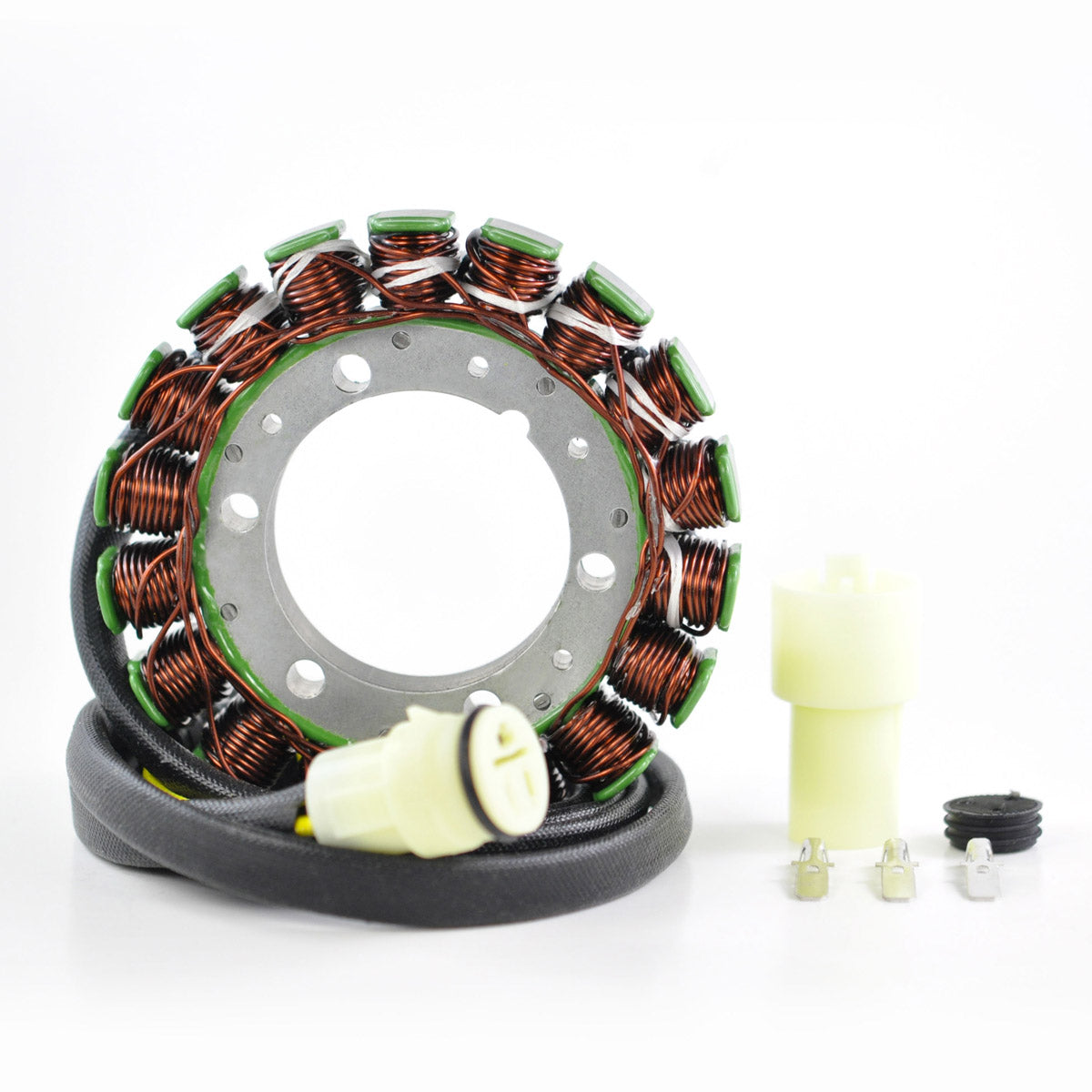

RMStator High Output Stator RM01045
Customer Ratings
RMStator High Output Stator RM01045
RMStator High Output Stator RM01045
Brand new high output aftermarket stator
- Direct replacement to your original unit
- Connector included
- Opposite connector included
- Rubber grommet included
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- All product shipped are tested
20% More output over stock, works with all other OEM components.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Technical Data
Dimensions :
Interior diameter : 53 mm
Exterior diameter : 114 mm
Thickness : 14 mm
Length of wires stator to grommet : 200 mm
Length of wires grommet to plug : 750 mm
Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3
Wire to wire resistance :
Alternator : Yellow/Red between each Yellow/Red = 0.2 ohms +/-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM01045
Fitment:
- 2005-2013 Kawasaki Brute Force 650 KVF650D 4x4
- 2006-2013 Kawasaki Brute Force 650 KVF650F 4x4i
- 2006-2010 Kawasaki Brute Force 650 KVF650F 4x4i HD
- 2005-2007 Kawasaki Brute Force 750 KVF750 4x4i
- 2004-2009 Kawasaki KFX700
- 2002-2003 Kawasaki Prairie 650 KVF650A 4x4
- 2004-2006 Kawasaki Prairie 700 KVF700A 4x4
- 2004-2005 Suzuki Twin Peaks 700 LTV700F 4x4
Note: Image is for reference only, actual product may vary slightly.
