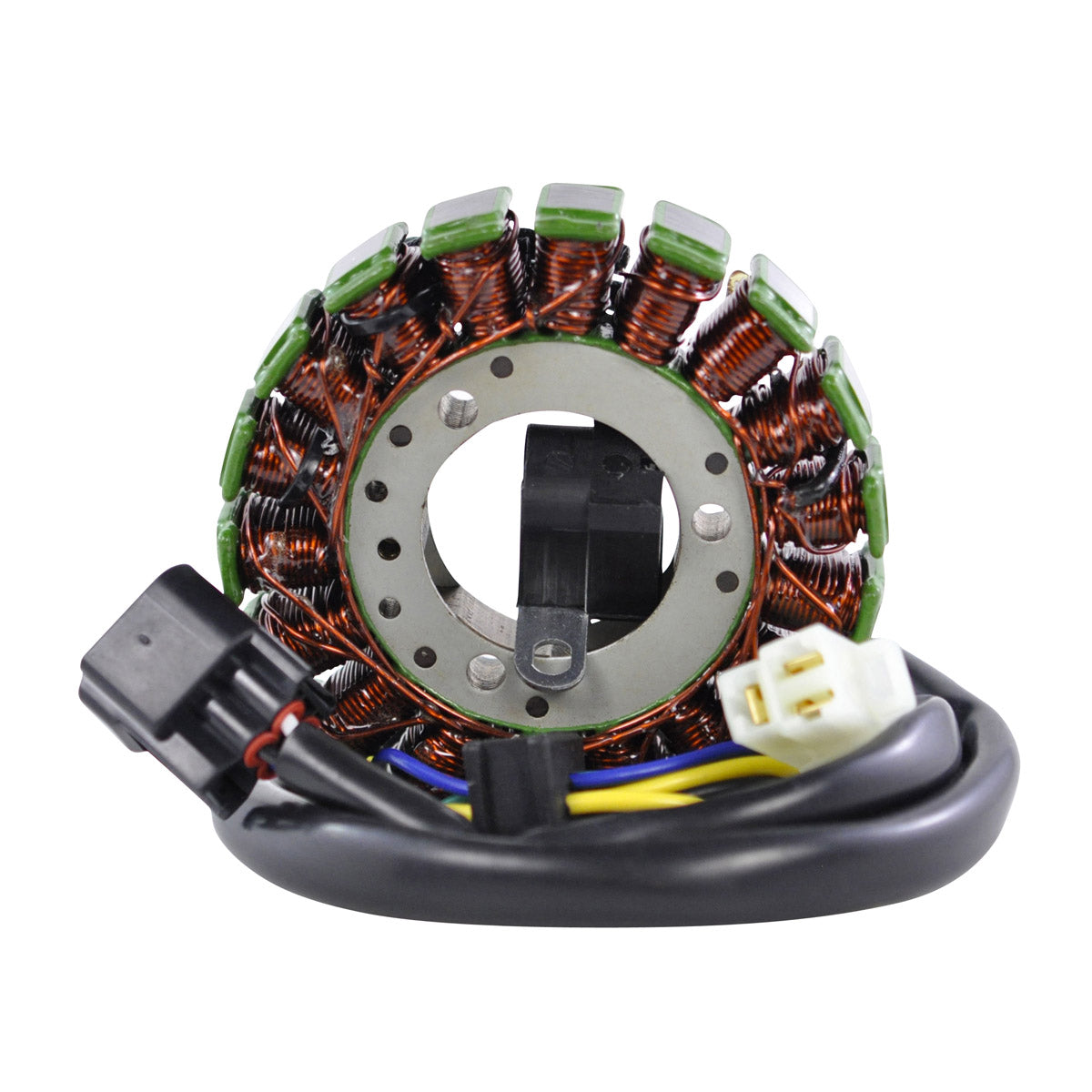

RMStator High Output Stator RM01049

Brand new high output stator

• Direct replacement to your original unit
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• All products shipped are tested

20% MORE OUTPUT OVER STOCK, WORKS WITH ALL OTHER OEM COMPONENTS.

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Technical Data

Dimensions:
Interior diameter: 34 mm
Exterior diameter: 93 mm
Thickness: 14 mm
Length of wires stator to grommet: 100 mm
Length of wires grommet to plug: 400 mm & 600 mm
Length of pickup coil's wire to grommet: 110 mm

Other specifications:

Number of wires: 7
Number of plugs: 2
Number of pins: 7

Wire to wire resistance:

Alternator: Yellow Between each Yellow = 0.7 ohms +/-20%
Alternator: Yellow to Ground O.L on display
Pickup: Blue to Green = 200 ohms +/-20%
Position Sensor: Black to White = 0.3 ohms +/-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM01049

Fitment:

• 2003-2004 Kawasaki KLX400
• 2001-2007 Suzuki DRZ250
• 2000-2004 Suzuki DRZ400
• 2000-2007 Suzuki DRZ400E
• 2000-2009 Suzuki DRZ400S
• 2011-2017 Suzuki DRZ400S
• 2019-2021 Suzuki DRZ400S
• 2005-2009 Suzuki DRZ400SM
• 2013-2017 Suzuki DRZ400SM
• 2019-2021 Suzuki DRZ400SM

Note: Image is for reference only, actual product may vary slightly.
