RMStator Stator RM01053
Customer Ratings
RMStator Stator RM01053
RMStator Stator RM01053

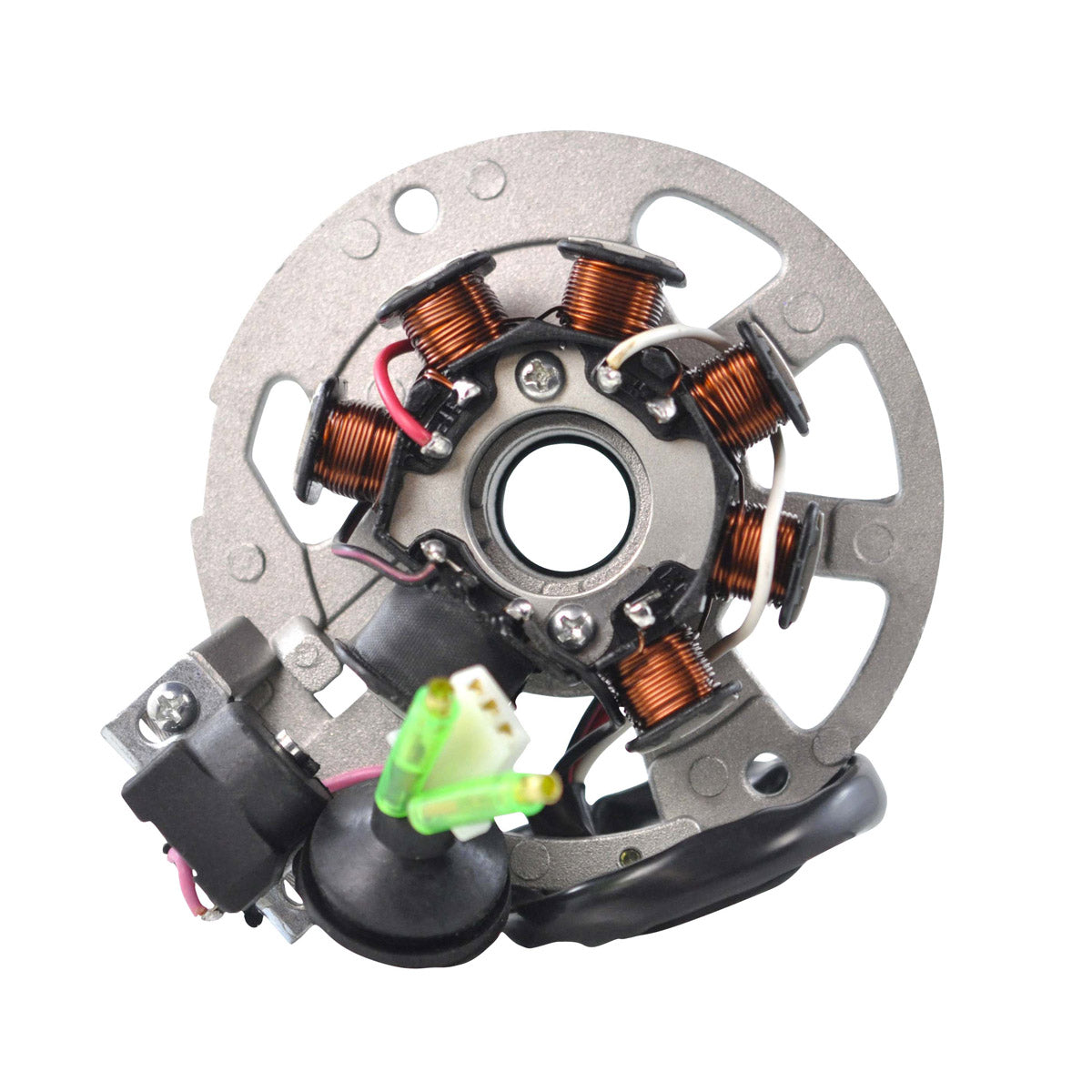

Brand new 7-coil stator with 5 wires for two stroke engines
- 3-pin plug , 2 loose wires
- 2 bolt holes, 103mm bolt hole spacing.
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- Back Plate included
- All product shipped are tested
*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010&rdquo.
Technical Data
Dimensions :
Interior diameter : 79 mm
Exterior diameter : 27 mm
Thickness : 13 mm
Length of wires stator to grommet : 79 mm
Length of wires grommet to plug : 200 mm
Length of pickup coil's wire to grommet : 100 mm
Other specifications :
Number of wires : 5
Number of plugs : 3
Number of pins : 5
Wire to wire resistance :
Alternator : Red to White = 0.4 ohms +/-20%
Pickup : Pink to Black = 500 ohms +/-20%
Source : Black/Red to Black = 300 ohms +/-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM01053
Fitment:
- 1998-2002 Aprilia Area 51
- 1995-2000 Aprilia Gulliver 50
- 1995-2003 Aprilia Rally 50
- 1993-2005 Aprilia Scarabeo 50 2T
- 1998-2002 Aprilia Sonic 50
- 1994-2001 Aprilia SR50 Ditech
- 2000-2001 E-TON Lightning 50 AXL50
- 2000-2005 E-TON Sierra 90 DXL90
- 2000-2001 E-TON TXL90
- 2002-2004 E-TON Viper 50 RXL50
- 2004-2007 E-TON Viper 70 RXL70
- 2002-2003 E-TON Viper 90 RXL90
- 2005-2007 E-TON Viper 90 RXL90
- 2004-2006 Polaris Predator 50
- 2003-2006 Polaris Predator 90
- 2001-2003 Polaris Scrambler 50
- 2001-2003 Polaris Scrambler 90
- 2002 Polaris Scrambler 90 X
- 2001-2006 Polaris Sportsman 90
Note: Image is for reference only, actual product may vary slightly.
