RMStator Stator RM01054
Customer Ratings

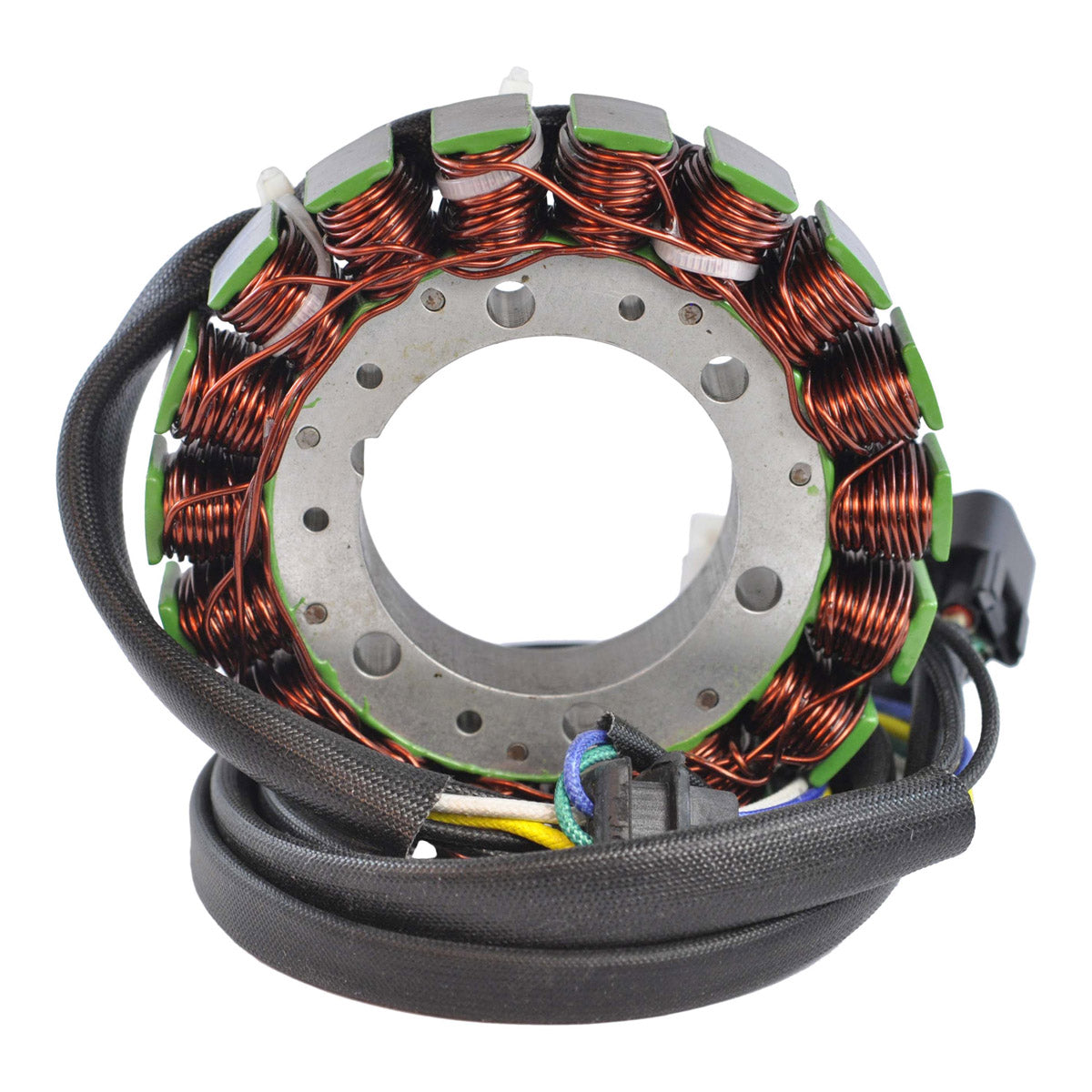

RMStator Stator RM01054
RMStator Stator RM01054
Brand new stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- All products shipped are tested
**The diameter of this stator is small to reduce heat.
*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Technical Data
Dimensions:
Interior diameter: 53mm
Exterior diameter: 114mm
Thickness: 18mm
Length of wires stator to grommet: 130mm
Length of wires grommet to plug: 600mm and 900mm
Length of pickup coil's wire to grommet: 95mm
Other specifications:
Number of wires: 7
Number of plugs: 2
Number of pins: 7
Wire to wire resistance:
Alternator: Black between each Black = 0.4ohms +/-20%
Pickup: Blue to Green = 200ohms =+/-20%
Position sensor: White to Yellow = 0.4ohms =+/-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM01054
Fitment:
- 2001-2002 Arctic Cat 400 2x4
- 1998-2000 Arctic Cat 400 2x4 Automatic
- 2000-2002 Arctic Cat 500 4X4 Manual
- 1998-2002 Arctic Cat 500 4x4 Automatic
- 2002 Arctic Cat 500 4x4 TBX Automatic
- 1996-1998 Arctic Cat Bearcat 454 2x4
- 2000-2001 Suzuki Quadmaster 500 LTA500F 4x4
- 1998-2002 Suzuki Quadrunner 500 LTF500F 4x4
Note: Image is for reference only, actual product may vary slightly.
