RMStator Stator RM01055
Customer Ratings
RMStator Stator RM01055
RMStator Stator RM01055

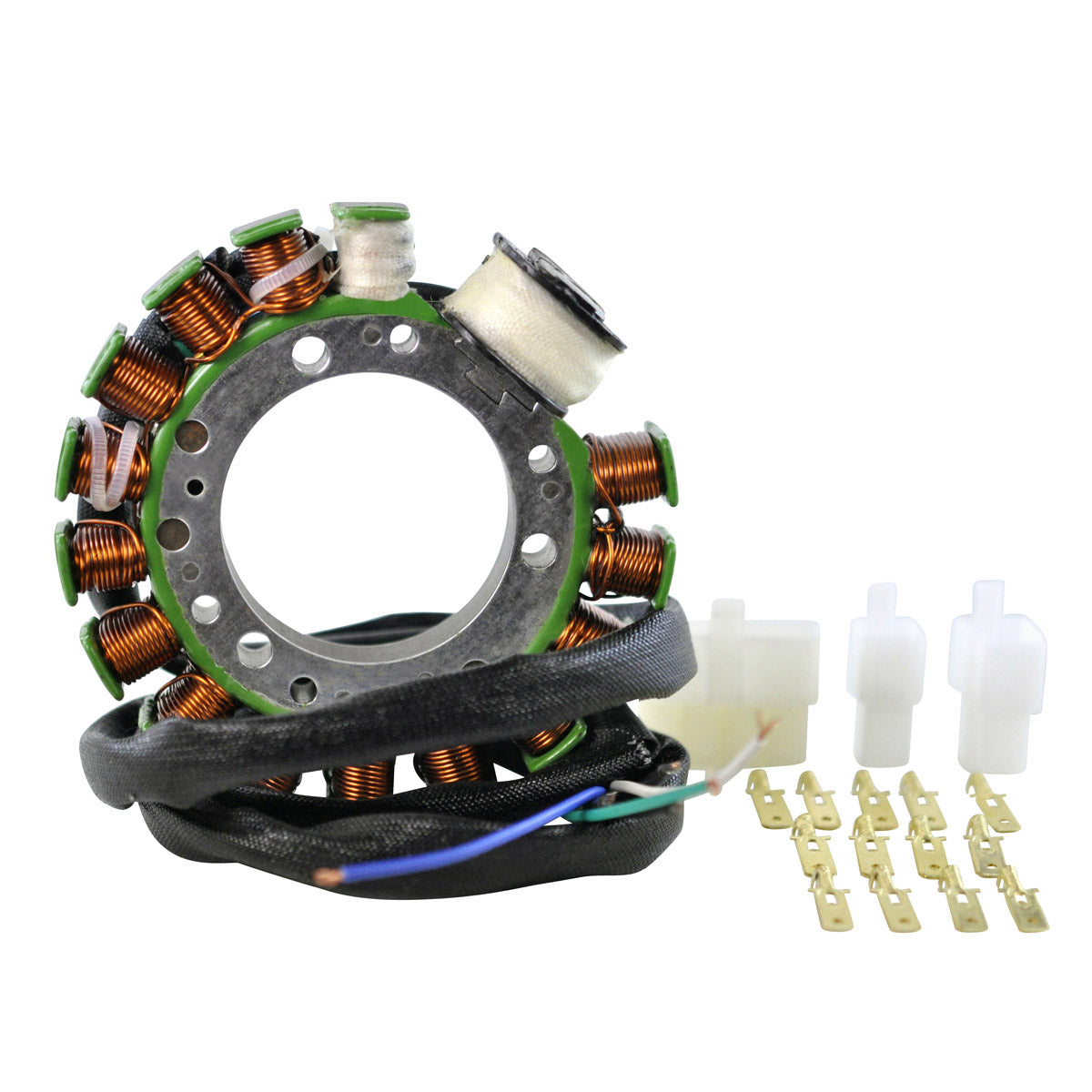

Brand new stator
- You must re-install your original grommet and the new connector (see picture).
- Once your connector and grommet is re-installed, our part becomes a Plug-and-play unit, direct fit, and very easy to install.
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius.
- All product shipped are tested
We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.
*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Technical Data
Dimensions:
Interior diameter : 53 mm
Exterior diameter : 115 mm
Thickness : 16 mm
Length of wires stator to terminals: 875 mm
Other specifications:
Number of wires : 6
Number of terminals : 6
Wire to wire resistance:
Alternator : Between each Black = 0.9 ohms+/-20%
Alternator : Black to Ground =?O.L. ON DISPLAY
Source 1 : White to Blue = 9 ohms+/-20%
Source 2 : Blue to Green = 300 ohms+/-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM01055
Fitment:
- 1978-1981 Honda CX500
- 1979-1981 Honda CX500C Custom
- 1979-1981 Honda CX500D Deluxe
Note: Image is for reference only, actual product may vary slightly.
