RMStator Generator Stator RM01058
RMStator Generator Stator RM01058

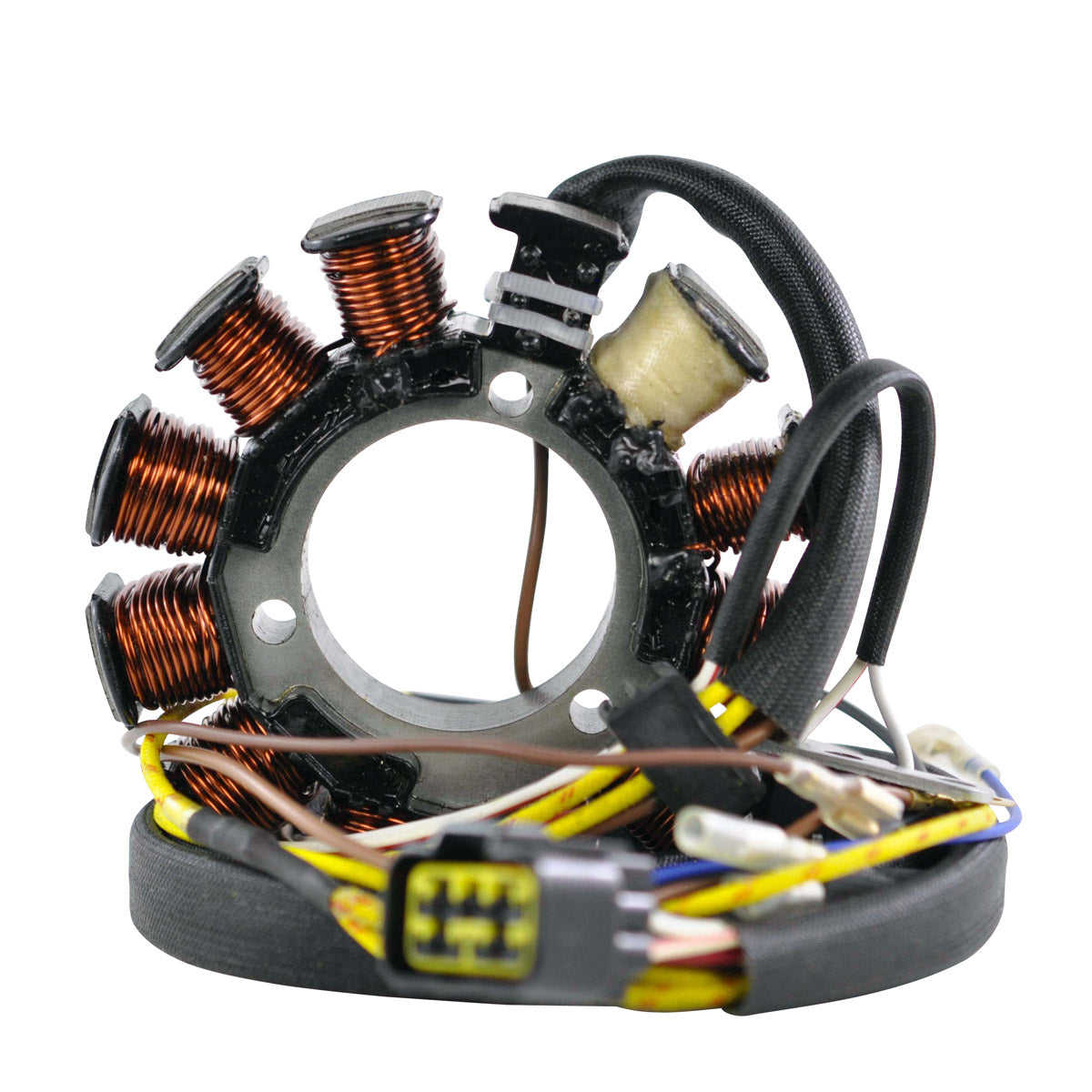

Brand new generator stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- All product shipped are tested
*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Technical Data
Dimensions :
Interior diameter : 47mm
Exterior diameter : 114mm
Thickness : 20mm
Length of wires stator to grommet : 155mm
Length of wires grommet to plug : 900mm
Length of pickup coil's wire to grommet : 60mm
Other specifications :
Number of wires : 7
Number of plugs : 9
Number of pins : 12
Wire to wire resistance :
Alternator : Yellow/Red to Yellow = 0.4ohms +/-20%
Pickup : White/Red to White = 115ohms +/-20%
Source : Black to Red = 18ohms +/-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM01058
Fitment:
- 2004 Polaris ATP 500 4x4 HO
- 2002 Polaris Big Boss 500 6x6
- 2002 Polaris Magnum 500 2x4
- 2002 Polaris Magnum 500 2x4 HDS
- 2002-2003 Polaris Magnum 500 4X4 HDS
- 2004 Polaris Ranger 500 Series 11
- 2003 Polaris Ranger 500 4X4 Series 10
- 1999 Polaris Ranger 500 6x6
- 2002 Polaris Scrambler 500 2x4
- 2002-2003 Polaris Scrambler 500 4X4
- 2003 Polaris Sportsman 400
- 2004 Polaris Sportsman 400 4X4 F/C Carb
- 2002-2003 Polaris Sportsman 500 4X4
- 2002-2003 Polaris Sportsman 500 4x4 HO
- 2002 Polaris Sportsman 500 6x6
- 2002 Polaris Worker 500
Note: Image is for reference only, actual product may vary slightly.
