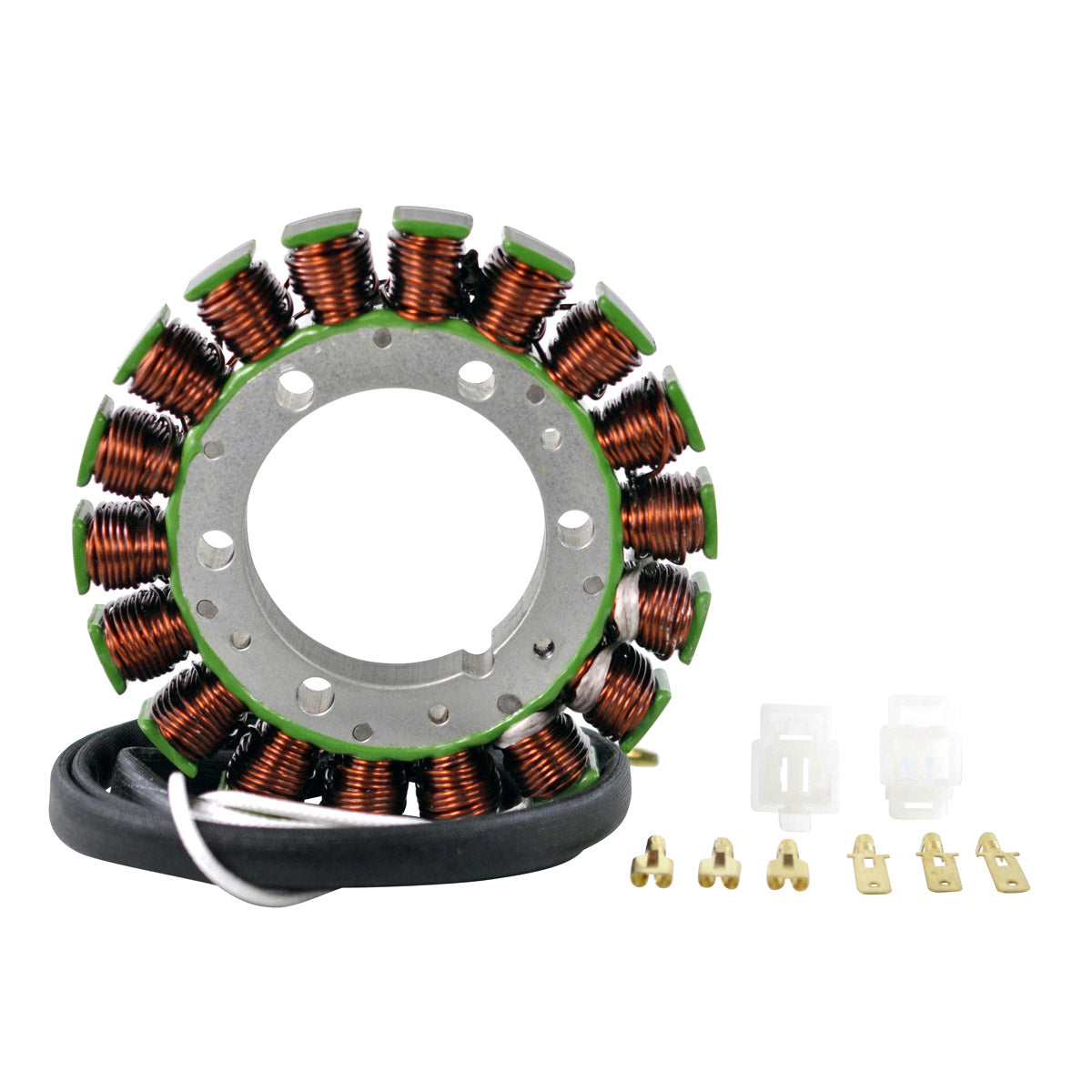

RMStator Generator Stator RM01059

Brand new stator

• You must re-install your original grommet and the new connector (see picture).
• Once your connector and grommet is re-installed, our part becomes a Plug-and-play unit, direct fit, and very easy to install.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Connector included
• All product shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Technical Data

Dimensions :

Interior diameter : 53 mm
Exterior diameter : 114 mm
Thickness : 17 mm
Length of wires stator : 700 mm

Other specifications :

Number of wires : 4
Number of pins : 4

Wire to wire resistance :

Alternator : White between each White = 0.4 ohms +/-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM01059

Fitment:

• 1986-1999 Yamaha Virago 1100 XV1100
• 1986-1987 Yamaha Virago 700 XV700
• 1988-1997 Yamaha Virago 750 XV750

Note: Image is for reference only, actual product may vary slightly.
