RMStator Generator Stator RM01063
Customer Ratings

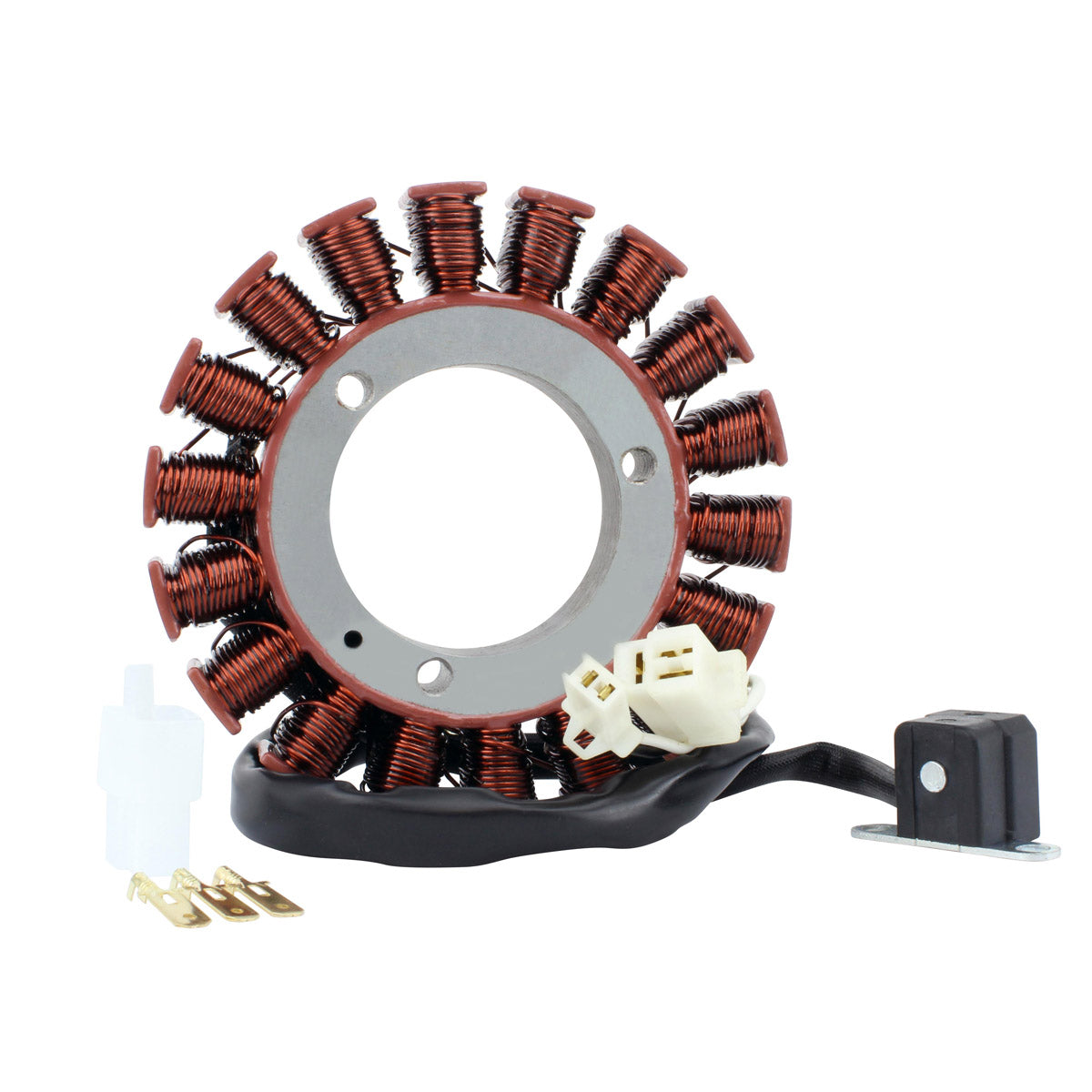

RMStator Generator Stator RM01063
RMStator Generator Stator RM01063
Brand new aftermarket stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- All products shipped are tested
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.
Technical Data
Dimensions :
Interior diameter : 58 mm
Exterior diameter : 130 mm
Thickness : 18 mm
Length of wires stator to grommet : 103 mm
Length of wires grommet to plug 1 : 300 mm
Length of wires grommet to plug 2 : 320 mm
Length of pickup coil's wire to grommet : 114 mm
Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5
Wire to wire resistance :
Alternator : White Between Each White = 0.4 ohms +/-20%
Alternator : White To Ground = O.L. on Display
Pickup : White To Black = 190 ohms +/-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM01063
Fitment:
- 1999-2003 Yamaha V Star 1100 XVS1100 Custom
- 2000-2003 Yamaha V Star 1100 XVS1100A Classic
Note: Image is for reference only, actual product may vary slightly.
