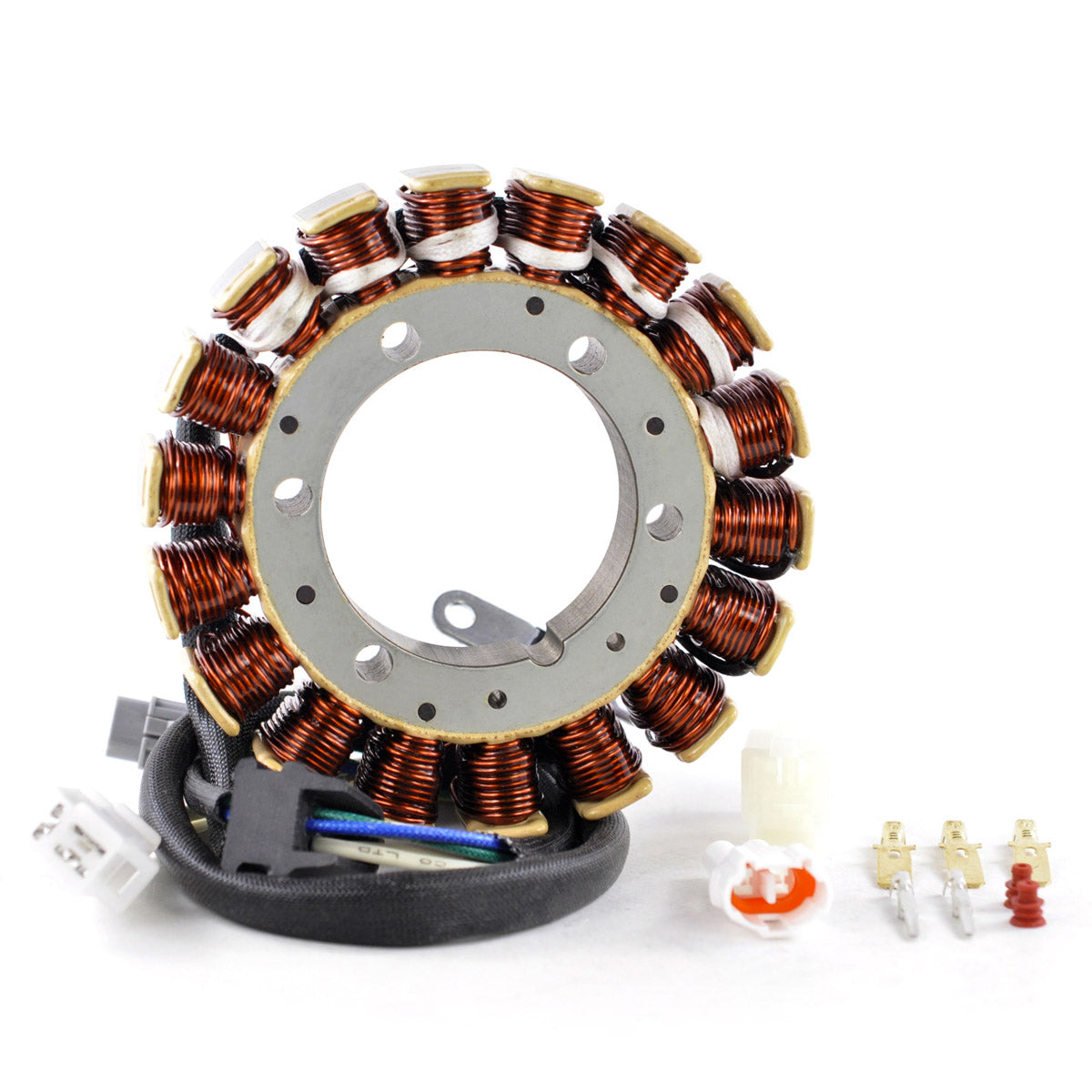

RMStator Stator RM01072

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Technical Data

Dimensions :

Interior diameter : 53 mm
Exterior diameter : 114 mm
Thickness : 17 mm
Length of wires stator to grommet : 100 mm
Length of wires grommet to plug : 300 mm
Length of pickup coil's wire to grommet : 70 mm

Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5

Wire to wire resistance :

Alternator : White Between Each White = 0.4 ohms +/-20%
Pickup : Blue To Green = 200 ohms +/-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM01072

Fitment:

• 2009-2012 Arctic Cat 1000 4x4 TRV
• 2011-2012 Arctic Cat 1000 4x4 TRV Limited
• 2013-2014 Arctic Cat 1000 4x4 XT
• 2010-2013 Arctic Cat 550 4x4 EFI F/C
• 2010 Arctic Cat 550 4x4 H1 Automatic EFI F/C
• 2010-2013 Arctic Cat 550 4x4 TRV Automatic
• 2012 Arctic Cat 700 4X4
• 2008-2011 Arctic Cat 700 4x4 H1 EFI
• 2009-2012 Arctic Cat 700 4x4 TRV
• 2010-2012 Arctic Cat MudPro 1000 Limited
• 2009-2012 Arctic Cat MudPro 700 Limited
• 2009-2014 Arctic Cat Prowler 550 4x4 Flatbed
• 2009-2014 Arctic Cat Prowler XT 1000 4x4 EPS
• 2008-2012 Arctic Cat Prowler XTX 700 4X4
• 2010-2012 Arctic Cat TBX 700
• 2008-2010 Arctic Cat Thundercat 1000

Note: Image is for reference only, actual product may vary slightly.
