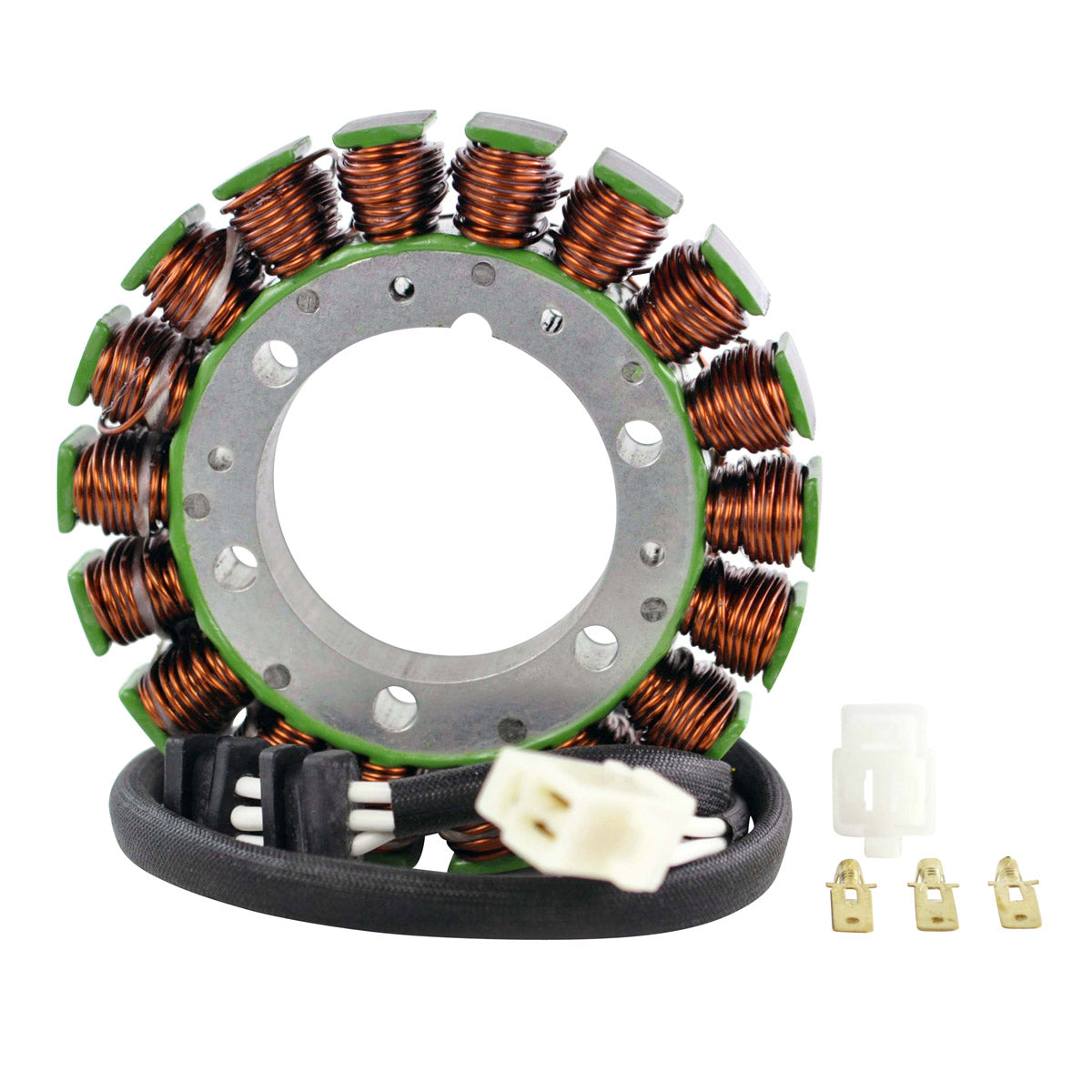

RMStator Generator Stator RM01073

Brand new stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Connector included
• Rubber grommet included
• All product shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Technical Data

Dimensions :

Interior diameter : 53 mm
Exterior diameter : 114 mm
Thickness : 18 mm
Length of wires stator to grommet : 100 mm
Length of wires grommet to plug : 410 mm

Other specifications :

Number of wires : 3
Number of plugs : 1
Number of pins : 3

Wire to wire resistance :

Alternator : White to White = 0.4 ohms +-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM01073

Fitment:

• 1993-1999 Kawasaki Bayou 400 KLF400B 4x4

Note: Image is for reference only, actual product may vary slightly.
