RMStator Generator Stator RM01080
Customer Ratings

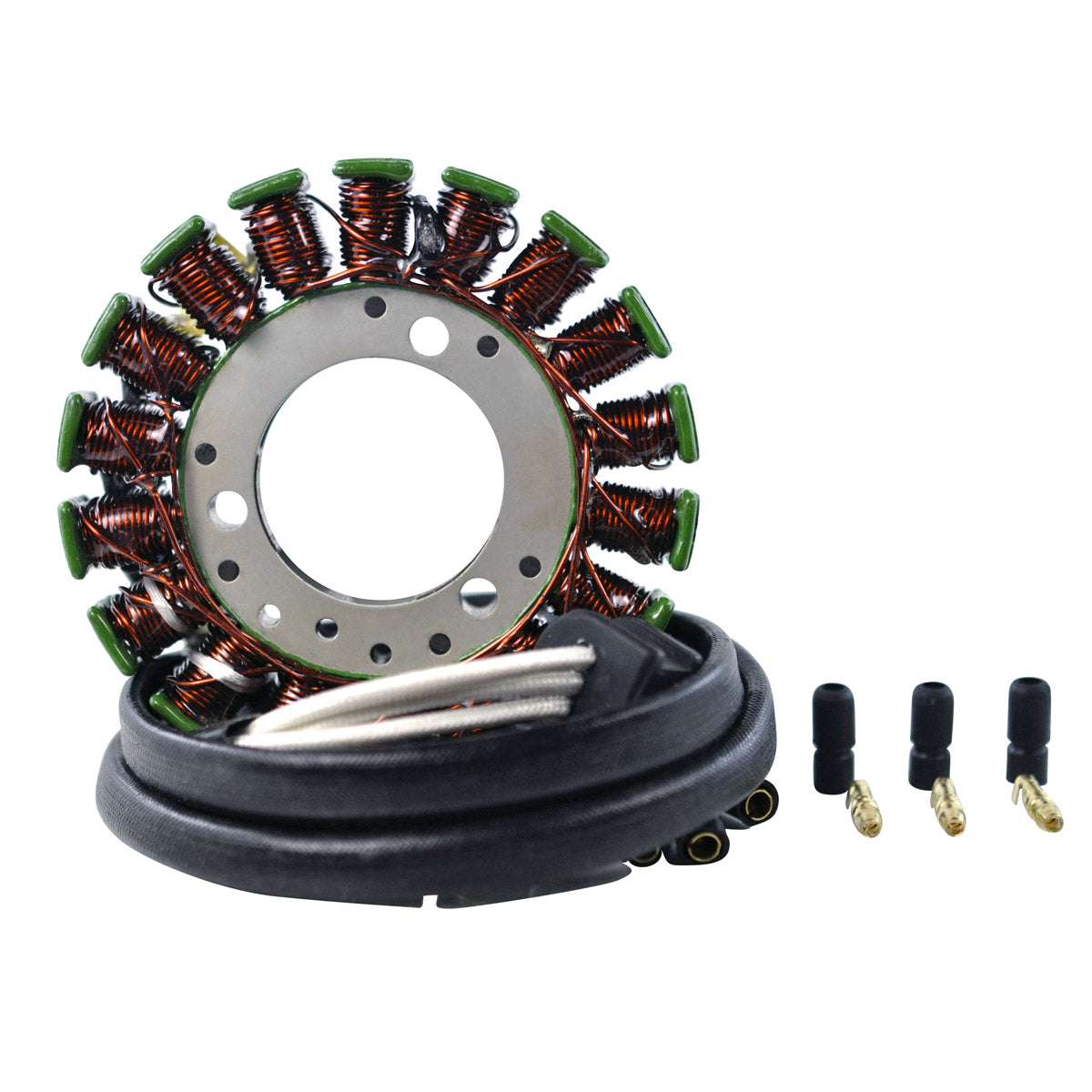

RMStator Generator Stator RM01080
RMStator Generator Stator RM01080
Brand new stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Connector included
- Rubber grommet included
- All product shipped are tested
We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.
*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Technical Data
Dimensions :
Interior diameter : 34 mm
Exterior diameter : 93 mm
Thickness : 13 mm
Length of wires stator to grommet : 200 mm
Length of wires grommet to plug : 820 mm
Other specifications :
Number of wires : 3
Number of plugs : 3
Number of pins : 3
Wire to wire resistance :
Alternator : White between each White = 0.4 ohms +/-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM01080
Fitment:
- 1980-1981 Suzuki GS250T
- 1982-1985 Suzuki GS300L
- 1977-1981 Suzuki GS400X
- 1979 Suzuki GS425
- 1979 Suzuki GS425E
- 1979 Suzuki GS425L
- 1980-1983 Suzuki GS450E
- 1982-1983 Suzuki GS450GA Suzukimatic
- 1985 Suzuki GS450GA Suzukimatic
- 1980-1983 Suzuki GS450L
- 1985-1988 Suzuki GS450L
- 1980-1982 Suzuki GS450ST
- 1981-1983 Suzuki GS450T
- 1988-2000 Suzuki GS500E
- 1977-1980 Suzuki GS550E
- 1979-1982 Suzuki GS550L
- 1982 Suzuki GS550M
- 1980-1982 Suzuki GS550T
- 1981-1982 Suzuki GS650E
- 1977-1979 Suzuki GS750
- 1977-1979 Suzuki GS750E
- 1979 Suzuki GS750L
Note: Image is for reference only, actual product may vary slightly.
