RMStator Generator Stator RM01081

Brand new stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Connector included
• Rubber grommet included
• All products shipped are tested

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Technical Data

Dimensions:
Interior diameter: 35 mm
Exterior diameter: 93 mm
Thickness: 18 mm
Length of wires stator to grommet : 300 mm
Length of wires grommet to plug : 620 mm

Other specifications:

Number of wires:3
Number of plugs: 3
Number of pins: 3

Wire to wire resistance:
Alternator : White between each White = 0.9 ohms +/-20%
Alternator : White to Ground = O.L. ON DISPLAY

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM01081

Fitment:

• 1982 Suzuki GS1000
• 1982 Suzuki GS1000S
• 1983 Suzuki GS1100S
• 1981-1983 Suzuki GS650G
• 1981-1983 Suzuki GS650GL
• 1980-1982 Suzuki GS750E
• 1980-1982 Suzuki GS750L
• 1983 Suzuki GS750S
• 1982-1983 Suzuki GS750T
• 1979-1983 Suzuki GS850G
• 1980-1983 Suzuki GS850GL
• 1983 Suzuki Katana 1100 GSX1100F
• 1983 Suzuki Katana 650 GSX650F
• 1983 Suzuki Katana 750 GSX750F
• 1983 Suzuki Tempter 650 GR650

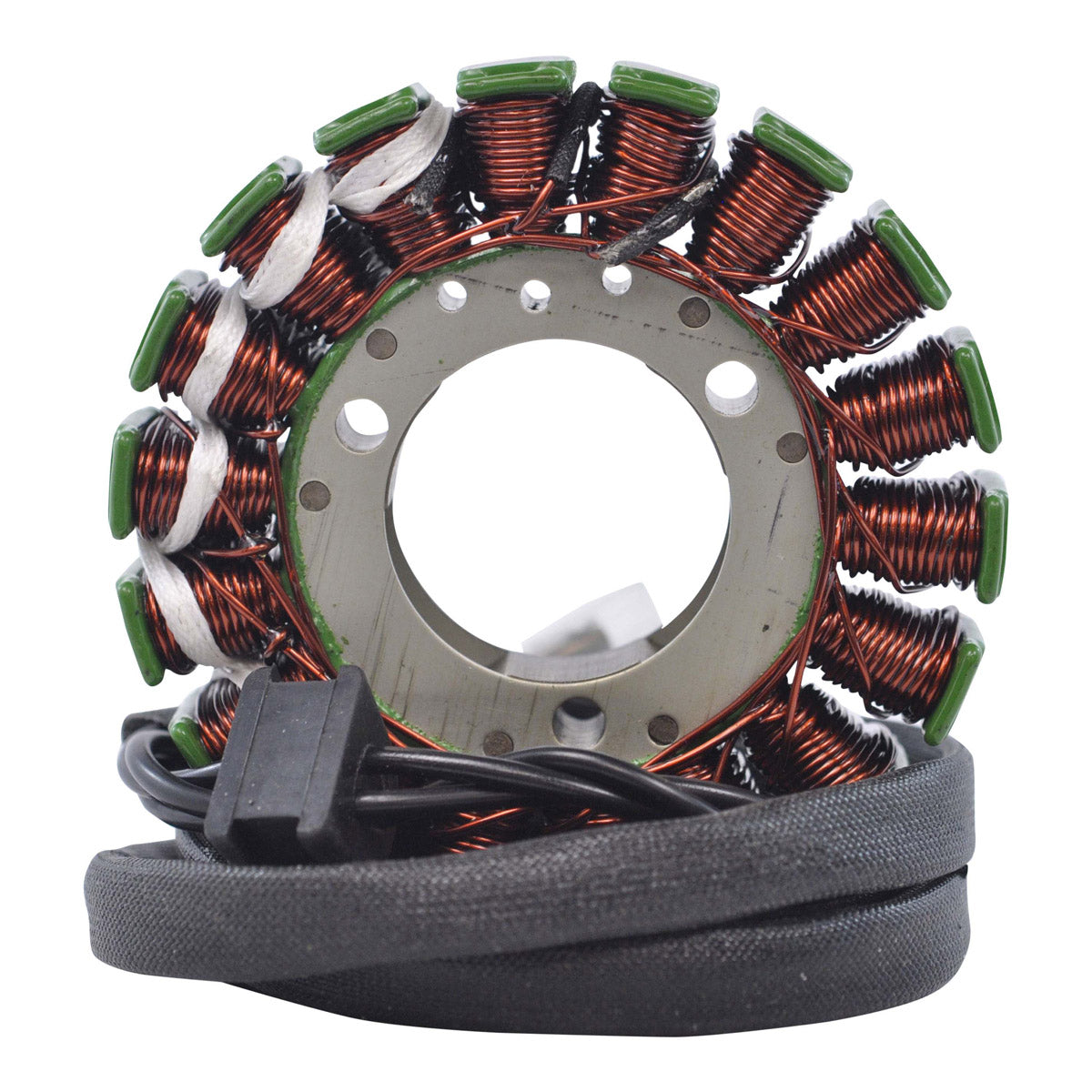

Note: Image is for reference only, actual product may vary slightly.
